HomeAware HA360VB2.1 Quick Start Manual

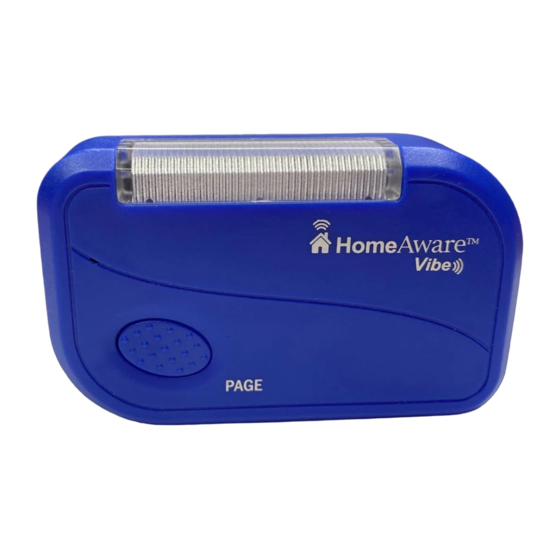

The HomeAware Vibe is a new accessory that connects to
the HomeAware main unit, transmitters, and receivers. This
personal pager will alert you to events like the smoke/CO
detector, the baby crying, the phone ringing and many more.
The HomeAware Vibe will alert you with multiple colored
LED lights, vibration and an audio alert, all patterned to a
specific alert. Simply clip the HomeAware Vibe to your
waistband or slip it into a pocket and enjoy the freedom of
never missing an alert again. In fact the HA360VB1.2 can
also act as an emergency alert notification device in case you
have fallen or have another emergency you need help with.
By simply pushing the PAGE button on the front of the unit it
will send an alert notification to all your HomeAware
receivers and the main unit. Because it is portable and the
increased range due to the HomeAware's mesh network, you
will be safe throughout your house and out.

HA360VB2.1 Features

 Emergency alert button when help is needed. Ultra-high
brightness strobe for maximum visibility.
 Clips easily on waistband and small enough to slip into a
pocket.
 Connects to the HomeAware main unit, transmitters, and
receivers.
 Alert patterns unique to you, vibrate, sound, flashing
lights, or different colors for different alerts.

Battery Features

Note: After you have received your HomeAware Vibe, please
fully charge before first use. A complete charge will take
approximately 3 hours.
 Green – charge complete
 1 Red light – battery low
 2 Red Lights – Battery half charged
If the Vibe is switched to Off the battery indicators lights will
not be lit but the Vibe is still charging.

Low Battery Check

The Vibe will alert you when the battery is getting low.
Depending on what switch or switches that are on, it will be
a single yellow blink, vibration or beep.
TO USE THE HOMEAWARE VIBE HA360VB2.1 AS A RECEIVER
OF THE HOMEAWARE SYSTEM

Linking:

 Press SET UP button on the main unit and the word LINK
will be shown on the display, press ENTER. LINK will begin
blinking.
 Press and hold down the PAGE button on the front of Vibe,
PICK DEVICE will be shown on display of the main unit.
Press the blue MINUTE/down arrow button until the
display reads HELP, then press ENTER. DONE will be
shown on the display when linking is completed.

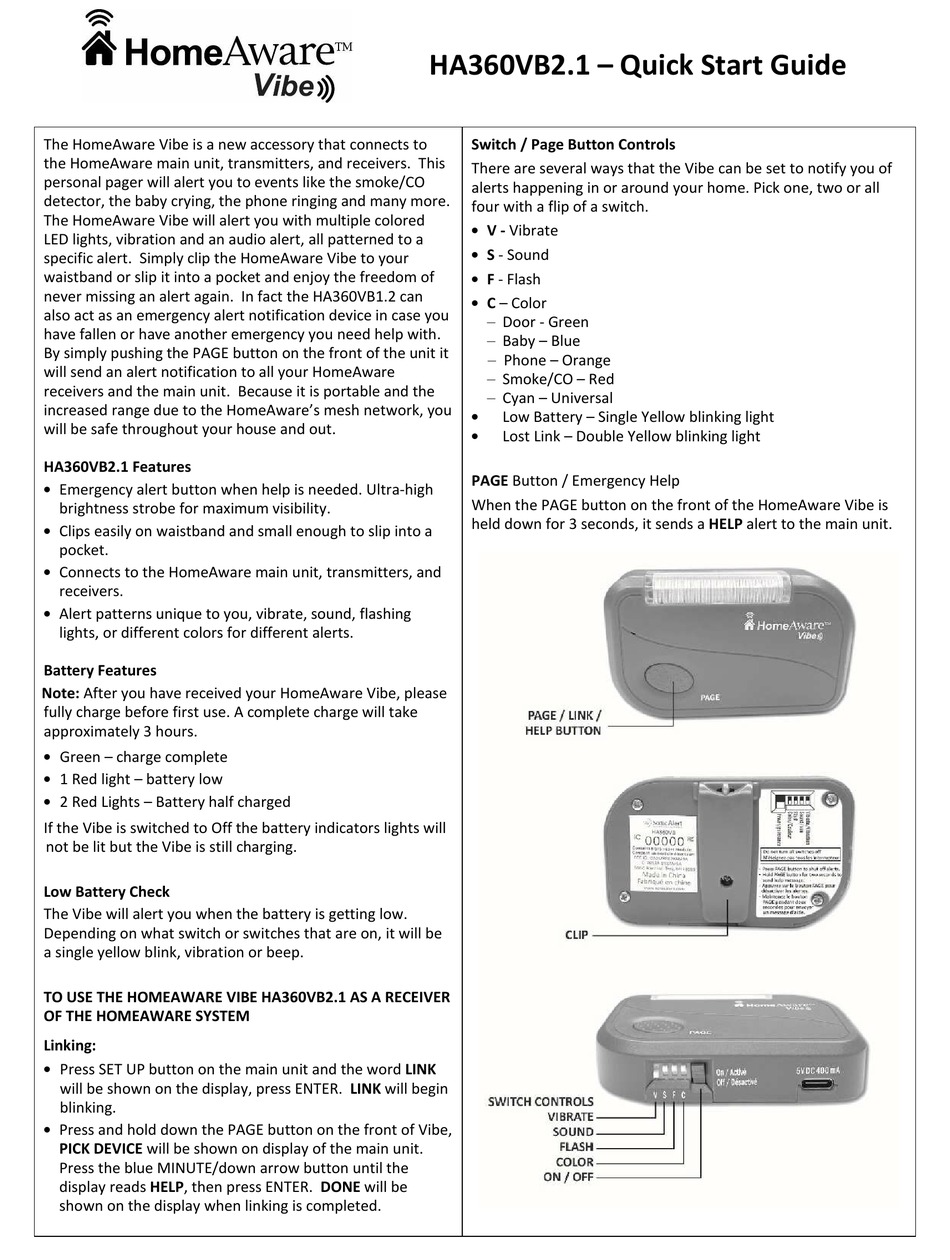

HA360VB2.1 – Quick Start Guide

Switch / Page Button Controls

There are several ways that the Vibe can be set to notify you of
alerts happening in or around your home. Pick one, two or all
four with a flip of a switch.
 V - Vibrate
 S - Sound
 F - Flash
 C – Color
 Door - Green
 Baby – Blue
 Phone – Orange
 Smoke/CO – Red
 Cyan – Universal
Low Battery – Single Yellow blinking light

Lost Link – Double Yellow blinking light

PAGE Button / Emergency Help
When the PAGE button on the front of the HomeAware Vibe is
held down for 3 seconds, it sends a HELP alert to the main unit.
