Please read these instructions carefully and keep for future reference.
SAFETY
● Handle glass with great care. Although the glass is very tough, sharp impacts can damage both the glass
and metal frame.
● Make sure there are no hidden pipes or cables hidden in the wall where you intend to drill.
● Wear safety goggles, shoes and appropriate clothing.
BEFORE INSTALLATION
● Two people are needed to carry out parts of the procedure, lift with care.
● Check that the shower tray is level in all directions. The enclosure will not sit correctly on an uneven surface.
If uneven, the wall channels may not fit and the doors may not shut correctly.
● The shower tray and the enclosure must match in size. Attempting to fit the incorrect size of enclosure to the
shower tray will result in water leaks.
● The enclosure should be fitted on tiled walls which are sealed with waterproof grout.
There must be a good silicone seal between the rim of the shower tray and the wall.
● Always check very carefully that components are vertical.
Equipment needed:
Drill, 6.5mm Masonry Bit, 4.5mm & 3mm Metal Bits (general), Crosshead Screwdriver, Right Angle, Fine Tooth Saw,
Spirit Level, Pencil, Scissors, Silicone Sealant, Tape Measure, Masking Tape.
Note: The screws and wall plugs supplied are for masonry walls. For lightweight walls i.e. stud partition, plasterboard etc,
use the correct type of fixings.
CUSTOMER CARELINE 01746 713410
SLIDING DOOR
Incorrect fitting will invalidate the guarantee.
X
GB 71811 / Issue 3 / 15

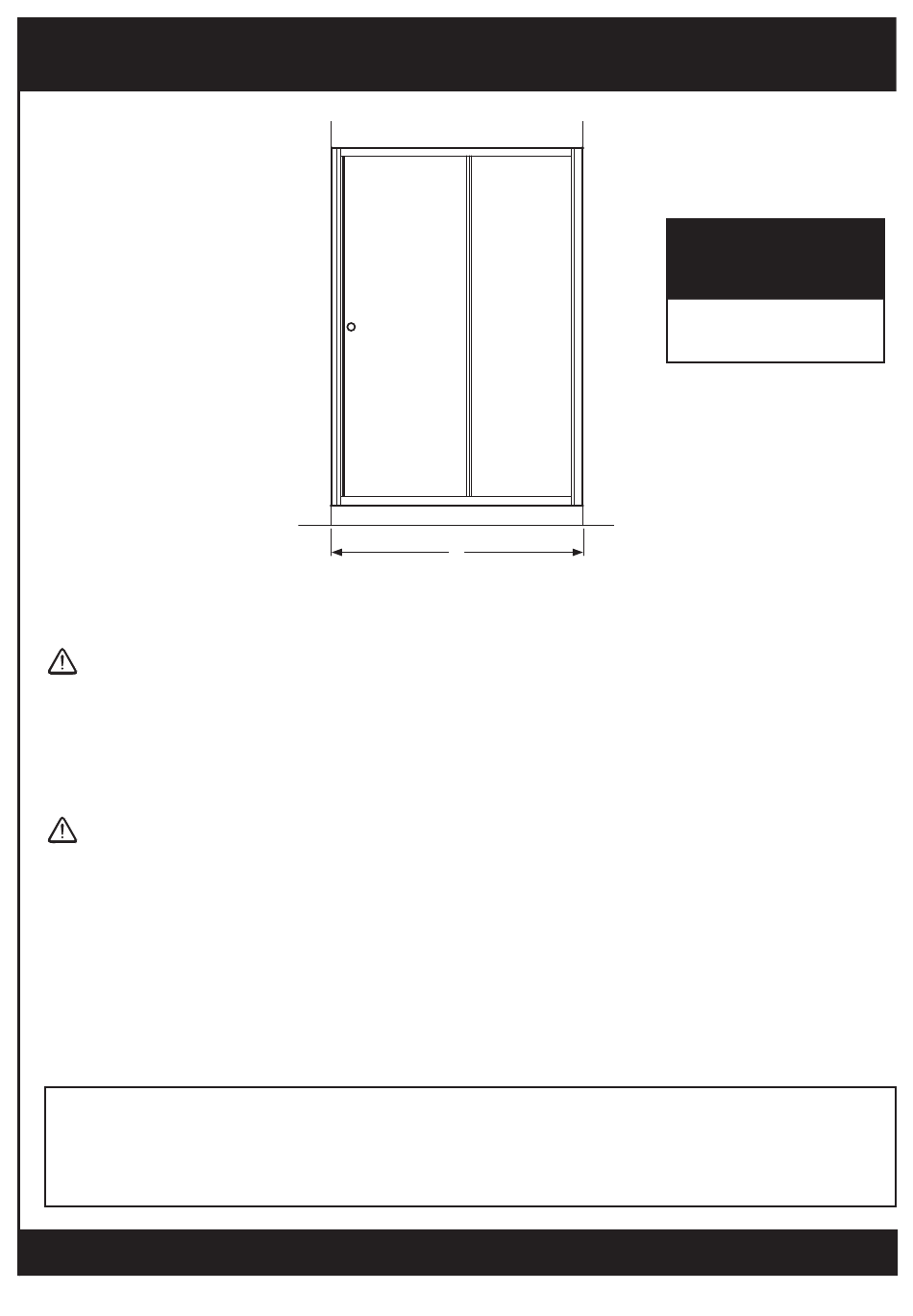

DIMENSIONS
Check the enclosure size in
the table below matches the
showertray installation.
1000 Door X = 965 - 1005mm
1200 Door X = 1165 - 1205mm
Advertisement
Table of Contents
Summary of Contents for Coram Showers 1000 Door X
- Page 1 Check the enclosure size in the table below matches the showertray installation. 1000 Door X = 965 - 1005mm 1200 Door X = 1165 - 1205mm Please read these instructions carefully and keep for future reference. Incorrect fitting will invalidate the guarantee.
- Page 2 PN10675 1000 RAIL - PN11148 Check contents of pack before installation. If anything is 1200 RAIL - PN11149 missing, contact our Customer Careline for assistance. CUSTOMER CARELINE: 01746 713410 PN3230 PN60518 PN80665 Bottom PN3225 PN10675 wheels PN60511 32mm PN60524 PN60521 10mm PN4748 PN40260...
- Page 3 PN80665 32mm Hole 32mm 32mm PN80665 Inside 32mm Attach horizontal rails to top and bottom of the fixed panel using 4 x 32mm screws. Important: The rails are 'handed' in pairs, the hole in the rails must be on the inside next to the 'fixed' vertical channel. Attach magnetic profile (PN80665) to horizontal rails using 4 x 32mm screws.
- Page 4 100mm max ø 4.5 100mm max a: Drill holes in both wall channels (PN10675) at points shown using a 4.5mm drill bit, through the middle and in the groove. b: Ensure the shower tray is level in all directions. IMPORTANT: Clean the tray and seal the gap between the tray surface and tiles. It is important that the tray is sealed right up to the tray edge so that the bottom of the wall channel is sealed.
- Page 5 Inside Inside From inside 32mm ø 3 ø 3 10mm 10mm a: Place door in position on the tray, fix wall channels to walls using 32mm screws and screw caps. b: Check door is centrally positioned, perfectly vertical and square in the frame. Drill inside of wall channels using 3mm drill bit in the two lower positions shown.
- Page 6 PN60517 PN60517 IMPORTANT Ensure that the coated side of the glass is on the inside of the door. Bottom 'plunger wheels' are shown as an example. PN60518 Outside Inside face of door PN60518 Inside PN60518 Important: Ensure that the coated side of the glass is on the inside of the door. Attach the wheels to the door: Adjuster wheels (PN60517) at the top and plunger wheels (PN60518) at the bottom.
- Page 7 Top of door From inside Bottom of door From inside the enclosure, position the top wheels into the top rail, push down the 'plungers' on both bottom wheels and position into the bottom rail. Adjust from outside From inside Door adjustment: The wheels at the top of the door may need adjusting so that the door slides freely and the magnetic door seal meets evenly with magnetic frame profile when the door is closed.
- Page 8 Please note: There has been a glass coating applied to this product, use a squeegee to remove water and debris. Periodically check all fixings and tighten if necessary. CORAM SHOWERS LTD Stanmore Industrial Estate, Bridgnorth, Shropshire WV15 5HP, UK • Tel: 01746 766466 • Fax: 01746 764140 • www.coram.co.uk...
