Do-All Outdoors TL100 Assembly

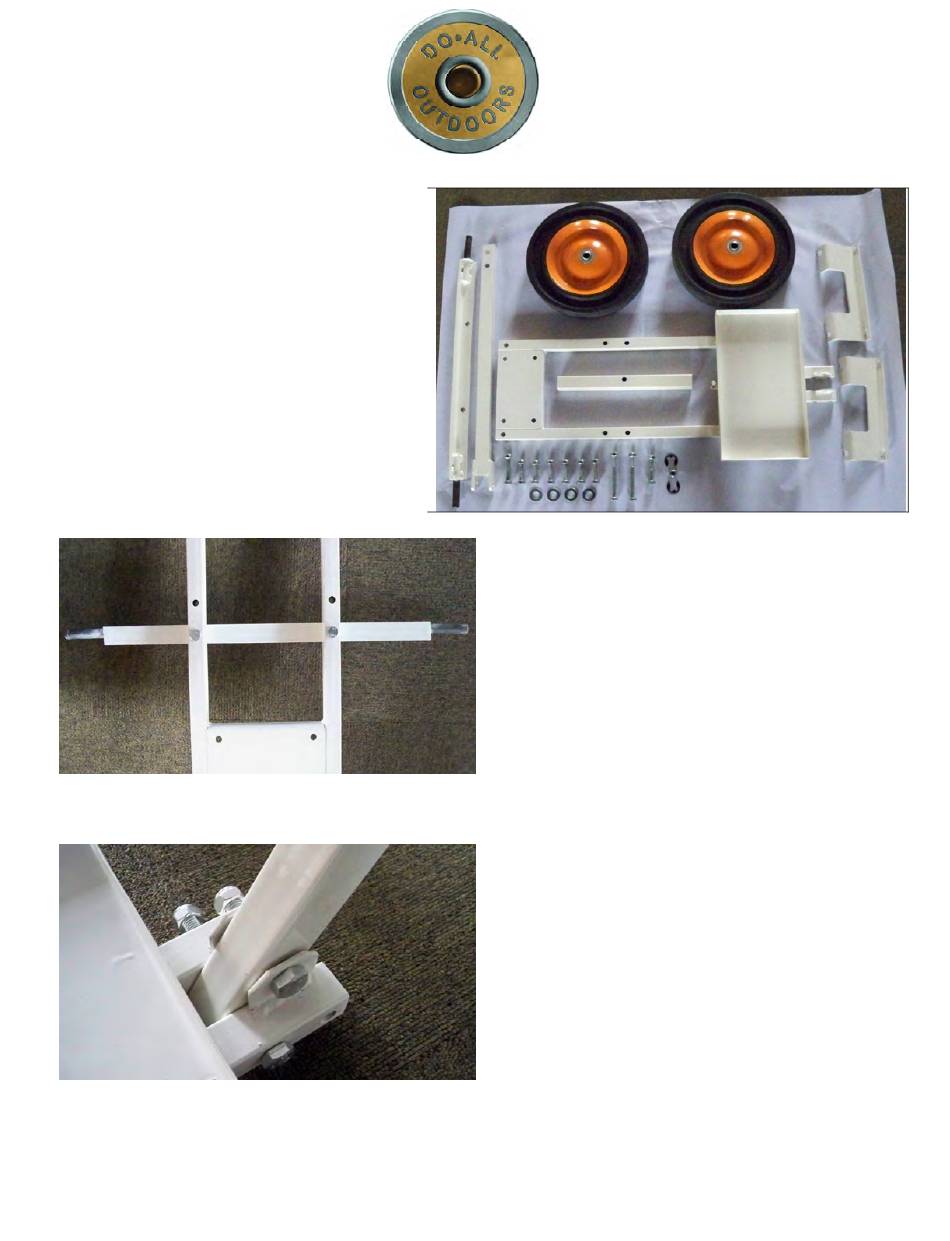

Main Frame - 1pcs

Wheel Axle - 1pcs

Transition Piece - 1pcs

Handle - 1pcs

Wheel - 2pcs

Wobbler brackets - 2pcs

Bolts M10X45 - 6pcs

Bolt M10X60 - 1pcs

Bolt M10X50 - 1 pcs

Bolts M10X95 - 2pcs

Nuts - 11pcs

Spacer - 4pcs

Locking Washers - 2pcs

Align holes in top of wheel axle with the two holes in frame closest to front trap platform secure with 2

M10X45 bolts.

To attach pulling arm: Insert end of arm between posts behind battery tray. Insert M10X50 bolt to

attach arm between tabs locking with nut on other side. Insert M10X95 (long) bolts into posts, locking

on the other side with nuts. Bolt closest to battery tray should go through the arm. Back bolt will be

used to lock arm in straight position if limo is going to be pulled by an ATV.

TL100 Assembly

Table of Contents

Need help?

Do you have a question about the TL100 and is the answer not in the manual?

Page 1 TL100 Assembly Main Frame - 1pcs Wheel Axle - 1pcs Transition Piece - 1pcs Handle - 1pcs Wheel - 2pcs Wobbler brackets - 2pcs Bolts M10X45 - 6pcs Bolt M10X60 - 1pcs Bolt M10X50 - 1 pcs Bolts M10X95 - 2pcs...
Page 2 Finally attach locking washers to outside of the wheels. To attach any of the Do-All Outdoors Automatic traps to the Trap Limo, take out bolts on bottom of your trap and remove the legs. Line up the holes on the bottom of the trap to the holes on the platform on the front of the limo and reinsert leg bolts through the limo into the trap.
Page 3 To attach AWK45 Wobbler Kit: Using M10X45 bolts attach first bracket to front of trap platform then place the base of the AWK45 under the curved edge of the bracket and tighten the two bolts on the AWK45. then attach second bracket to the holes behind the axle and tighten the two bolts on the back of the AWK45 wobbler kit tightening them to the back bracket.
