Paxton Access 351-110-US Manual

03/14/2012
Ins-40077-US TOUCHLOCK K and KP series - UL
Technical Support
1.800.672.7298
Technical help is available:
Documentation on all Paxton products can be found on our web site - http://www.paxton-access.com/

Suitability

Security sensitive doors
Wet environments

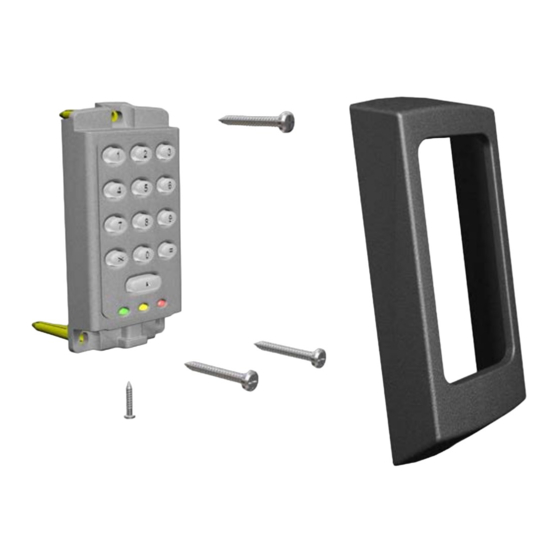

Mounting

This keypad is designed to provide a Clock and Data output for Paxton (Net2 / Switch2).
The KP series readers will also read Paxton tokens (Hitag2) and EM4100 tokens.
K75 Screw connector option
NOTE: The unit should be mounted
in conjunction with an electrical
backbox to achieve the required
clearance for the connector.
If an adaptor plate (310-750-US)
is fitted, the mountings on the
backbox can also be used.
This unit is for Indoor use only
NOTE:
The Stainless Steel version installs and operates in exactly the same manner.
Monday - Friday from 02:00 AM - 8:00 PM (EST)
For instructions in alternative languages - http://paxton.info/1000
Illustrations in this instruction show the standard keypad.
supportUS@paxton-access.com
Mounted on metal surface
Readers mounted together
Paxton
K KP
12 inches
between readers
PAGE 1
