MAG TOOLS GG63HD Operating Manual

SPECIFICATIONS
Pump Ratio (max): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40:1
Output per Stroke: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .288 ml/min
Pneumatic Inlet Pressure (min): . . . . . . . . . . . . . . . . . . . . . . . 40 psig
Pneumatic Inlet Pressure (max): . . . . . . . . . . . . . . . . . . . . . . . 100 psig
Grease Output Pressure: . . . . . . . . . . . . . . . . . . . . . . . . . . . 3,800 psig
Grease Reservoir Capacity: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 oz
Operating Temperature Range: . . . . . . . . . . . . . . . . . . . . . . . 14˚-104˚
Weight (empty): . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 .5 lbs
Lubricant up to NLGI: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . #2 Grease
Pneumatic Port Inlet: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPT
Grease Port Outlet: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/8" NPT
WARNING
FOR YOUR SAFETY AND TO PREVENT INJURY:
READ THIS INSTRUCTION MANUAL CAREFULLY AND UNDERSTAND ALL INFORMATION BEFORE
OPERATING THIS TOOL .
ALWAYS WEAR SAFETY EYE & EAR PROTECTION (USERS & BYSTANDERS) .
DO NOT EXCEED 40 psig WITH HOSE OR 100 psig WITH SOLID EXTENSION . TO DO SO MAY CAUSE
PERSONAL INJURY .
EXTREME PRESSURE MAY CAUSE WHIP HOSE TO BURST . USE ONLY APPROVED HOSES AND FOLLOW THE
HOSE INSTRUCTIONS AND WARNINGS .
THIS AIR OPERATED GREASE GUN CAN DEVELOP HIGH PRESSURES - UP TO 3,800 psig . USE SAFETY
GLASSES AND GLOVES WHILE OPERATING THE GUN . KEEP HANDS CLEAR OF THE EXPOSED RUBBER
PORTION OF THE HOSE WHILE OPERATING THE GUN WITH HOSE .
IF FLUID APPEARS TO PENETRATE THE SKIN, SEEK IMMEDIATE MEDICAL ATTENTION .
DO NOT TREAT AS A SIMPLE CUT .
BE SURE THE TRIGGER IS NOT DEPRESSED WHEN ATTACHING THE GUN TO AN AIR INLET HOSE .
AVOID ACCIDENTAL STARTING .
HOLD THE HOSE ONLY BY THE METAL SPRING GUARDS ON THE END .
DO NOT ALLOW THE HOSE TO KINK . DO NOT BEND THE HOSE IN A TIGHT RADIUS .
REPLACE THE HOSE AT FIRST SIGN OF WEAR, KINK OR DAMAGE TO THE OUTSIDE JACKET .
USE ONLY HIGH PRESSURE GREASE GUN HOSE AS A REPLACEMENT .
THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH
DEFECTS OR OTHER REPRODUCTIVE HARM . WASH HANDS THOROUGHLY AFTER HANDLING .
FAILURE TO HEED THESE WARNINGS MAY RESULT IN SERIOUS OR FATAL PERSONAL INJURY, PROPERTY
DAMAGE OR BOTH .
WARNING: This product can expose you to chemicals including nickel, which
is known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
PARTS BREAKDOWN/OPERATING MANUAL
1

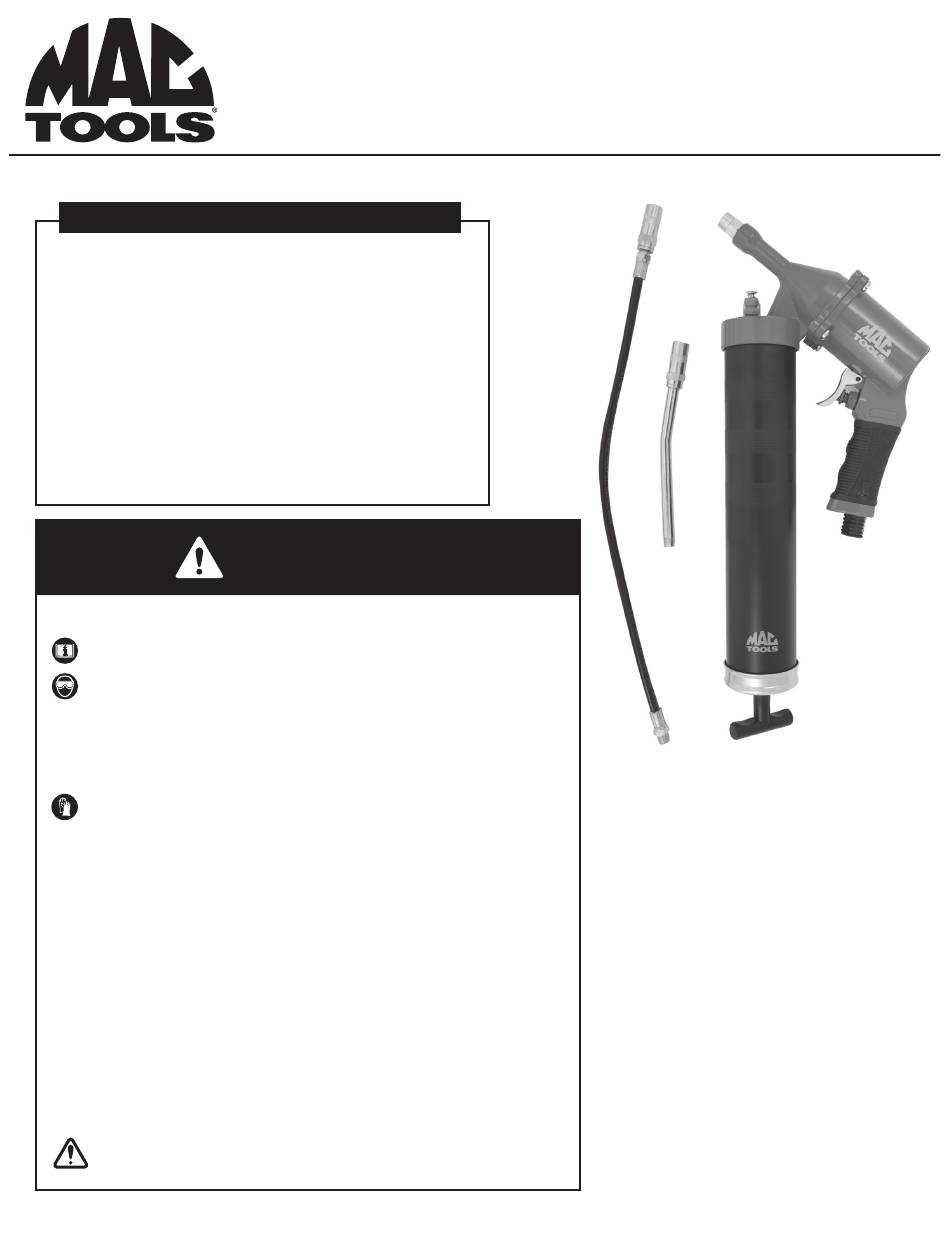

Model GG63HD
Continuous Shot Air Grease Gun
Continuous Shot Air Grease Gun is
a fully pneumatic powered tool . The
gun is designed for lubrication of
grease points in automotive and truck
applications . The gun has a single
action pump that delivers grease each
time the trigger is depressed and the
plunger moves forward .
07/06/18
