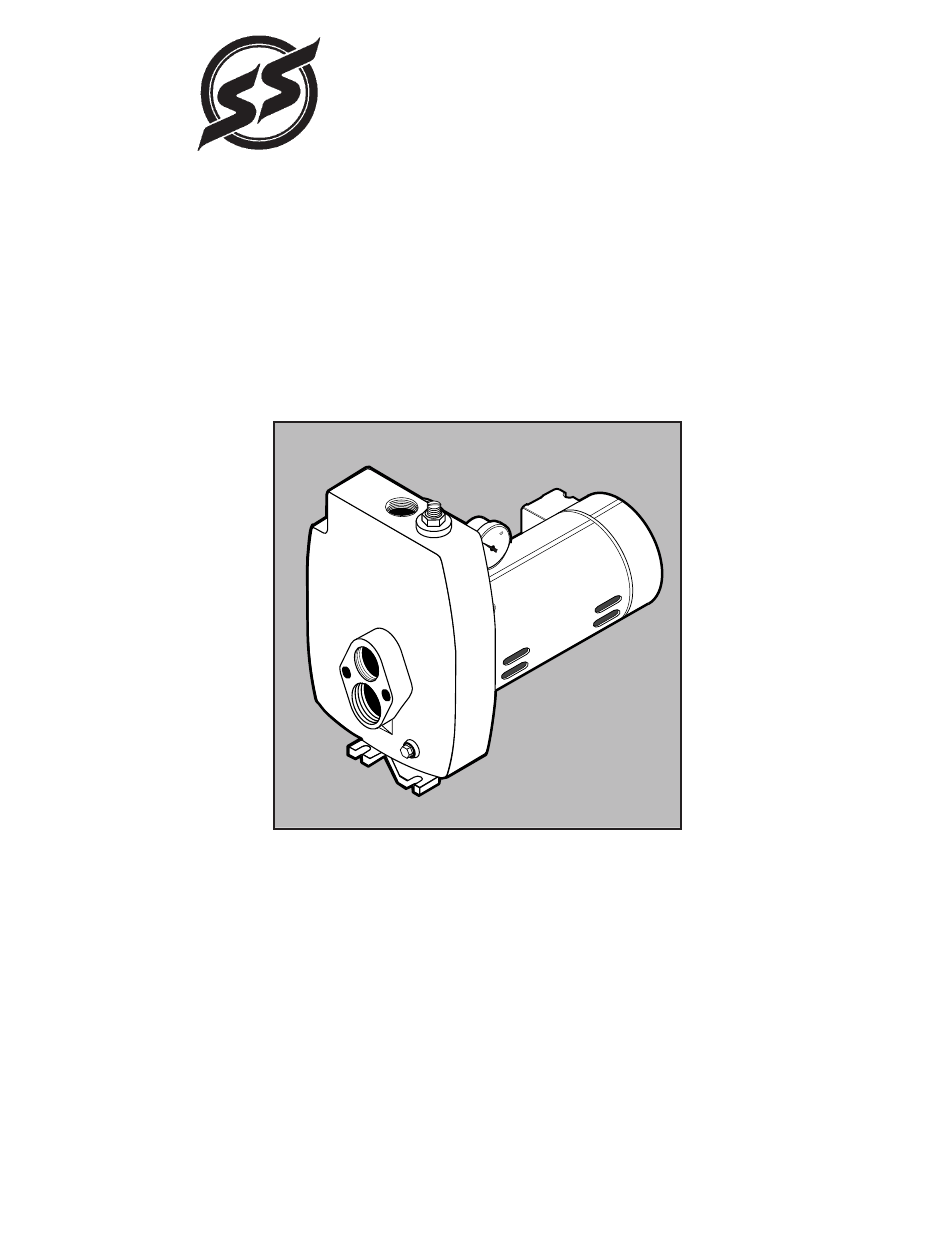

- Page 1 SOUTHERN STATES OWNER’S MANUAL Convertible Deep Well Jet Pump 2760 0197 Installation/Operation/Parts Southern States Cooperative P.O. Box 26234, Richmond, VA 23230 SS313 (Rev. 7/15/05)
-
Page 2: General Safety
Safety READ AND FOLLOW ELECTRICAL SAFETY SAFETY INSTRUCTIONS! Capacitor voltage may be hazardous. To dis- charge motor capacitor, hold insulated handle screwdriver This is the safety alert symbol. When you see this BY THE HANDLE and short capacitor terminals together. symbol on your pump or in this manual, look for Do not touch metal screwdriver blade or capacitor termi- one of the following signal words and be alert to the... -
Page 3: Table Of Contents
Repair Parts .......................14 LIMITED WARRANTY Southern States warrants to the original consumer of the products listed below, that they will be free from defects in material and workmanship for the Warranty Period from the date of installation as noted. Product... -
Page 4: Replacing An Existing Pump
Replacing an Existing Pump ping omitted Suction DEEP WELL r clarity (Larger) Discharge Port Hazardous voltage. Disconnect power to pump before working on pump or motor. Drive (Smaller) Step 1. Drain and remove the old pump. Check pipe for scale, lime, rust, Port etc., and replace it if necessary. -
Page 5: New Shallow Well Installation
New Shallow Well Installation To Household WELL POINT INSTALLATION (Figure 4) Water System Step 1. Install ejector kit FP4855 (kits are sold separately). Follow the Relief Valve instructions provided with the kit. Align the venturi with the top Priming Port Control Valve hole on the front of the pump (see Figure 3). -
Page 6: Installation For Surface Water
New Shallow Well Installation strain the pump body, and so that it slopes slightly upward from the well to the pump (high spots can cause air pockets which can air lock the pump). Seal the suction pipe joints with teflon tape or a teflon based pipe joint compound. -
Page 7: New Deep Well Installation
New Deep Well Installation To Household 4" OR LARGER WELL (Figure 8) Water System Step 1. Assemble ejector kit FP4800 (sold separately). See Figure 8. Follow Relief Valve Priming Port the instructions included with the kit in order to match the nozzle and venturi to your well conditions. -
Page 8: Discharge Pipe And Pressure Tank Connections
Discharge Pipe and Pressure Tank Connections To Household PRE-CHARGE TANK CONNECTION (Figure 10) Water System Relief Step 1. Install a close nipple and a tee in the pump discharge port (see Valve Priming Port Figure 10). The pipe size must be at least as large as the discharge Control Valve port. -
Page 9: Electrical
Electrical Disconnect power before working on pump, motor, pressure switch, or wiring. MOTOR SWITCH SETTINGS NOTE: 1/2 HP motors are wired for 115 volts only, and have no motor wiring to change. Your motor terminal board (located under the motor end cover) should look like one of those below. If the motor can operate at either 115 or 230 volts, it is set at the factory to 230 volts. - Page 10 0 - 50 51 - 100 101 - 200 201 - 300 301 - 400 401 - 500 Model Volts AWG WIRE SIZE (mm LCSS1-02 14 (2) 14 (2) 12 (3) 10 (5.5) 8/ (8.4) 8 (8.4) LDSS1-02 115/230 9.4/4.7...
-
Page 11: Preparing To Start The Pump - Deep Well
Preparing to Start the Pump – Deep Well Open control valve as far as possible Never run pump dry. Running pump without water may cause and fill pump and piping through priming port or priming tee. pump to overheat, damaging seal and possibly causing burns to persons handling pump. -
Page 12: Preparing To Start The Pump - Shallow Well
Preparing to Start the Pump – Shallow Well Open control valve as far as possible Never run pump dry. Running pump without water may cause and fill pump and piping through priming port or priming tee. pump to overheat, damaging seal and possibly causing burns to persons handling pump. -
Page 13: Troubleshooting
Troubleshooting SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION Motor will not run Disconnect switch is off Be sure switch is on Fuse is blown or circuit breaker tripped Replace fuse or reset circuit breaker Starting switch is defective DISCONNECT POWER; Replace starting switch Wires at motor are loose, Refer to instructions on wiring (Page 9). -
Page 14: Repair Parts
Repair Parts 18 19 10 11 Model and HP Part LCSSI-02 LDSSI-02 Description Qty. 1/2HP 3/4HP Motor - 60 Cycle AS100CL A100DLL Slinger 17351-0009 17351-0009 Seal Plate N3-9 N3-9 Seal Plate Gasket N20-35 N20-35 Shaft Seal U109-6A U109-6A Impeller J105-40P J105-42P Diffuser L1-25P...
