Summary of Contents for HANG KLD-3

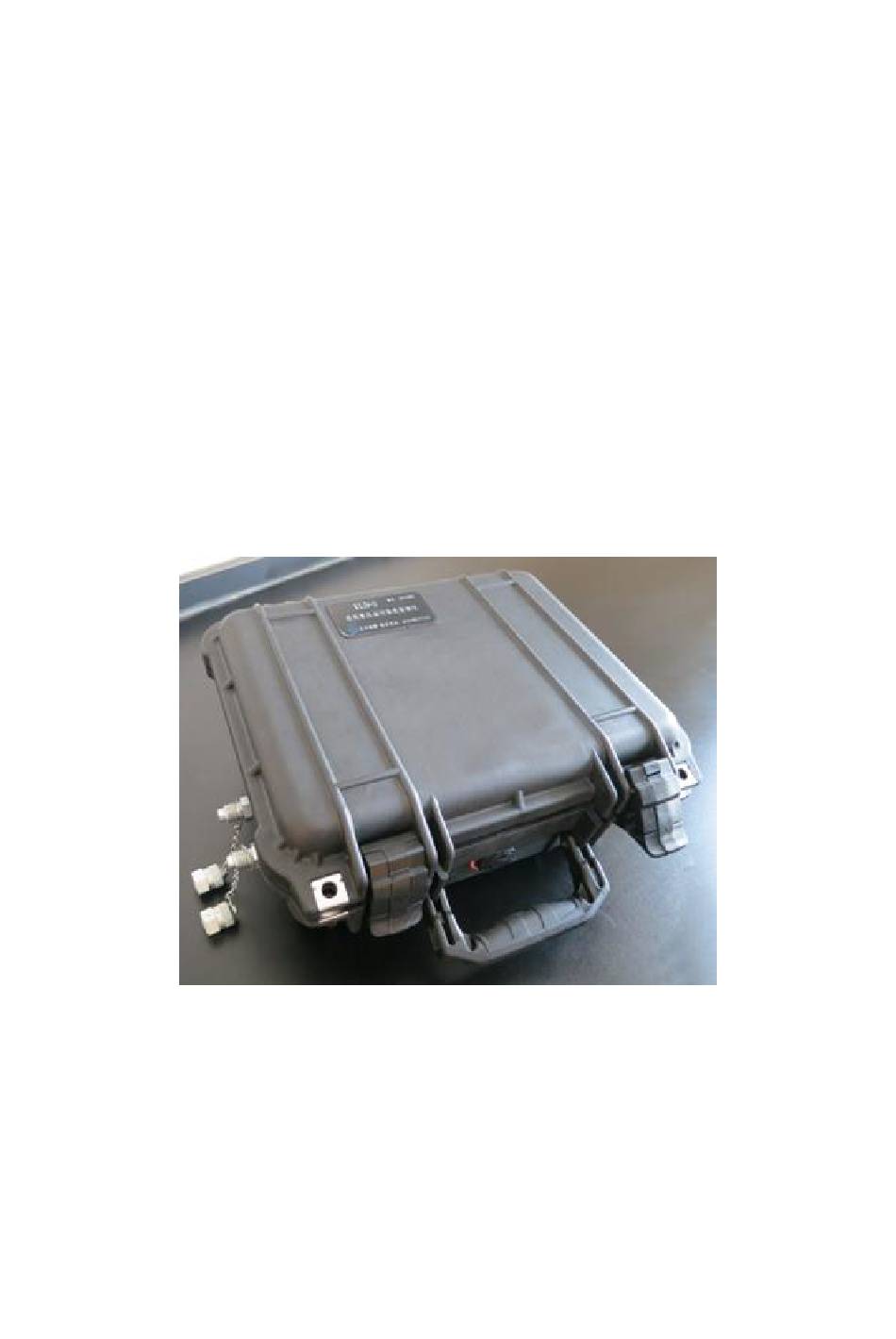

- Page 1 User's Manual Oil Pollution Detector KLD-3 Please read instruction manual carefully before use！...
- Page 2 Kindly Reminder This operation manual instructs how to safely and correctly operate the KLD-B series oil contamination detector in detail. Make sure you have understood the content of the operation manual correctly, and operate the product according to the described procedure. Please contact your account manager in case of any questions when operating.
-
Page 3: Table Of Contents
Contents 1 Product Introduction................4 1.1 Brief introduction................4 1.2 Technical Data................4 2 Operation....................6 2.1 Hose Connection................6 2.2 Instrument Start................7 2.3 Measuring interface..............7 2.4 Instrument Rinsing............... 8 2.5 Battery Recharging..............8 3 Printer...................... 9 4 Trouble Shooting..................9 5 Notes..................... -
Page 4: Product Introduction
1 Product Introduction 1.1 Brief introduction New type hydraulic oil pollution online detector KLD - 3, it is a smart, lightweight and effective confidential laser oil pollution analysis instrument. It has many features, can report the condition of hydraulic and lubrication system, making the maintainers in early intervention in order to prevent the pollution of hydraulic system components of wear or damage, which not only reduce the repair costs to minimum and reduced the total equipment downtime,... - Page 5 Battery Environmental temperature: 15 ℃ to 40 ℃ The oil temperature: 0 ℃ ~ 55 ℃ (24 hour) short-term < 85 ℃ (10 min) Storage temperature: - 20 ℃ ~ 60 ℃ Wet degree: relative humidity 20 ~ 85% RH, without condensation;...
-
Page 6: Operation
2 Operation This chapter describes to instruct how to use the KLD-3 to determine the level of oil contamination, connect hoses, software operation, hose flushing, etc. power switch recharge socket Owe electric Press to print printer Pollution shows oil interface Chart 3.0 Product panel... -
Page 7: Instrument Start
Chart 3.1 Pipeline connection diagram 2.2 Instrument Start Place the instrument on a dry flat surface. Connect the hoses as instructed in chapter 3.1. Open the cover, plug in the power cable, turn on the power switch to start the instrument. Please see below for details. -
Page 8: Instrument Rinsing
Chart 3.3 the main measuring interface In the data display interface, sampling period can be shown as well as the working circuit temperature, current, voltage, and ISO4406 NAS1638 corresponding standard level. Users can observe the current different standards according to the need of test information. Sampling period is 6 seconds (default). -
Page 9: Printer
external power supply and then turn on the power switch button charging for 8 to 12 hours. This system standard power supply is for indoor usage, suggesting that keep the instrument shutting down when charging. Please remove the charger in time when well charged. -
Page 10: Notes
the operator can perform by themselves. For other problems, please contact our engineers for further assistance. Resolution for Fault Simple Fault Check if the power cable is plugged in and Unable to start the instrument power turned on. Unable to print Check to see if the printer is short of paper. -
Page 11: Packing List
affect the measurement result. Please don't place the instrument in a strong mechanical vibration platform or device. 6 Packing list Product standard packing list Item Specifications Online oil contamination ISO4406、NAS1638 detector Pressure hose M16*2 on both sides, 1.5m Imported PT type M16x2 pressure connector pressure joint Electronic instruction... - Page 12 2000 4000 8000 1425 16000 2850 32000 5700 1012 64000 11400 2025 12800 22800 4050 25600 45600 8100 1440 51200 91200 16200 2880 10240 18240 32400 5760 1024 20480 36480 64800 11520 2048 40960 72900 12960 23040 4096 SHEET 2 Standard table of ISO 4406 contamination class (Unit: particle quantity/100ml) Particle quantity per...
- Page 13 130000 250000 64000 130000 32000 64000 16000 32000 8000 16000...
- Page 14 BEIJING HANG FENG KE WEI EQUIPMENT TECHNOLOGY CO.,LTD. Tel:：+86-10-82866783-8185 Website: www.hangf.com Email: sales@hangf.com Fax：+86-10-82600379 Post Code：100141 Address: NO.6 Dacheng Rd, West 4 Ring, Fengtai District, Beijing.
