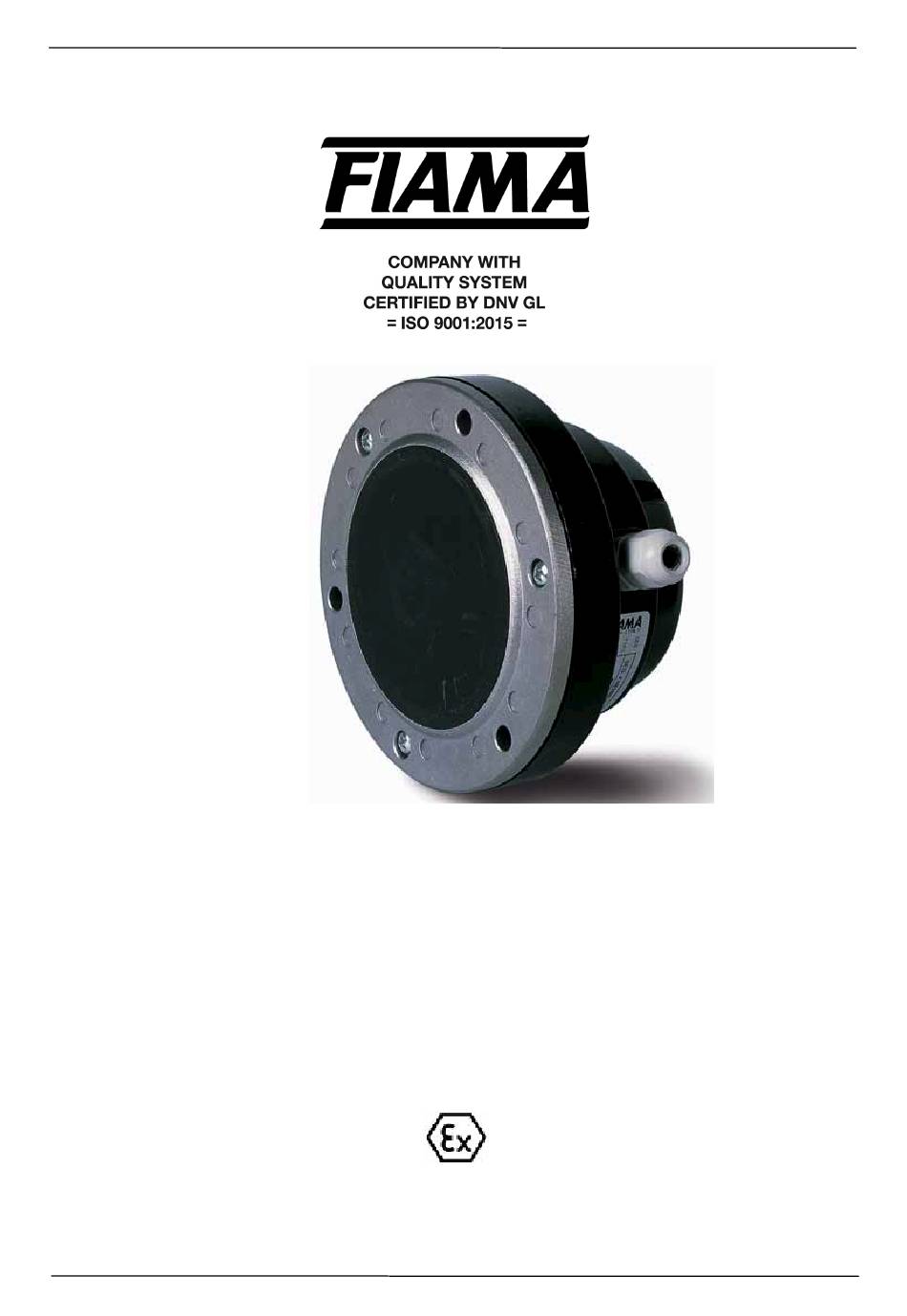

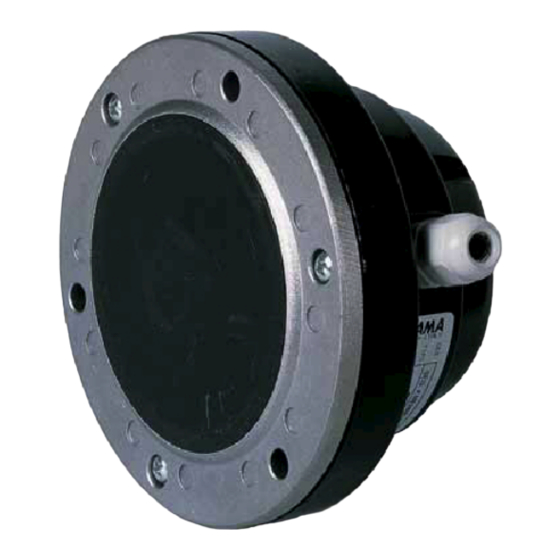

- Page 1 SM85.ATEX ATEX level switch USE AND MAINTENANCE MANUAL MEMBRANE LEVEL SWITCH “SM85.ATEX” Date: 07/2018 SM85.ATEX_ing_rev05.doc page 1 of 6...
- Page 2 Do not use hydrocarbon solvents (trichloroethylene, petrol, diluents, etc.). Repairs should be done exclusively by the FIAMA technical assistance center. For any type of technical assistance please contact the manufacturer indicating the data on the identification plate, the approximate working hours, and the type of fault.
- Page 3 The protection mode which is considered is Intrinsic Safety “ia” which is based on the use of a barrier with intrinsic safety, external to the unit, which is normally not supplied by FIAMA and is normally selected and provided by the end user.
- Page 4 SM85.ATEX ATEX level switch Interconnecting cables The low values of voltage and tension which are present in the instrinsic safety circuit allow the use of cables which are normally used for field instrumentation, as long as the capacity and inductance of these is correctly taken into account in the calcultations regarding system safety.
- Page 5 SM85.ATEX ATEX level switch Marking: II 1/2 D Ex ia IIIC T85°C Da IP65 -10°C < Tamb < +80° 2460 Ui = 30V Ii = 100mA Pi = 3W Ci = negligible Li = negligible Dimensions Flangia di fissaggio Fixing flange...
- Page 6 (+39) 0521-672537 email: info@fiama.it web: www.fiama.it FIAMA SRL is not responsible for damage to persons or equipment deriving from any tampering or incorrect use or use which is not conforming with the characteristics of the unit. Date: 07/2018 SM85.ATEX_ing_rev05.doc...
- Page 7 Via G. di Vittorio, 5/a 43016 San Pancrazio PR, ITALY Tel. + 39 0521 67 23 41 - Fax + 39 0521 67 25 37 Cod. Fisc. e Part. IVA 02046950347 E-mail : info@fiama.it Internet: www.fiama.it DICHIARAZIONE DI CONFORMITÀ EU EU Declaration of Conformity F.I.A.M.A.
