Outdoor Plus OPT-ESTOPTM Owner's Operation And Installation Manual

60
PUSH TO STOP
TURN TO START
•
Read these instructions carefully. Failure to follow these instructions completely could damage the product or
cause a hazardous condition.
•
Check the ratings given in the instructions and on the product your installing to make sure the E-Stop Gas
Timer is suitable for your application. See description below.
•
Installer must be a trained, experienced service technician or gas plumber.
•
After installation is complete, check out product operation as provided in these instructions.

DESCRIPTION

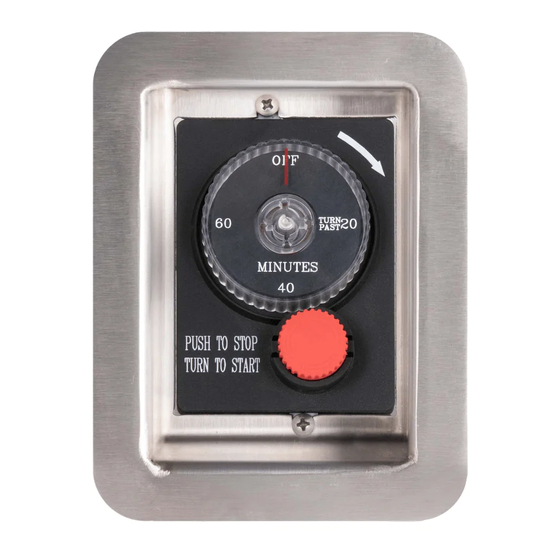

The 1-Hour Gas Timer with E-Stop is an emergency shut-off, mechanical timer, and manual shut-off gas valve
designed to be installed on the inlet side of a gas appliance to enable the user to control the time gas is allowed to
flow to a gas appliance. This is a mechanical timer (no batteries or power required) that has the ability to control
gas flow for 1-hour (60 minutes). In addition, both models have an emergency shut-off (red knob) that enables the
user to quickly and easily shut the gas completely OFF, should the need arise.
The 1-Hour Gas Timer with E-Stop body is 4-inches high x 2 ⅞ -inches wide x 2 ⅛ -inches deep and can replace a
manual shut-off valve and meet local code requirements as the accessible shut-off valve. It can be use for
multiple applications (indoor or outdoor) from gas fire pits, gas grills, gas logs, gas torch lights, etc., wherever a
shut-off valve is a requirement or a specified by a customer.

SPECIFICATION

Pipe Size: ½" NPT (2) inlets and (2) outlets
CSA Rated Capacity: 165,000 Btu/Hr at 1" Pressure Drop (NG)
Timer Accuracy: 60 Min. +/- 15% or 2.5 Hrs.+/- 15%
Multiple Mounting Holes: Uses 3/16-24 machine threads
CSA Certified: Tested to ANSI Z21.21; CSA 6.5
www.TheOutdoorPlus.com
OFF
TURN
20
PAST
MINUTES
40
This product can expose you to Chromium, which is known to the state of
California to cause cancer and birth defects or other reproductive harm.
1-Hour Gas Timer
Owner's Operation and
Installation Manual
WARNING
Maximum Pressure: ½" PSI
Ambient Temperature: 0°F to 175°F (79°C)
Inlets: Have fine mesh screens to filter any debris
Designed For: Natural or LP Gas (no conversion required)
CALIFORNIA PROPOSITION 65
WARNING
(For more information, go to: www.p65warnings.ca.gov)
Page 1
with E-Stop
Models:
OPT-ESTOPTM
909-460-5579
