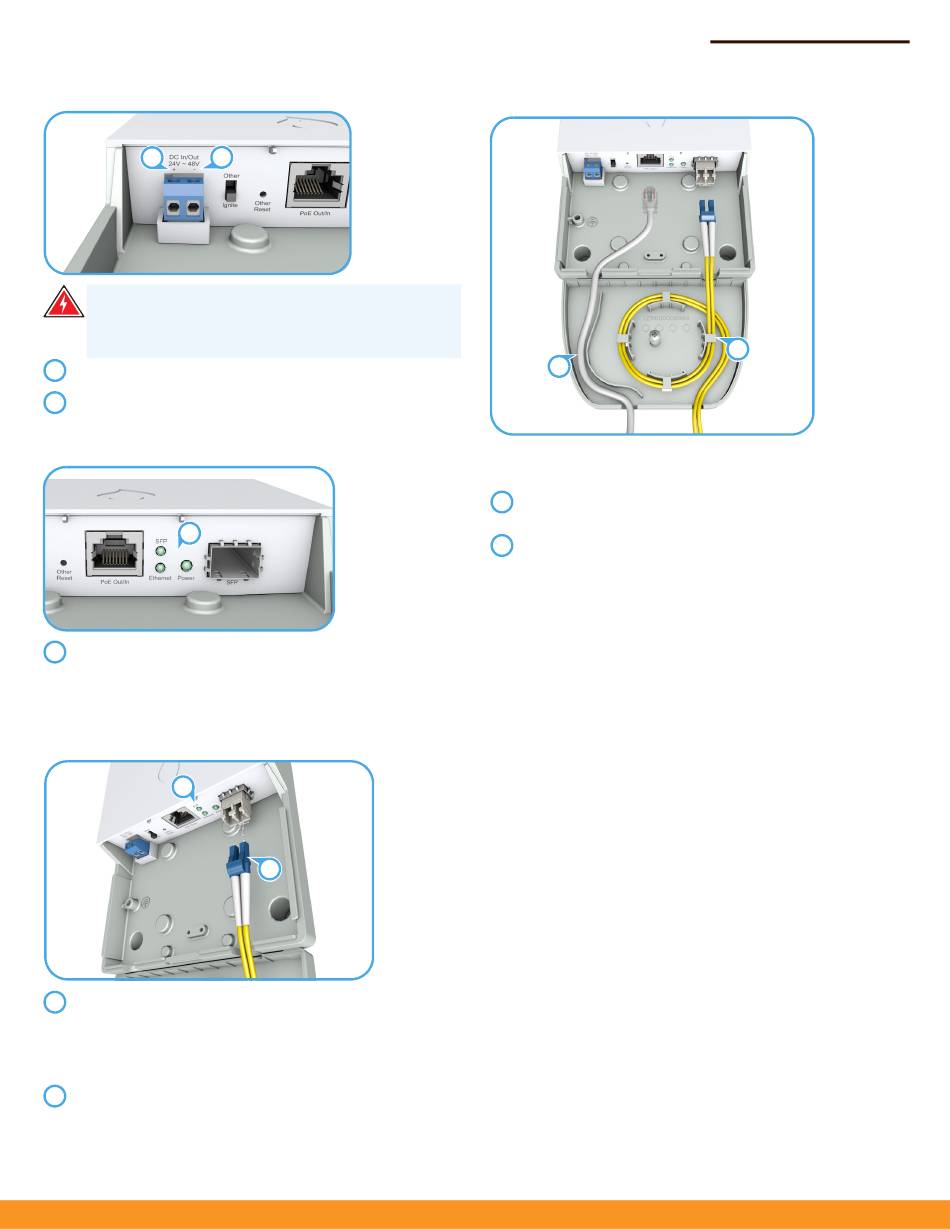

b. DC Power
2
1
Warning: Before wiring the DC block or connecting power
to the device, ensure that power to the feed lines is turned
off at the supply circuit breaker or disconnected from the
power bus.
1 Connect the DC power feed wire to the DC block "+" pin.
2 Connect the ground/return wire to the DC block "-" pin.
5. Verify Switch Operation
1
1 Verify basic switch operation by checking the system LEDs.
When operating normally, the Power LED should be on
green, and the LAN and Fiber SFP port LEDs should be on or
blinking green.
6. Connect Fiber Cable
2
1 First install an SFP transceiver, and then connect fiber optic
cabling to the transceiver port.
The following transceivers are supported:
◆
1000BASE-SX
◆
1000BASE-LX
2 As the connection is made, check the Fiber SFP port status
LED to be sure the link is valid:
◆
On Green — Port has a valid link.
◆
Blinking Green — Indicates network activity.
1
7. (Optional) Add Cable Strain-Relief Attachment
1
The optional attachment provides strain relief for the Ethernet,
fiber, and DC cables connected to the unit.
1 Route the Ethernet and DC cables through the left side of
the attachment.
2 Route the fiber cable through the right side of the
attachment and round the strain-relief feature at least once
before exit.
– 2 –
