Rukra RK-2002 Manual

RUKRA FIREMAN INTERCOM_ENG
ARTICLE NUMBER: RK-2002
GENERAL
The RUKRA Fire Intercom is a turnkey solution including the
Elevator phone in the elevator cabin.
Using the RUKRA fireman Phone switch an existing RUKRA
Elevator phone can also be expanded with a fireman

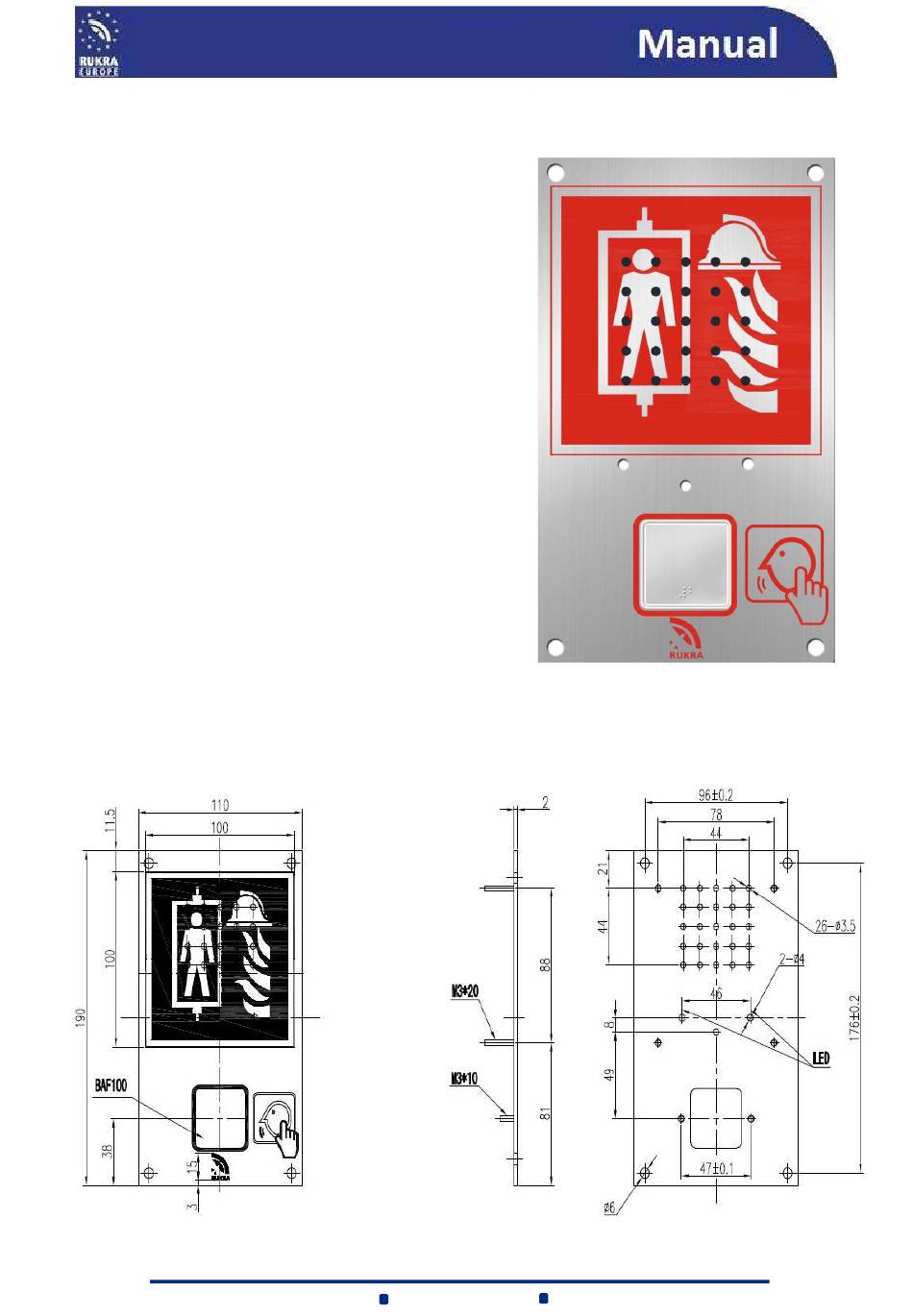

intercom. The fireman intercom comes standard with a flush
mount floor panel with fire icons and the option of a
separate fire switch.
The fireman Phone switch provides the speak and listening
connection between the people in the elevator cabin, the
fireman intercom on the fireman floor and in the engine
room.
The fireman Phone switch is in the engine room (closet) and
must be equipped with 12/24 VDC (with emergency battery),
from the fireman Phone switch two wires go to the RUKRA
elevator phone in the cabin, two wires to the RUKRA Fireman
Phone on the fireman floor and 2 wires to the phone in the
machine room (closet).
The RUKRA Elevator Phone in the cabin is in normal state
(fire circuit is inactive) then it is simply used as an Elevator
Phone, (even if the power is missing from the fire Phone switch). Once the fire switch on the fireman
floor is activated, the RUKRA elevator Phone in the cabin and the RUKRA Fireman Phone on the fireman
floor directly make contact with each other. When the phone in the machine room (closet) will be
picked up it is also added to the call conversation. This process is fully automatically.
Read this manual carefully before you start the installation or programming
