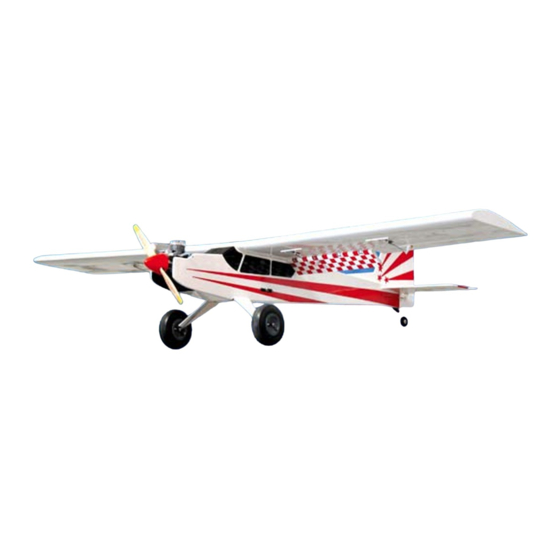

- Page 1 Funmaster 72 Electric Conversion Kit AG-504 Revision 01 403-A Flomich Street Holly Hill, FL. 32117 386-676-0074 www.ailenaircraft.com Page 1...
- Page 2 Qty..Name ..... .Description 1 ..Motor .....Himax HC4220-0700 Brushless Motor ( Alien Aircraft P/N: AE-053) 1 .
- Page 3 Building Instructions: Building the electric powered version of the Funmaster 72 is almost identical to building the glow powered version. The main difference between the models is the firewall/motor mount. As such, you should follow the regular instruction manual to build the model with the following exceptions: Use epoxy for assembling the following parts.
- Page 4 12A...Use side cutting pliers to trim off one edge on all four of the M3 blind nuts that come with the HiMax motor as shown. Note. Use the 3mm Blind nuts that come with your HiMax motor. The nuts supplied in the FunMaster Kit are 6-32 thread and are to be used with a gas motor.
- Page 5 12E...Test fit the motor into the motor mount assembly. Now remove the motor. Now continue with the regular FunMaster instructions, with the following changes. Step 23...The new electric motor mount assembly is used in place of the kit firewall. Step 28...The fuel tank tray is now the battery tray. After assembly, glue velcro on top of F-16. Step 145...You do not need the throttle servo.

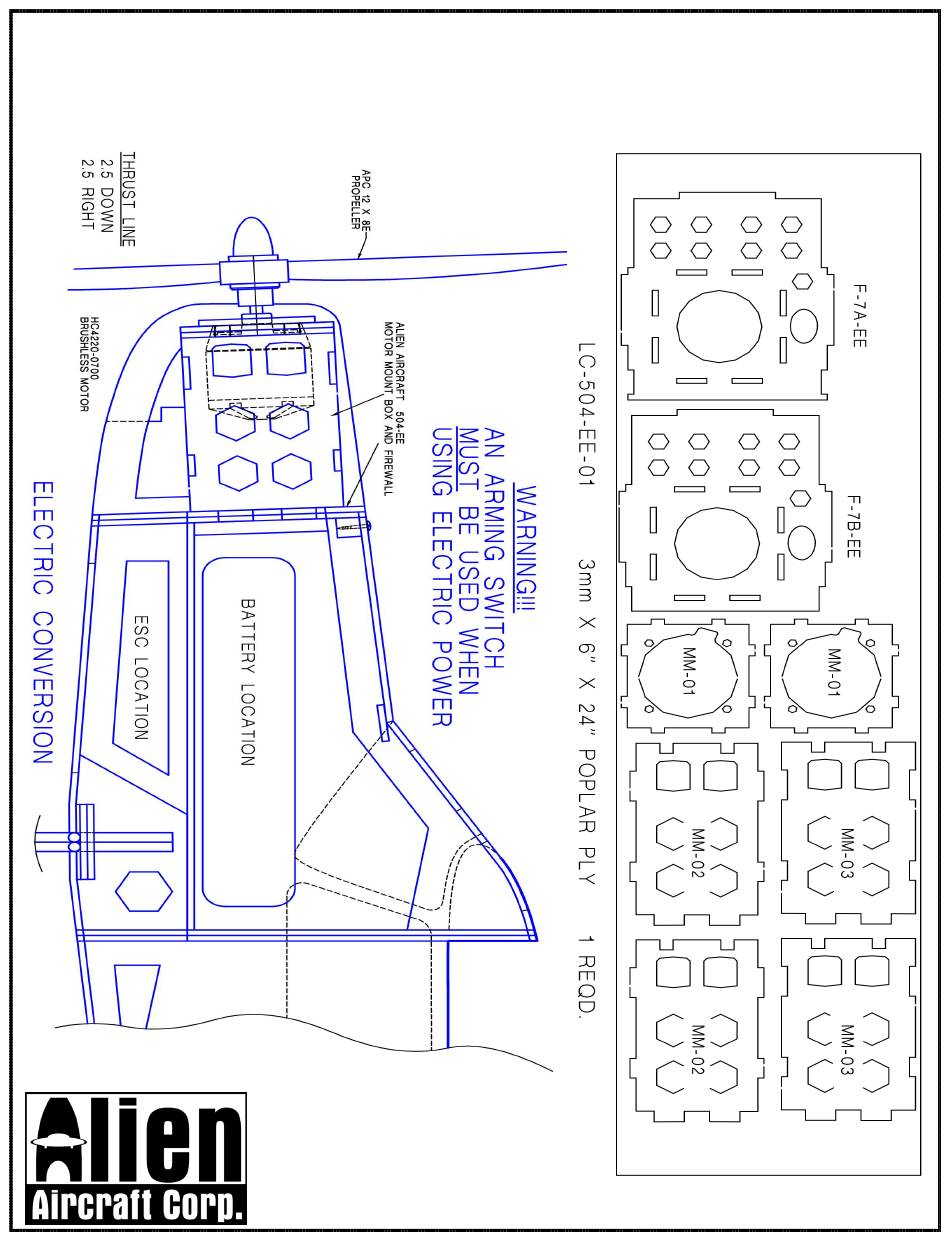

- Page 6 266...Install the propeller Place the battery in the nose of the model and install the hatch. E...Check the balance of the model. It should balance at the position shown on the plan. Move the battery forward or aft to achieve the proper balance. Use the velcro straps to secure the battery in the model in this position. Mark the location of the battery on the fuselage side.
