Summary of Contents for Syncom technology CRT-541

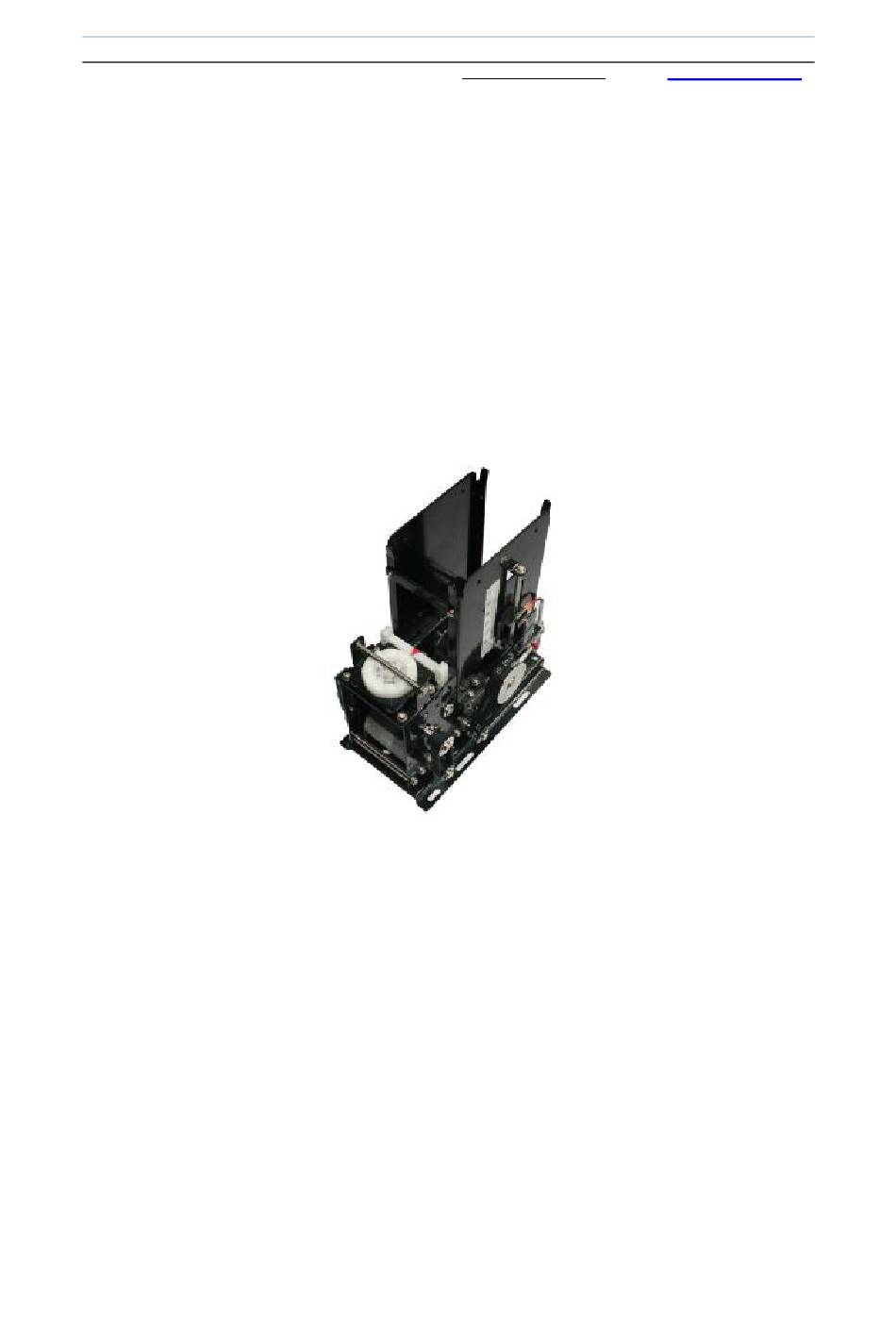

- Page 1 SHENZHEN SYNCO TECHNOLOGY CO., LTD. Room 718, Building 211, TaiRan Industry and Trade Park, FuTian District, ShenZhen 518040, China Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com CRT-541 Card Dispenser Machine Ver 1.0 PRODUCT SPECIFICATION...
-
Page 2: Table Of Contents
Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com CONTENTS ………………………………………………….…………………... 1 OVERVIEW ………….……………….…….2 PRODUCT MODULE NUMBER SPECIFICATION GENERAL SPECIFICATION…………………………………….……..…………... …………..…………….…...……….…..…4 CRT-541 DESIGN SPECIFICATION ……………………………...…………..….4 CARD THICKNESS ADJUSTMENT …….…………..…...…………….5 STRUCTURE AND DIMENSION DRAWINGS …………………….……...…………………6 RS-232 COMMUNICATION MODE …………………...……...…..……6 4.31 RS-232 COMMUNICATION INTERFACE 4.32... - Page 3 SHENZHEN SYNCO TECHNOLOGY CO., LTD. Room 718, Building 211, TaiRan Industry and Trade Park, FuTian District, ShenZhen 518040, China Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com …… ………………..……………………..15 MAINTENANCE AND CAUTIONS MAINTENANCE……………………………………………………………………… CAUTIONS FOR SAFE USE……………………………………………..…………. WARRANTY……………………………………….…………………………………..
- Page 4 SHENZHEN SYNCO TECHNOLOGY CO., LTD. Room 718, Building 211, TaiRan Industry and Trade Park, FuTian District, ShenZhen 518040, China Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com Revision Log Version Revision Time Content 2010.1.25 First Release 2010.8.6 Add TTL specification...
-
Page 5: Overview
Http://www.syncotech.com 1. O VERVIEW CRT-541 card dispenser is upgraded from CRT-540. It performs more stable and reliable but is compatible with CRT-540 in all aspects, including communication protocol, mounting holes position and so on. In addition, CRT-541 has the following features: ·... -
Page 6: Product Module Number Specification
0 0 : Standard Product XX : Customized Product (eg. TT) Version &Serials Number 1---9 Notes: J Type bezel can’t support continuous card dispending. NOTE：CRT-541 optional stackers： Extra long stacker(285PCS)： CRT-500-TCZ (285pcs, 0.76 standard cards) Long stacker(170PCS)： CRT-500-CKZ (170pcs, 0.76 standard cards) Short stacker(60PCS)：... -
Page 7: General Specification
SHENZHEN SYNCO TECHNOLOGY CO., LTD. Room 718, Building 211, TaiRan Industry and Trade Park, FuTian District, ShenZhen 518040, China Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com General Specification ·Power Supply: DC 24V ±5% ·Current Consumption: Static Current: 0.1A Peak Current During Operation: 1.5A Normal Current Condition: 800mA ·Card Feeding-Out Speed: >... -
Page 8: Crt-541 Design Specification
CRT-541 Design Specification Card Thickness Adjustment CRT-541 makes it more accurate and convenient to dispense the cards in different thickness via rotating the turn-knob to different gear position so as to adjust the gap between the upper and lower transmitting wheels, which can eliminate the inconvenient and inaccurate gap adjustment defects. -
Page 9: Structure And Dimension Drawings
Room 718, Building 211, TaiRan Industry and Trade Park, FuTian District, ShenZhen 518040, China Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com Structure And Dimension Drawings The following diagram show the structure and dimension 1. CRT-541 (No bezel) 2. CRT-541 ( Have bezel) -
Page 10: Rs-232 Communication Mode
SHENZHEN SYNCO TECHNOLOGY CO., LTD. Room 718, Building 211, TaiRan Industry and Trade Park, FuTian District, ShenZhen 518040, China Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com RS-232 Communication Mode 4.31 RS-232 Communication Interface Baud rate (BPS) 9600 bps Communication type Asynchronous communication Transmit type Half duplex... -
Page 11: Transmission Data Package Characters
SHENZHEN SYNCO TECHNOLOGY CO., LTD. Room 718, Building 211, TaiRan Industry and Trade Park, FuTian District, ShenZhen 518040, China Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com Transmission Data Package Characters 4.4.1 Definition of Control Character S T X: 0X02 Start character of data package. E T X: 0x03 End character of data package. -
Page 12: Command List
SHENZHEN SYNCO TECHNOLOGY CO., LTD. Room 718, Building 211, TaiRan Industry and Trade Park, FuTian District, ShenZhen 518040, China Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com 4.4.3 Command List The following table shows command list. Command Code Function ‘ＤＣ’(0x44 0x43) Dispensing card Dispensing card out of (Card-out address) -
Page 13: Stacker Status Response Datasheet
SHENZHEN SYNCO TECHNOLOGY CO., LTD. Room 718, Building 211, TaiRan Industry and Trade Park, FuTian District, ShenZhen 518040, China Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com 4.4.5 Stacker Status Response Datasheet The following table shows stacker status response datasheet. Status Code Specification ‘0’... -
Page 14: Pin Specification
SHENZHEN SYNCO TECHNOLOGY CO., LTD. Room 718, Building 211, TaiRan Industry and Trade Park, FuTian District, ShenZhen 518040, China Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com 4.5.2 Pin Specification ORIGINAL Pin No. SIGNAL IN / OUT AVAILABILITY STATUS STATUS Low impulse Dispensing card High“0V”... -
Page 15: General Communication Process
SHENZHEN SYNCO TECHNOLOGY CO., LTD. Room 718, Building 211, TaiRan Industry and Trade Park, FuTian District, ShenZhen 518040, China Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com 5. General Communication Process (1) After receiving correct data package, the unit will check the address. If matched, unit must give positive answer to host: ACK+ADDRESS (ADDRESS is the address of dispenser, 2 bytes);... -
Page 16: Typical Communication Process Between Host & Unit
SHENZHEN SYNCO TECHNOLOGY CO., LTD. Room 718, Building 211, TaiRan Industry and Trade Park, FuTian District, ShenZhen 518040, China Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com 5.1 Typical Communication Process between Host & Unit 5.1.1 Normal process of dispensing The host Unit Enquiry command ACK+ADDRESS... -
Page 17: Multi-Unit Communication Setting
6. Multi-Unit Communication Setting Sketch map of Multi-Unit PCB The following diagram shows the PCB of Multi-Unit CRT-541. Note： （1）232-ZIP : Two RS232 interfaces complete the same. One connects to extension. （2）DIP-ZIP：The multi-switch used to distribute the address of dispenser. -
Page 18: Dip Setting Of Unit Address
SHENZHEN SYNCO TECHNOLOGY CO., LTD. Room 718, Building 211, TaiRan Industry and Trade Park, FuTian District, ShenZhen 518040, China Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com DIP Setting Of Unit Address The following table shows the Dip setting of Unit Address. Multi-switch Corresponding address ‘00’... - Page 19 SHENZHEN SYNCO TECHNOLOGY CO., LTD. Room 718, Building 211, TaiRan Industry and Trade Park, FuTian District, ShenZhen 518040, China Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com 7. Maintenance And Cautions Maintenance After using for long time or dispensing amount of cards, the dispenser may be wearied out because of every part is running, so we need to do some maintenance to the machine.
- Page 20 SHENZHEN SYNCO TECHNOLOGY CO., LTD. Room 718, Building 211, TaiRan Industry and Trade Park, FuTian District, ShenZhen 518040, China Tel: 86-755-82706901 Fax: 86-755-82706900 Email: sales@syncotech.com Http://www.syncotech.com WARRANTY 1) One year guarantee free of charge. Counting from the day that users receive the goods;...
