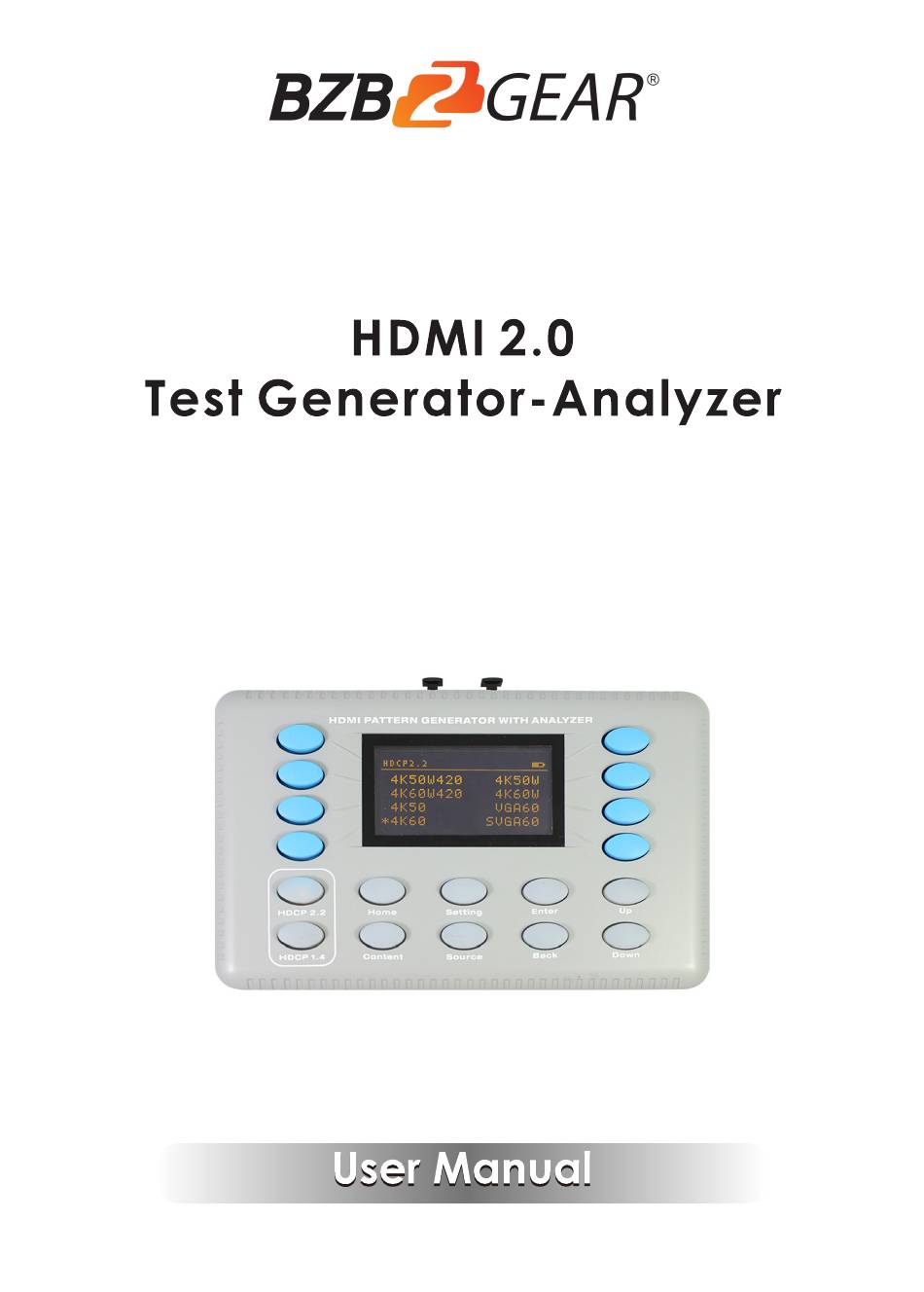

  • Page 1 BG-AVTPG-A...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.

  • Page 3: Introduction

    1. Introduction The HDMI 2.0 Test Generator-Analyzer is designed for the AV integration market to confirm HDMI 2.0 and HDCP 2.2 system at 18Gbps Level. It can generate and analyze HDMI signals for any HDMI system to make it easy for system integration, project installation and debugging, cable testing, even for engineering and test laboratory.

  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 Video Bandwidth 18 Gbps Video Resolutions up to 4K2K@50/60Hz(YUV4:4:4) Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8-blt, 10-blt, 12-blt Internal: LPCM 2CH, 48kHz, 16bits External SPDIF: LPCM 2/5.1CH, Dolby Digital, DTS 5.1 HDMIAudio Formats HDMI Pass-through: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby...

  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Top Panel •HDMI/DVI o-��� � - ClrSpace SPDIF HDMIAUD ClrDepth HDMIPass SYSTEM -IDCF SIO INFO 4 keys: Left Select No.1 ~ 4 row of left side Right keys: 1 ~ 4 Select No.1 - 4 row of right side Function keys HDCP 2.2: Enable HDCP 2.2 or None (No HDCP)

  • Page 6: Rear Panel

    Rear Panel HDMI Out: Connect to an HDMI display device. HDMI In: Connect to an HDMI source device. Optical Out: Connect to an audio receiver devicer. Optical In: Connect to an audio source device. Service: Connect to PC RS-232 port via a 3.5mm to DB9 (Female) serial cable adapter.
  • Page 7 TxEDID: Displaying and analyzing HDMI output downstream device’s EDID, pressing Left 1 key to scroll pages. (Example below)
  • Page 12 RxFMT: Displaying HDMI input mode, color depth and timing format information . (Example below) Rx PKT: Displaying HDMI input mode, color depth and AVI/VSIF/HDR Info frames, pressing Right 2 key to scroll pages. (Example below)
  • Page 13 RxAUD:Displaying HDMI input mode, color depth and Audio Info frame and Audio Channel status. ( Example below)

  • Page 14: Option Menu

    CEC: Discovering all HDMI CEC devices on the link. (Example below) Option includes below items, each item function is listed below. HDCP OFF HDMI/DVI ClrSpace SPDIF ClrDepth HDMIAUD HDMIPass SYSTEM HDMI/DVI includes HDMI, DVI and AUTO modes. AUTO mode depends on downstream device.
  • Page 15 ClrSpace includes RGB, YCbCr 4:4:4 and YCbCr 4:2:2 modes. Note YCbCr 4:2:0 mode is listed in timing format separately. HDCP OFF Color Space: 4:4:4 YCbCr 4:2:2 ClrDepth includes 8_bit, 10_bit and 12_bit modes. HDCP OFF ClrDepth: 8_bit 10_bit 12_bit HDMIPass has OFF and ON selections. OFF means output is internal pattern. ON means HDMI input pass through to HDMI output.

  • Page 16: Pattern And Timing

    HDMIAUD selects the source of HDMI output audio, it has INTR (internal audio), ExtHDMI (HDMI input audio), ExtSPDIF (external SPDIF input) and OFF selections. HDCP OFF HDMIAUD: INTR ExtHDMI ExtSPDIF SYSTEM includes below items, each item function is listed below. HDCP OFF INFO BEEP...

  • Page 17: Pattern List

    HDCP OFF PASS EDID: LOAD SAVE RESET can do system reset operation real time. HDCP OFF INFO BEEP System Reset? EDID Enter / Back RESET INFO can show firmware version including MCU and HDMI chipset’s. HDCP OFF INFO BEEP MCU : v1. 02 EDID HDMI : v1100 RESET...

  • Page 19: Timing List

    The HDMI 2.0 Test Generator-Analyzer supports 55 types of video resolutions. HDCP OFF HDCP OFF HDCP OFF 480i60 720p24 720p60 1080p50 576p100 1080i100 480p60 720p25 1080p24 1080p60 480p120 1080i120 576p50 720p30 1080p25 1080i50 720p100 1080p100 576i50 720p50 1080p30 1080i60 720p120 1080p120 HDCP OFF HDCP OFF...
  • Page 20 3840x2160p60 1920x1080p50 4K60_420 1080p50 (YCbCr420) 4096x2160p50 1920x1080p60 4K50W420 1080p60 (YCbCr420) 4096x2160p60 1080i50 1920x1080i50 4K60W420 (YCbCr420) 1080i60 1920x1080i60 4K50 3840x2160p50 576p100 720x576p100 4K60 3840x2160p60 480p120 720x480p120 4K50W 4096x2160p50 720p100 1280x720p100 4K60W 4096x2160p60 Supported VESA Timings Name Resolution VGA60 640x480p60 SVGA60 800x600p60 XGA60 1024x768p60 XGA70...

  • Page 21: Connection Diagram

    8. Connection Diagram -----� _=_=_=_=_=� :::;- 1======c;-i Optical In DVD or Blu-ray Player r..=------�;:: _ =_=_=_=_=� :::;- l====;i Notebook DVD or Blu-ray Player RS-232 HDMlln Power Supply Optical Out AV Receiver TV or Monitor...

  • Page 22: Warranty

    9. Warranty BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*. Taking advantage of this program is simple, just follow the steps below: 1.

  • Page 23: Mission Statement

    10. Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.
