SERVICE & OPERATING MANUAL
ORIGINAL INSTRUCTIONS
VPD05, VDA07, VDA10

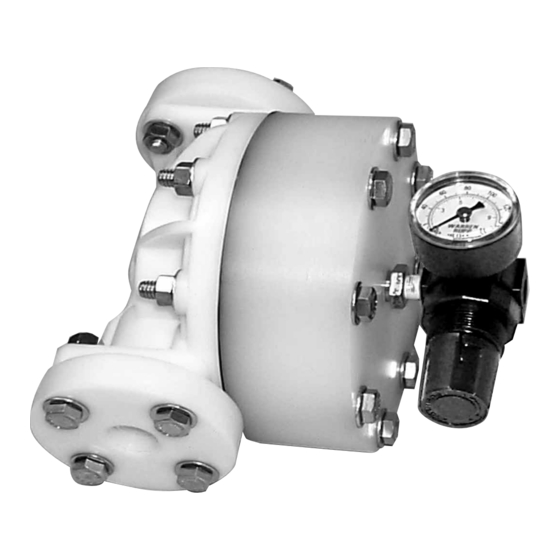

Metallic and Non-Metallic Surge Dampeners
VERSAMATIC
®
Warren Rupp, Inc. • A Unit of IDEX Corporation
800 North Main Street, Mansfield, OH 44902 USA
Phone: (419) 526-7296 • www.versamatic.com
VDA
A C C E S S O R I E S
© Copyright 2019
Warren Rupp, Inc. All rights reserved
Advertisement
Table of Contents
Summary of Contents for Versamatic VDA
- Page 1 A C C E S S O R I E S VERSAMATIC 800 North Main Street, Mansfield, OH 44902 USA ® © Copyright 2019 Warren Rupp, Inc. • A Unit of IDEX Corporation Phone: (419) 526-7296 • www.versamatic.com Warren Rupp, Inc. All rights reserved...
-
Page 2: Safety Information
Do not expose to UV light must be properly grounded. for extended periods of time. This pump is pressurized internally with air pressure during operation. Make certain that all fasteners are in good condition and are reinstalled properly during reassembly. versamatic • Surge Dampeners vda050710sdsm-rev0419... - Page 3 • Service • Typical Installation Guide SECTION 3: EXPLODED VIEW ......4 • Composite Drawings • Parts List • Material Codes SECTION 4: WARRANTY & CERTIFICATES ..6 • Warranty • EU Declaration of Conformity - Machinery Directive Surge Dampeners • versamatic vda050710sdsm-rev0419...
-
Page 4: Dimensional Drawings
Dimensional Drawings DA05 1/2 NPT (BSP) THREADED PORT VDA05 Metallic and Non-Metallic 1/2 NPT (BSP) THREADED PORT DA07 3/4 NPT (BSP) THREADED PORT VDA07 3/4 NPT (BSP) THREADED PORT VDA10 versamatic • Surge Dampeners vda050710sdsm-rev0419... -
Page 5: Principle Of Operation
When service is required on the dampener, remove the 8 capscrews. The wetted chamber can be removed from the unit and exposes the diaphragm. Remove the diaphragm. When reassembling the wetted chamber onto the air chamber, use a torque wrench set at 70 in/lbs. (7.9 Newton meters) Surge Dampeners • versamatic vda050710sdsm-rev0419... - Page 6 To start the pump, slightly open the air shut-off valve. After the pump primes, the air valve can be opened to increase air flow as desired. If opening the valve increases cycling rate, but does not increase the rate of flow, cavitation has occurred. The valve should be closed slightly to obtain the most efficient air flow to pump flow ratio. versamatic • Surge Dampeners vda050710sdsm-rev0419...
-
Page 7: Composite Repair Parts Drawing
Composite Repair Parts Drawing Supplied with regulator DA10 only 1" ANSI fl ange Nameplate location * Diaphragms must be installed as shown with convolutions facing the outer chamber. Surge Dampeners • versamatic vda050710sdsm-rev0419... -
Page 8: Composite Repair Parts List
171-069-330 Capscrew, Hex Flange (Metallic VDA05 only) 538-002-115 Nipple 1/8 NPT 020-039-000 Regulator W/Gauge 170-045-330 Capscrew Hex Flange (VDA05 Metallic Only) 5/16 -18 x 1.25 4 900-004-330 LockWasher (VDA05 Metallic Only) 901-038-115 Flat Washer (Non-Metallic Only) versamatic • Surge Dampeners vda050710sdsm-rev0419... -
Page 9: Warranty
Versamatic warrants to the original end-use purchaser that no product sold by Versamatic that bears a Versamatic brand shall fail under normal use and service due to a defect in material or workmanship within five years from the date of shipment from Versamatic’s factory.
