Summary of Contents for ISC Edge Roller

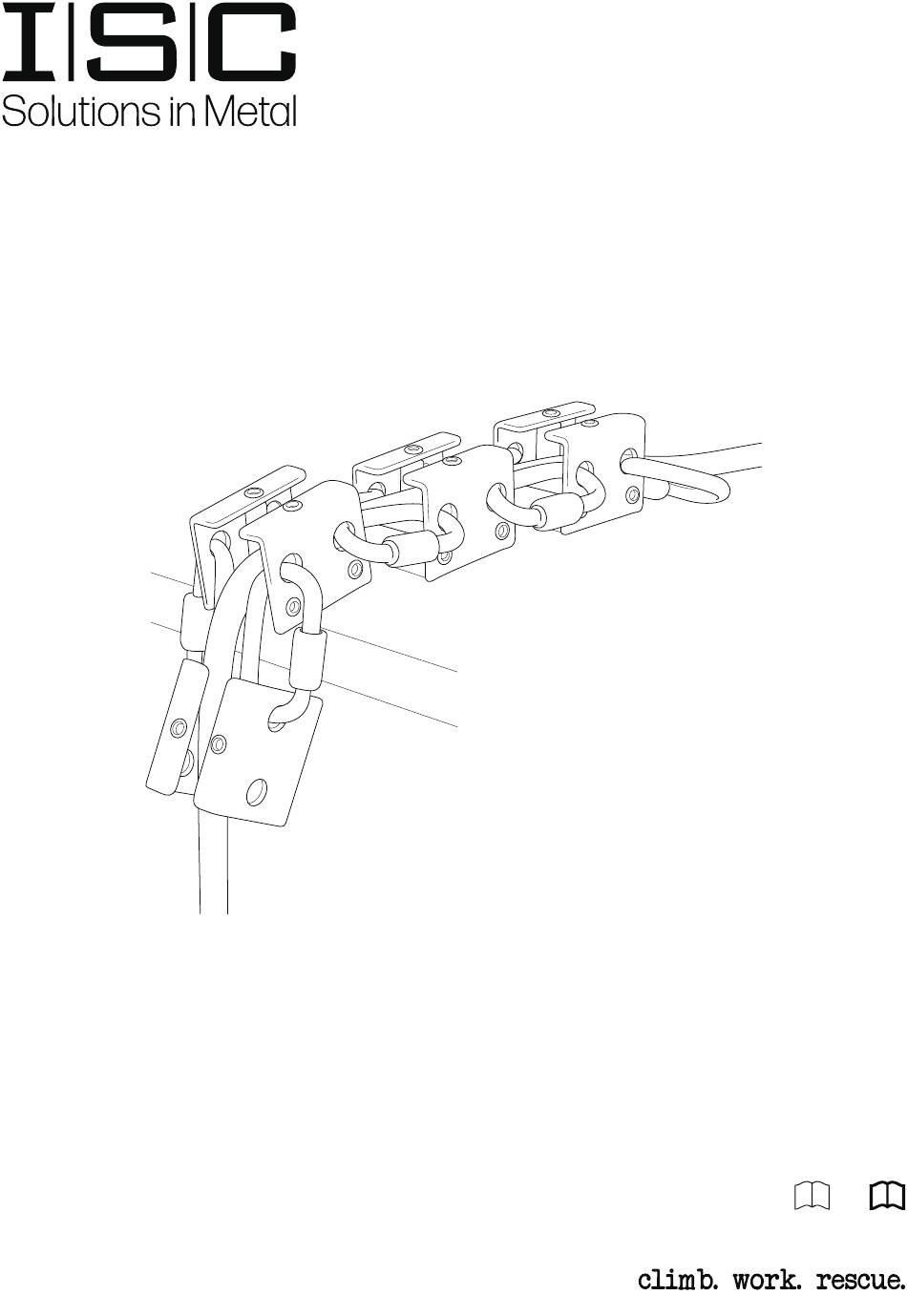

- Page 1 Edge Roller ER100 Edge Roller: Issue A March 2021...
- Page 2 EDGE ROLLER The ISC Edge Roller is ideal for protecting ropes from wear. Each Edge Roller box has base rollers and side rollers, to protect the rope from edge wear and lateral movement Edge Roller boxes are sold separately and boxes can be added or removed to suit terrain of each application.
- Page 3 A Edge Roller Nomenclature B Care & Maintenance 30° ER100 Edge Roller: Issue A March 2021...
- Page 4 C Markings ER100 EDGE ROLLER Rope Ø 8 - 16mm ER006970 D Assembly E Rope Installation ER100 Edge Roller: Issue A March 2021...
- Page 5 F Use & Misuse Misuse <250kg (551lb) EN 1891 8 - 16mm (5/16 - 5/8”) G Inspection ER100 Edge Roller: Issue A March 2021...
- Page 6 The Edge Rollers must be positioned so that the rope runs over the centre and does not lift out. Ensure the Edge Roller is secure and stable before using the rope below it. During use, it is essential to regularly check that the rope and Edge Rollers are still correctly positioned.
- Page 7 Before each use, check the metal part of the Edge Roller for damage, especially worn grooves or burrs. Small burrs may be removed with emery cloth. Check condition of the Links. Ensure that the barrel loosens and tightens accordingly. Ensure that all rope contact surfaces are left smooth. Check the rope for signs of wear or damage and replace if necessary.
-
Page 8: Product Record
PRODUCT RECORD ER100 Edge Roller: Issue A March 2021... - Page 9 Conformidade, Efterlevnad, , . Comments, Připomínky, Bemærkninger, Kommentare, Comentarios, Kommentit, Commentaires, Commenti, Opmerkingen, Kommentarer, Uwagi, Comentários, Kommentarer, , . Signature, Podpis, Underskrift, Unterschrift, Firma, Allekirjoitus, Signature, Firma, Handtekening, Signatur, Podpis, Assinatura, Underskrift, , . ER100 Edge Roller: Issue A March 2021...
- Page 10 NOTES ER100 Edge Roller: Issue A March 2021...
- Page 11 NOTES ER100 Edge Roller: Issue A March 2021...
- Page 12 Stay up to date with ISC e-mail alerts! Scan the QR Code with your Smartphone to register for ISC e-mail Alerts. We will email you from time to time with news of new products, product updates and other news features which are relevant to your chosen industry.
