GGM

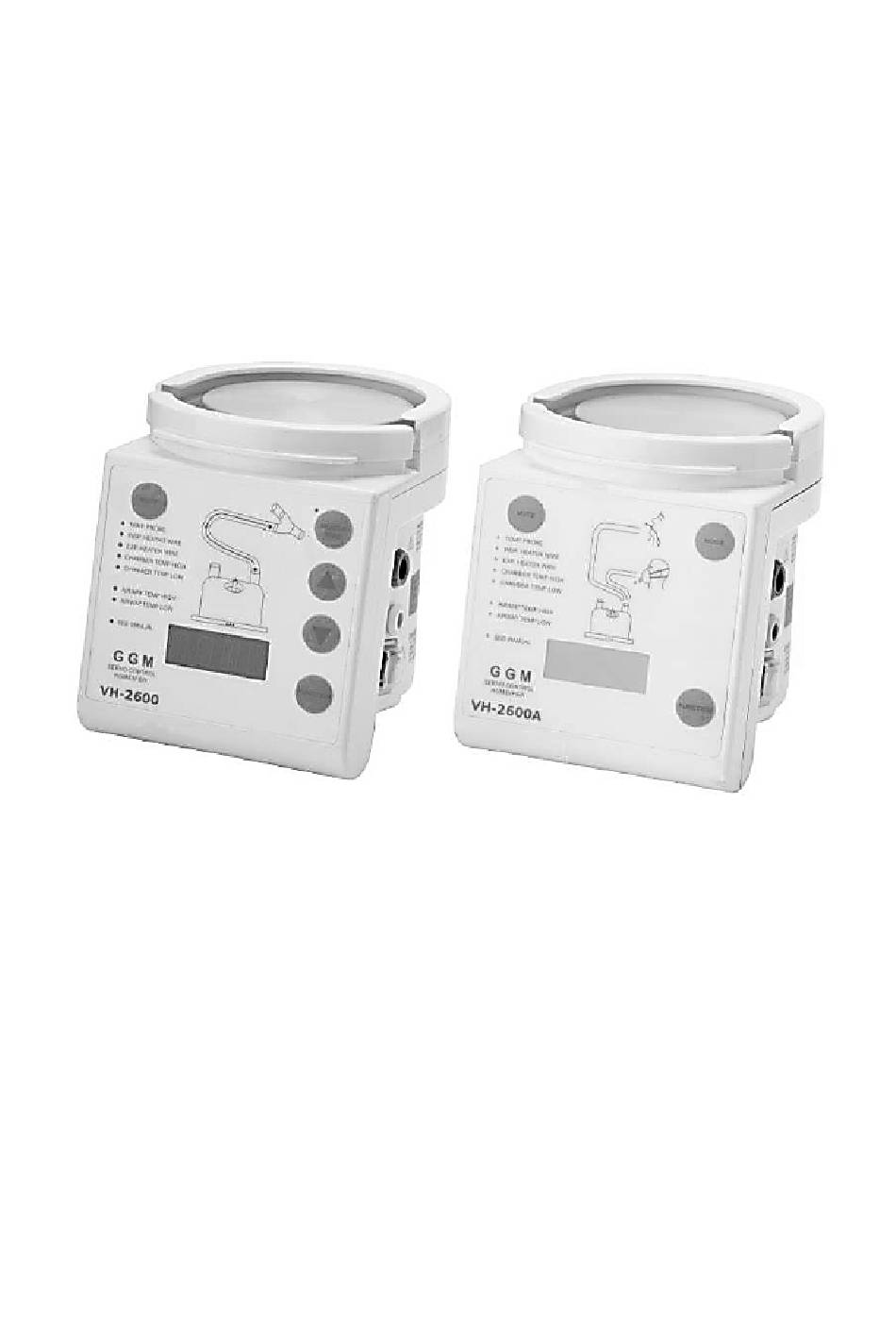

Respiratory Gas Humidifier
VH-2600/VH-2600A
Respiratory Gas Humidifier
Technical Manual
REV A
2017/06/09
Manufacturer: Great Group Medical Co., Ltd.
nd
Address: No.168, Xingong 2
Rd., Tianzhong Township,
Changhua County 52046, Taiwan (R.O.C.)
Tel: +886.4.8758181 Fax: +886.4.8756161
E-mail: info@greatgroup.com.tw
Web: www.greatgroup.com.tw
ISO 13485 / CE 2460 / GMP
Advertisement
Table of Contents
Troubleshooting
Summary of Contents for GGM VH-2600
- Page 1 Respiratory Gas Humidifier VH-2600/VH-2600A Respiratory Gas Humidifier Technical Manual REV A 2017/06/09 Manufacturer: Great Group Medical Co., Ltd. Address: No.168, Xingong 2 Rd., Tianzhong Township, Changhua County 52046, Taiwan (R.O.C.) Tel: +886.4.8758181 Fax: +886.4.8756161 E-mail: info@greatgroup.com.tw Web: www.greatgroup.com.tw ISO 13485 / CE 2460 / GMP...
-
Page 2: Manual Revision History
VH/2600/VH-2600A humidifier. firmware and hardware version of the record as shown in the table. Operation of the machine should pay attention to the use of version, the version of the operation may be different. VH-2600 PCB Version Data Serial number... -
Page 3: Table Of Contents
3.2. Power on Self-check ........................... 8 3.3. Front Panel ............................9 3.4. Display .............................. 11 3.5. Flow Chart ............................12 3.5.1. Flow Chart for VH-2600 ......................12 3.5.2. Flow Chart for VH-2600A ..................... 13 4. Maintenance Schedule ..........................13 4.1. Maintenance Schedule ........................13 4.1.1. - Page 4 7.2. Humidifier Warm-up and Control Check ..................26 7.3. Temperature accuracy calibration ..................... 26 8. Recommended Maintenance Checklist ......................27 8.1. Humidifier Check (Annually) ......................27 9. Exploded Diagram ............................27 9.1. Heater Plate ............................27 9.2. VH-2600 Exploded Diagram ......................28 9.3. VH-2600A Exploded Diagram......................28...
-
Page 5: Introduction
This manual is intended for qualified service personnel who will perform maintenance and servicing on the Great Group Medical Co., Ltd. VH-2600/VH-2600A Respiratory Humidifier. This manual covers the product specifications, includes a maintenance schedule, and provides the necessary information required for servicing. -
Page 6: Definitions
Medical Co., Ltd. for a list of approved accessories. Warning： The use of breathing circuits, chambers and other accessories which are not authorized by GGM may cause malfunction, damages or injuries. Make sure the invasive mode is set for patients having bypass airways. -
Page 7: Humidifier Symbol Definition
Dimensions: W135mm x D170mm x H156mm (without chamber fitted) Weight: 2.9 kg (without a chamber fitted) 2.2. Electrical Rating Model Number Supply Voltage Supply Current VH-2600-115 AC 115 V 2.0 A Max VH-2600-230 AC 230 V 1.0 A Max VH-2600A-115 AC 115 V 2.0 A Max... -
Page 8: Alarm Parameters
VH-2600 Airway set Point: 31 - 40°C (default 39℃) Chamber set Point: 31-40°C(default 37℃, limited to Airway set Point -5 to +2℃) VH-2600A Heater Wire Circuit Invasive mode Airway Set Point:36~40 (default:40°C) Chamber Set Point:36~40 ( default :37°C)ver1.00 Chamber Set Point:34~40 ( default :37°C)ver1.01... -
Page 9: Operating, Transport And Storage Environment
2.5. Operating, Transport and Storage Environment Operating Transport Storage Temperature 18- 26°C(64.4-78.8°F) -10- 50°C (14-122°F) -10- 50°C (14-122°F) 30 ％ -75 ％ 30 ％ -95 ％ 30 ％ -95 ％ Relative humidity Atmospheric 70kPa-106kPa 50kPa-106kPa 50kPa-106kPa pressure Altitude 0-3000m(9000ft) 0-3000m(9000ft) 0-3000m(9000ft) 2.6. -
Page 10: Front Panel
3.3. Front Panel VH-2600 When this button is pressed power to the heater wire is turned on and the green indicator light will be illuminated. For non-heated wire circuits, the indicator light must be off. An alarm will occur if the heater wire function is turned off while a heated wire circuit is connected. - Page 11 VH-2600A 1. Locked / Unlock *System will automatic “Lock” the panel after 60 sec when power on, and display the chamber temperature. *Hold FUNCTION for 3 sec ＝> Unlock *Hold FUNCTION for 3 sec ＝> Lock 【The system will relock automatically after 60 sec, if there is no more operation.】 2.
-
Page 12: Display
3.4. Display In generally condition: Display the actual temperature of gas being delivered from the chamber or the airway temperature. Symbols： A40.0 A=40 Airway temperature Airway temperature set point C37.0 C=37 Chamber temperature Chamber temperature set point H100 ER.01 Heater plate temperature When heater wire short. -
Page 13: Flow Chart
3.5. Flow Chart 3.5.1. Flow Chart for VH-2600... -
Page 14: Flow Chart For Vh-2600A
3.5.2. Flow Chart for VH-2600A 4. Maintenance Schedule Keep routine maintenance to ensure safety for continuous usage. 4.1. Maintenance Schedule It is necessary to avoid pollution by checking facilities and parts regularly. It is suggested contact with in local for maintenance every 12 months. NOTE: Keep routine maintenance to ensure safety for continuous usage. -
Page 15: Temperature Probe
Wipe the humidifier clear of any cleaning residues before use. 1. Disconnect the humidifier from any electrical outlet. 2. Clean the humidifier with one of the following recommended disinfectants using a damp cloth: a. Isopropyl Alcohol b. Normal dishwashing detergent NOTE: Follow the manufacturer’s instructions carefully. -
Page 16: Safety
4.1.5. Safety The resistance to earth from protectively earthed parts in the unit shall be low enough to permit adequate fault current to flow in the event of insulation failure, thereby ensuring that the protection device in the final sub-circuit opens quickly. The protective earthing conductor also ensures that most of the capacitive leakage current from the mains part in the unit flows via a low-resistance path to earth and does not appear as excessive leakage current from the device enclosure or as Applied Part current, when the earthing conductor is intact. - Page 17 While the chamber temp higher than 41°C, system will alarm with sound. NOTE：Alarm will be unworkable and it will only have twinkle yellow indicator while in Non-Heater Wire Mode, and alarm will happen while the chamber higher than 66°C. 5. AIRWAY TEMPERATURE HIGH<Alarm> Heater Wire on：...
-
Page 18: Troubleshooting
5.2. Troubleshooting 5.2.1. Low Temperature Condition detected Possible cause Action to take Temperature less than Humidifier warming up. Wait for a few minutes. desired, no alarm. Temperature probe not in position. Check position of temperature probe in the Airway temperature low circuit. -
Page 19: Excessive Water In Circuit
5.2.4. Excessive Water in Circuit Condition detected Possible cause Action to take Excessive water in If in non-heated wire mode, water trap not Reposition water trap. inspiratory circuit due to at the lowest point of the circuit. rainout. If in heated wire mode, heater wire too Increase distance from heater wire to close to temperature probe. -
Page 20: Temperature Display
Temperature probe alarm Chamber temperature probe open. Replace probe. ‘C.OPN’ appears on display. Temperature probe alarm Chamber temperature probe short. Replace probe. ‘C.SHT’ appears on display. Temperature probe alarm Airway & chamber temperature probe short Replace probe. ‘A-C.S’ appears on display. Temperature probe alarm Internal temperature probe open. -
Page 21: Servicing Procedures
Water leak with disposable Chamber used beyond lifespan. Replace with new chamber. chamber. 6. Servicing Procedures 6.1. General Precautions Warning: Although the unit display may not be illuminated, the unit may still be energized. Be sure to disconnect the unit from the power supply before servicing. All servicing procedures should be followed by a humidifier performance test, and an electrical safety test to ensure proper operation. -
Page 22: Replacing Fuses
Fuse F 4 Fuse F1 Fuse F3 Fuse F 2 2. The four fuses have the following ratings. Model Supply voltage Fuse Type F1：1.5A 250V Fast Blow F2：1.5A 250V Fast Blow VH-2600/VH-2600A 230V F3：1A 250V Fast Blow F4：4A 250V Fast Blow... -
Page 23: Resetting The Thermal Cutout
F1：3A 250V Fast Blow F2：3A 250V Fast Blow VH-2600/VH-2600A 115V F3：1A 250V Fast Blow F4：4A 250V Fast Blow Warning: Be sure to replace the correct type of fuse. Do not use unspecified fuse, causing patient injury 3. Replace fuse. 4. Close the case. -
Page 24: Replacement Of Printed Circuit Boards (Pcbs)
4. Remove the earth wire、live wire and neutral wire. 5. Attach the mains cable wires to the terminal block on the power PCB, and attach the new cable tie. Cord type Live wire Neutral wire Earth wire USA/ JAPAN Black or White or Green or (115/ 100 V) -
Page 25: Checking The Heater Plate Element
Thermal cutout Thermistor Fixed plate 4. Remove the three screws holding the heater plate. 5. Place the new thermistor into position, and attach using the screw. 6. Replace the fixing screw. 7. Place heater plate back into position, ensuring the springs underneath the heater plate are in place. Attach to the humidifier's case using the three long screws that were previously removed.. -
Page 26: Replacing The Thermal Cutout
Contact 1 Contacts 2 The resistance of the heater plate element should measure the same as outlined in the table below: Heater Plate Supply Voltage Resistance 353.0 ± 18.0 Ω 230V 88.0 ± 4.0 Ω 115V If the measured resistance is outside this range, replace the mica. 5. -
Page 27: Performance Testing
This section describes how to check the humidifier's heater control systems. This test should be performed if there is a problem with the humidifier, or after servicing of the humidifier. Equipment Required： VH-2600/VH-2600A Humidifier Heat wire adaptor Temperature probe ... -
Page 28: Recommended Maintenance Checklist
This sheet can be copied and used to keep a record of the maintenance procedures carried out on your VH-2600/VH-2600A Humidifier, and sensor. Place the serial number and the date that the maintenance was carried out in the spaces provided. -
Page 29: Vh-2600 Exploded Diagram
9.2. VH-2600 Exploded Diagram 9.3. VH-2600A Exploded Diagram...
