Tsubaki TKP91 Instruction Manual

Plastic cableveyor

Advertisement

Quick Links

Thank you for your purchase of a Tsubaki plastic Cableveyor.
This instruction manual covers points from delivery to installation, and should be read
before beginning work.
1

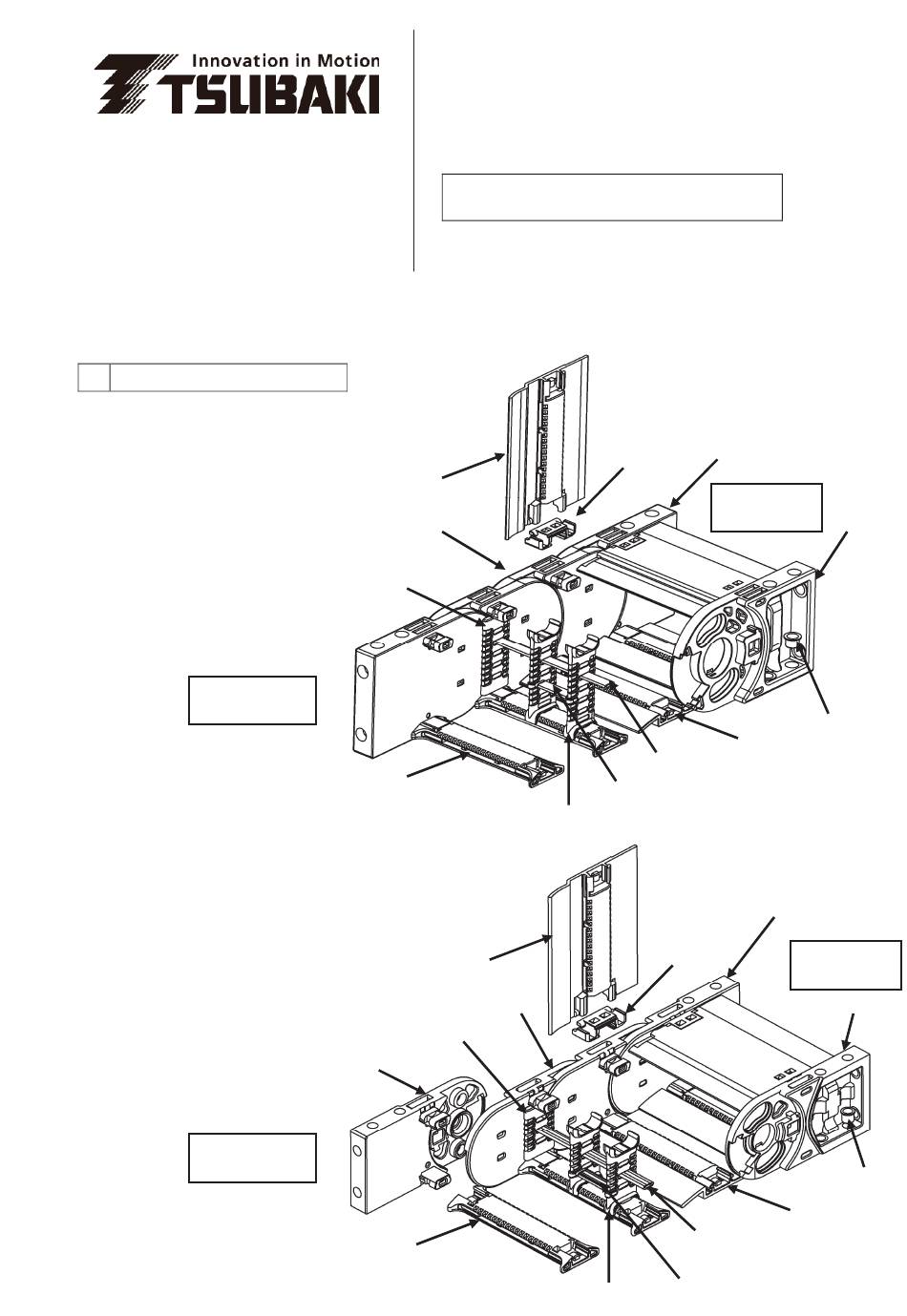

Construction/Part Names
TKP/TKC 91 H80 Types
Moving End
TKP/TKC 91 H56 Types
Moving End
Tsubaki
TKP/TKC91
Plastic Cableveyor
Instruction Manual
Closed-type Arm
Link
Vertical
Divider
(usable either side)
Open-type Arm
Closed-type Arm
Vertical
Divider
(usable either side)
Bracket (B)
Open-type Arm
Hinge
Horizontal Divider
(DSB type)
Vertical Divider
Link
Vertical Divider
1/14
Bracket (A)
Fixed End
Lock Stay
Horizontal Divider (DSA type)
Bracket (D)
Hinge
Fixed End
Lock Stay
Horizontal Divider (DSA type)
Horizontal Divider (DSB type)
Bracket (B)
Bush
Bracket (C)
Bush

Advertisement

loading
Need help?

Need help?

Do you have a question about the TKP91 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tsubaki TKP91

  • Page 1 1/14 Tsubaki TKP/TKC91 Plastic Cableveyor Instruction Manual Thank you for your purchase of a Tsubaki plastic Cableveyor. This instruction manual covers points from delivery to installation, and should be read before beginning work. Construction/Part Names TKP/TKC 91 H80 Types Bracket (A)
  • Page 2: Before Assembly

    3) There is no need to tap the screwdriver handle with a hammer. Doing so may damage parts. 4) Wear gloves, safety glasses, safety shoes, and other protective gear as appropriate when working. Arm Types and Removal *All TKP91 (open type) arms are interchangeable (Caution!) 1) Hold down the arm with your hand and insert a...
  • Page 3 3/14 *For TKC91 (closed type), the arms (with hinge) and lock stays are not interchangeable. Removing an arm on the end 1) The arm has a hook on one end and a hinge (separate part) on the other, as shown below. First, insert a screwdriver about 7mm into the release hole on the flat side of the hook end (the left side in this diagram) and twist to lift the arm.
  • Page 4 4/14 Removing an arm in the center 1) Insert a screwdriver about 7mm into the release hole on the flat arm end (the left side in this diagram) and twist to lift arm. This may release the hook side at the same time. Flat End 2) If the hook side does not release, insert a screwdriver about 7mm into the release hole on the flat side of the arm on the opposite side (the left side in this diagram) and twist to lift arm.
  • Page 5 Unhook the side and twist the entire arm while lifting up to remove. Arm Types and Assembly *TKP91 (open type) arms are interchangeable 1) Ensure the link cannot move. Align an arm parallel with the installation area of the link and lightly tap with a plastic hammer from directly above as indicated by the arrows below to attach.
  • Page 6 6/14 2) If the arm isn’t securely attached then it will be lifted like shown in the photo below. Ensure the arm is attached securely before use. Note: You will not be able to attach the arms if they are: Tilted laterally Not flush with the link end Attachment area not parallel...
  • Page 7 7/14 Note: Attach the hinge unit to the link installation area as follows. If using a plastic hammer If using your hands Lay parallel in the mounting area and tap Lay hinge diagonally and twist with hook directly from above. attached on one side.
  • Page 8 8/14 5 Closed-type Arm Direction and Assembly 1) For closed-type Cableveyors, either the arms on the outer circumference or the lock stays on the inner circumference will overlap each other. Attached dust and other foreign matter can enter the Cableveyor interior unless installed as shown below.
  • Page 9 9/14 Connecting Links Tsubaki plastic Cableveyors may be packaged and shipped disassembled in set unit lengths. Use the following method to connect the Cableveyor to the desired length. *91H80 (inner height 80mm) Left and right links are the same. 1) To connect two disassembled Cableveyors, remove the arms and lock stays (if present) on the links of each end to be connected.
  • Page 10 10/14 *91H56 (inner height 56mm) Left and right links are different and cannot be interchanged. 1) To connect two disassembled Cableveyors, remove the arms and lock stays on the two links at each end to be connected. 2) Align the links to be connected and press together along the direction of pitch. Links will fit together with a loose snap fit.
  • Page 11 11/14 Link Disassembly As with connection, before disassembly please remove the arms from each side of the links. (On one link for 0910 H80, two links for 91 H56) Once the arm has been removed, insert a screwdriver in the groove on top and twist lightly. Once the links have been separated slightly, insert the screwdriver further and separate totally.
  • Page 12 12/14 Attaching Dividers (IMPORTANT!) Vertical dividers have a direction. Wide Narrow Outer Circumference (Fixed End) Narrow Outer Circumference Wide (Fixed End) Wide Outer Circumference (Open/Close End) Product Name Stamp Product Name Stamp Narrow Inner Circumference Narrow Inner Circumference Narrow Narrow (Fixed End) (Fixed End) TKP/TKC91 H80...
  • Page 13 Installation width (X) More than +50mm *Mounting on the equipment Moving end bracket: TKP91 H80: Can be mounted on either side. TKC91 H80: Mount so that foreign matter cannot get inside cover space (see pg. 8). TKP/TKC91 H56: Mount on bracket A/B side.
  • Page 14: Maintenance And Inspection

    14/14 Note: 3 Equipment Parallelism Moving End Bracket Note: 2 Note: 1 Installation height Center difference Cable (H + 10 – 30mm) Cable Floor Fixed End Bracket Note: 1. The difference between bracket centers on both ends should be less than 6mm. 2.
