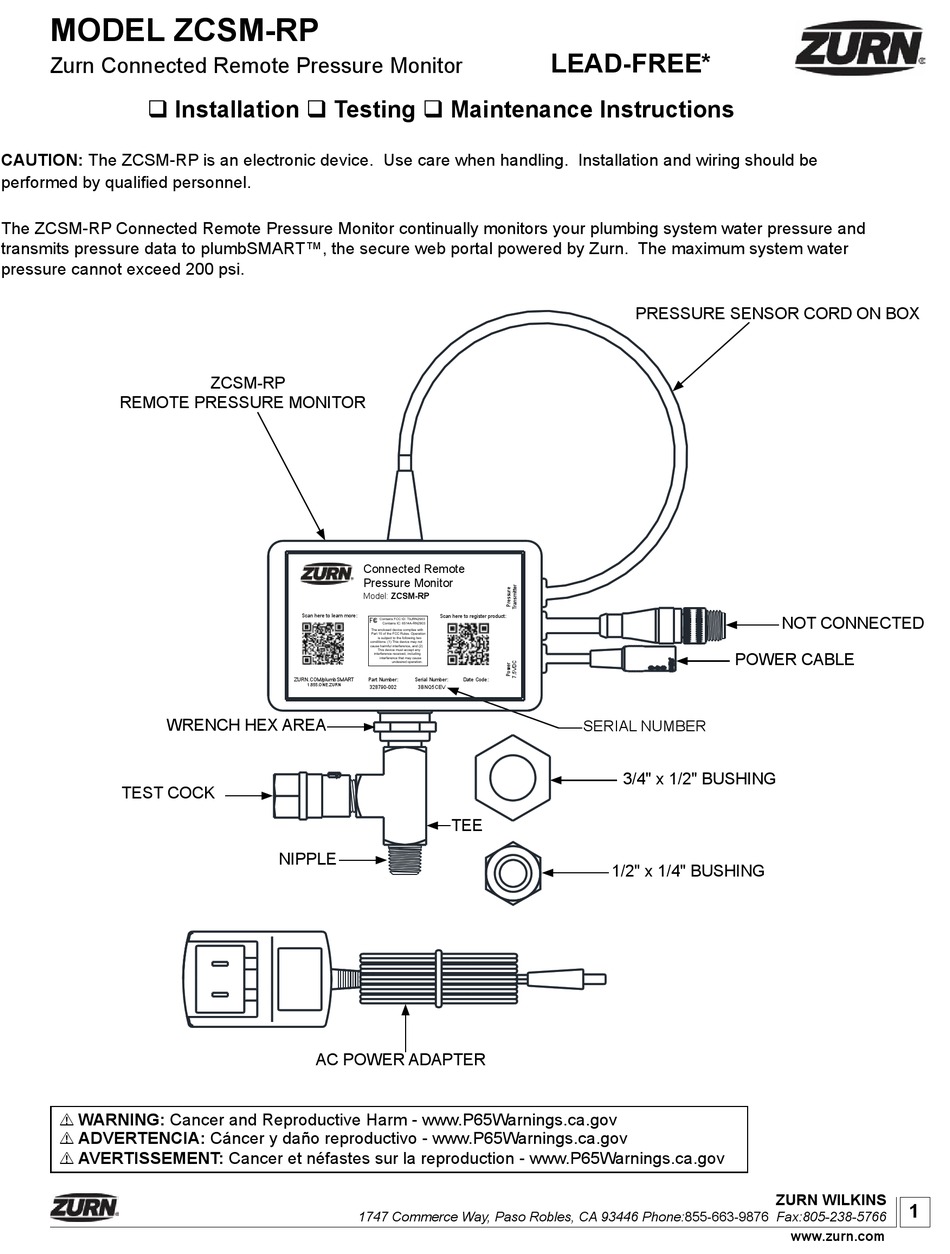

MODEL ZCSM-RP
Zurn Connected Remote Pressure Monitor
Installation Testing Maintenance Instructions
CAUTION: The ZCSM-RP is an electronic device. Use care when handling. Installation and wiring should be
performed by qualified personnel.
The ZCSM-RP Connected Remote Pressure Monitor continually monitors your plumbing system water pressure and
transmits pressure data to plumbSMART™, the secure web portal powered by Zurn. The maximum system water
pressure cannot exceed 200 psi.
REMOTE PRESSURE MONITOR
WRENCH HEX AREA
TEST COCK
! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
! ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
! AVERTISSEMENT: Cancer et néfastes sur la reproduction - www.P65Warnings.ca.gov
ZCSM-RP
Connected Remote
Pressure Monitor
Model: ZCSM-RP
Scan here to learn more:
FC
c
Contains FCC ID: T9JRN2903
Contains IC: 6514A-RN2903
The enclosed device complies with
Part 15 of the FCC Rules. Operation
is subject to the following two
conditions: (1) This device may not
cause harmful interference, and (2)
This device must accept any
interference received, including
interference that may cause
ZURN.COM/plumbSMART
Part Number:
1.855.ONE.ZURN
328790-002
NIPPLE
AC POWER ADAPTER
1747 Commerce Way, Paso Robles, CA 93446 Phone:855-663-9876 Fax:805-238-5766
LEAD-FREE*
Scan here to register product:
undesired operation.
Serial Number:
Date Code:
3BNQ5CEV
TEE
PRESSURE SENSOR CORD ON BOX
POWER CABLE
SERIAL NUMBER
3/4" x 1/2" BUSHING
1/2" x 1/4" BUSHING
NOT CONNECTED
ZURN WILKINS
1
www.zurn.com
