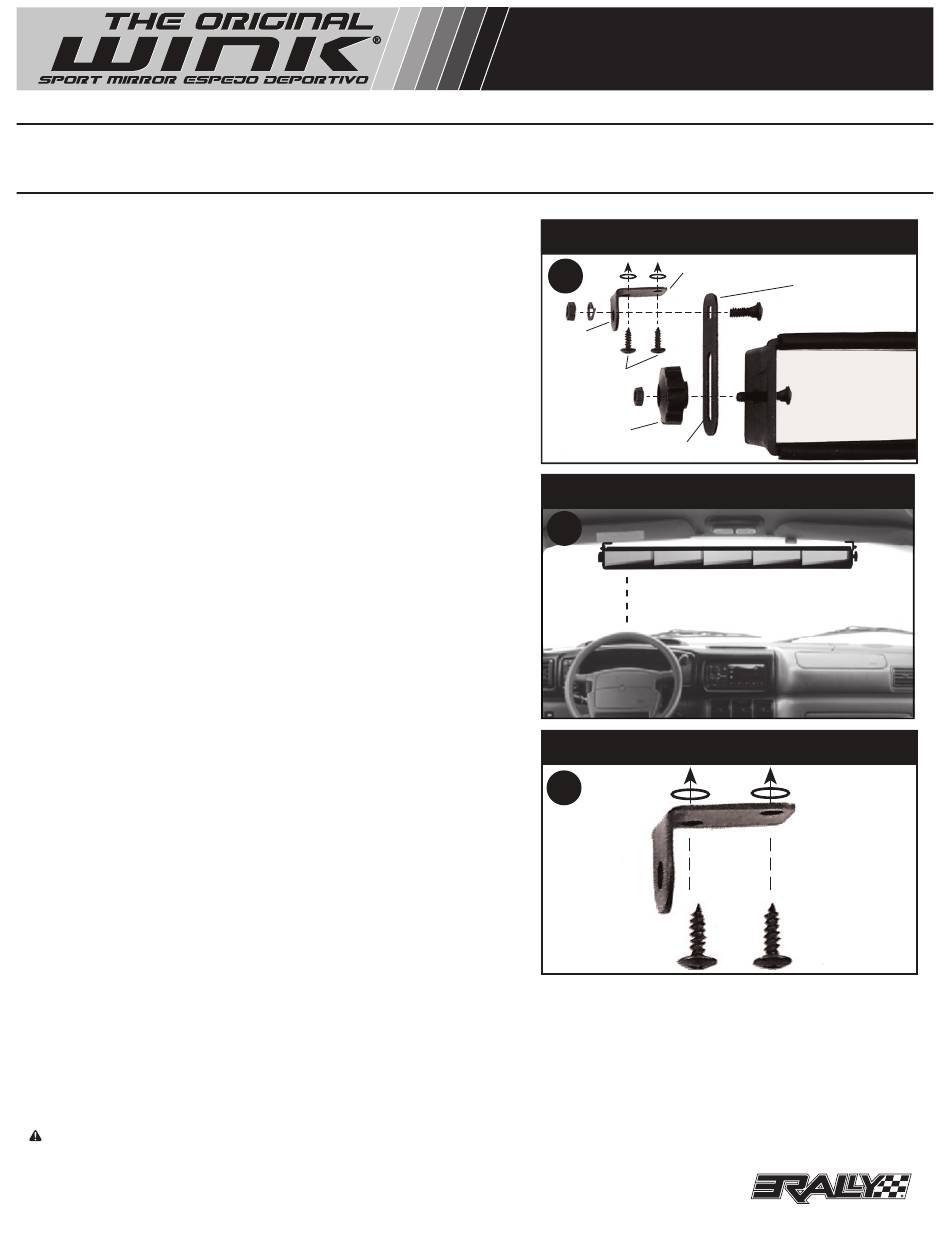

WINK 93503 Quick Manual

You may also mount the mirror directly to the windshield with Windshield Mount Kit #93503.
(2 required. Sold Separately.)
INSTALLATION: Read all instructions before beginning installation.
1. Assemble the parts as shown in Diagram A.
2. Tighten all bolts and end knobs finger tight.
3. With your finger, feel for metal strip under roof fabric just above top of
windshield. Your Mirror should be attached to this metal strip. If your car
does not have this header, attach to the metal strip surrounding windshield,
making sure to avoid windshield area.
4. Place assembled mirror in position as shown in Diagram B. Generally,
the right edge of the first mirror should be aligned with the center of the
steering column. Depending on preference, you may move the mirror
slightly to the right of center of the column.
5. Before marking mounting hole locations for drilling, be certain to avoid
contacting edge or surface of windshield. Contacting windshield with
drill bit or screw may cause cracks in windshield. Hold mirror in position
with one hand and using mounting brackets as template, mark 4 screw
locations (2 on each end) for drilling into metal strip under the roof fabric.
Carefully drill (4) 1/8" holes.
6. Remove the mounting brackets from the assembled Mirror and fasten
them in position with sheet metal screwsas shown in Diagram C. Make
sure these mounting brackets are very securely fastened to prevent
mirror from falling. Do not over tighten to avoid stripping threads.
7. Attach the Mirror to the mounting brackets which are now in place and
adjust to a suitable position. Tighten all nuts. Do not over tighten to avoid
stripping threads or breaking knob.
8. When adjusting your Mirror for other drivers, it is essential to loosen both
end knobs before adjusting mirror so you do not loosen or pull out
mounting brackets from metal strip.
TWO YEAR LIMITED WARRANTY
Rally Manufacturing is dedicated to making high quality products for every consumer. We are so confident in the quality of our merchandise that we offer a two year limited warranty with this product . That means should you find
any defects with the item you purchased, we will repair it or replace it. Proof-of-purchase (receipt) is necessary to validate warranty. Please mail all defective products to Rally Manufacturing Inc., 7200 Corporate Center Drive,
Suite 308, Miami, FL 33126. Attn: Customer Service. Include a letter with your contact information: email, name, address, phone number and problem with the product. Do not send any product to Rally Manufacturing, Inc. without
first contacting Customer Service department.REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT OR COMPONENT PROVIDED UNDER THIS WARRANTY SHALL NOT APPLY IF THE PRODUCT: (a) IS USED FOR COMMERCIAL
PURPOSES AND/OR FROM IMPROPER USE IN AN UNSUITABLE ENVIRONMENT (b) IS MODIFIED OR TAMPERED WITH EITHER INTERNALLY OR EXTERNALLY; (c) IS DAMAGED RESULTING FROM MISUSE, NEGLIGENCE, LACK OF
REASONABLE MAINTENANCE AND CARE, OR BY OTHER CAUSES UNRELATED TO DEFECTIVE MATERIAL OR WORKMANSHIP; (d) IF THE PRODUCT HAS BEEN SUBJECTED TO FIRE, WATER, OR GENERAL CORROSION. This warranty
gives you specific legal rights, and you may also have other rights which vary from State to State in the U.S.A. or province to province in Canada.
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
CUSTOMER SERVICE Monday - Friday 8:30am - 5:30pm Eastern Standard Time
For Questions or comments contact us at: www.rallymfg.com or call 1-800-965-4407
