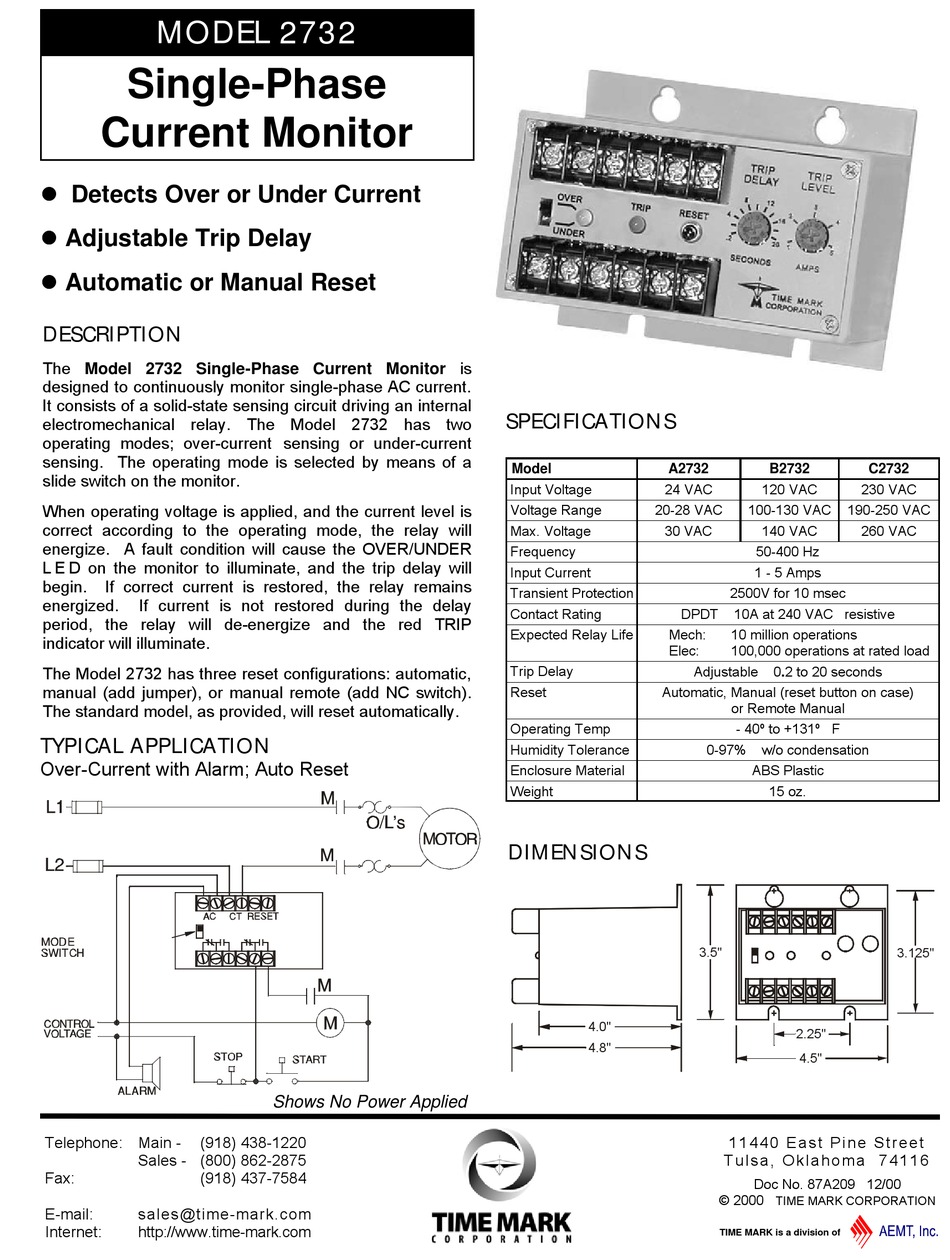

MODEL 2732
Single-Phase
Current Monitor
l l Detects Over or Under Current
l l Adjustable Trip Delay
l l Automatic or Manual Reset

DESCRIPTION

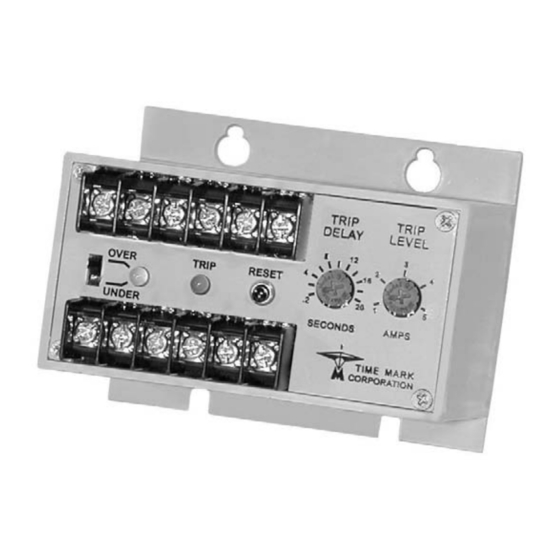

The Model 2732 Single-Phase Current Monitor is
designed to continuously monitor single-phase AC current.
It consists of a solid-state sensing circuit driving an internal
electromechanical relay. The Model 2732 has two
operating modes; over-current sensing or under-current
sensing. The operating mode is selected by means of a
slide switch on the monitor.
When operating voltage is applied, and the current level is
correct according to the operating mode, the relay will
energize. A fault condition will cause the OVER/UNDER
L E D on the monitor to illuminate, and the trip delay will
begin. If correct current is restored, the relay remains
energized. If current is not restored during the delay
period, the relay will de-energize and the red TRIP
indicator will illuminate.
The Model 2732 has three reset configurations: automatic,
manual (add jumper), or manual remote (add NC switch).
The standard model, as provided, will reset automatically.

TYPICAL APPLICATION

Over-Current with Alarm; Auto Reset
Telephone: Main - (918) 438-1220
Sales - (800) 862-2875
Fax: (918) 437-7584
E-mail: sales@time-mark.com
Internet: http://www.time-mark.com
Shows No Power Applied

SPECIFICATIONS

Model A2732
Input Voltage 24 VAC
Voltage Range 20-28 VAC
Max. Voltage 30 VAC
Frequency
Input Current
Transient Protection
Contact Rating DPDT
Expected Relay Life Mech:
Elec:
Trip Delay
Reset Automatic, Manual (reset button on case)
Operating Temp
Humidity Tolerance
Enclosure Material
Weight

DIMENSIONS

4.0"
4.8"
B2732 C2732
120 VAC 230 VAC
100-130 VAC 190-250 VAC
140 VAC 260 VAC
50-400 Hz
1 - 5 Amps
2500V for 10 msec
10A at 240 VAC resistive
10 million operations
100,000 operations at rated load
Adjustable 0.2 to 20 seconds
or Remote Manual
- 40º to +131º F
0-97% w/o condensation
ABS Plastic
15 oz.
3.5"
2.25"
4.5"
1 1 4 4 0 E a s t P i n e S t r e e t
T u l s a , O k l a h o m a 7 4 1 1 6
Doc No. 87A209 12/00
© 2000
TIME MARK CORPORATION
TIME MARK is a division of
3.125"
