- Page 1 IPDA053 QUICK START GUIDE...
- Page 2 CUSTOMER INSTRUCTION Set up device (including battery) immediately upon receiving device. ● Do not allow the battery to be completely drained during storage. Do not charge device at extreme temperature (below 5 Celsius and ● above 59 degree Celsius). The battery should only be using by the power adaptor or cradle ●...

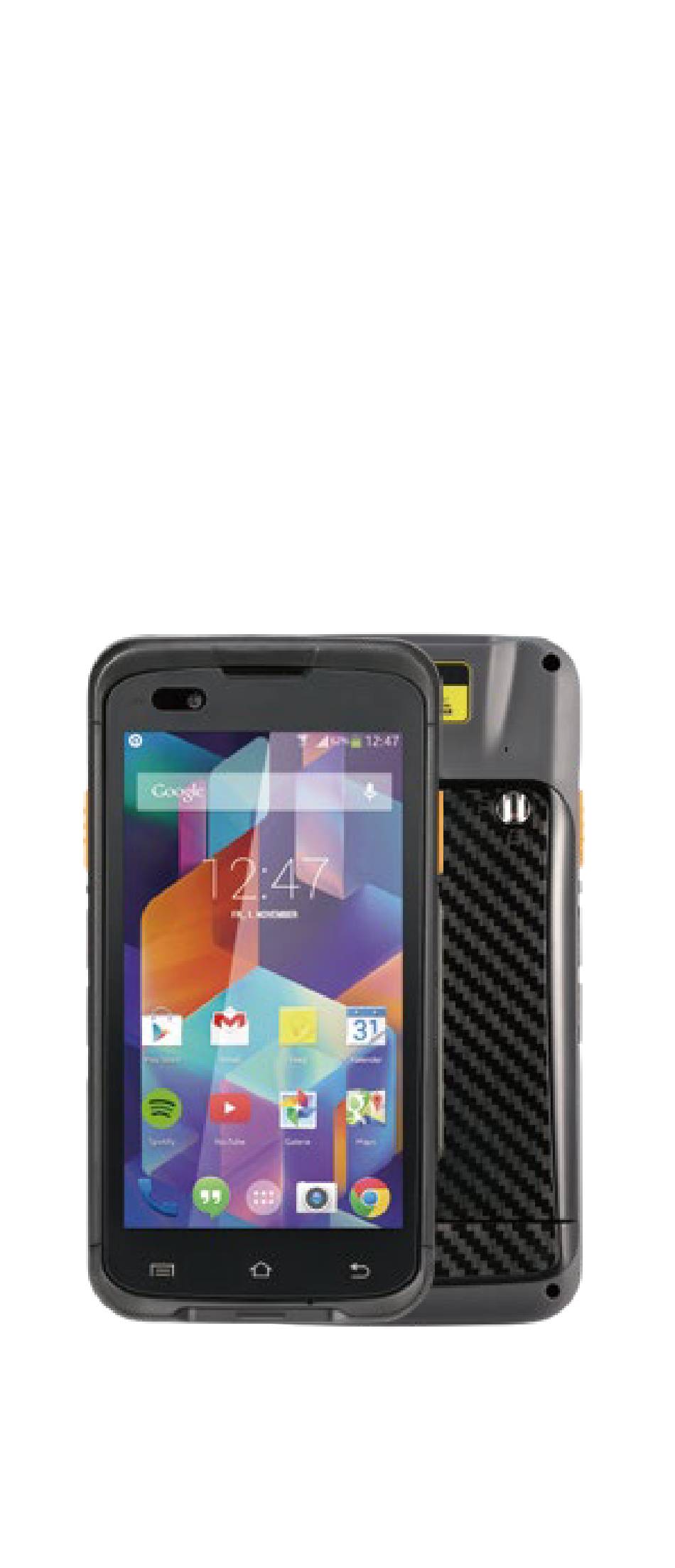

- Page 3 APPEARANCE AND BUTTONS Front view System LED Front Camera Touch Screen Menu Home Back RED: Charging GREEN: Charging completed/Running Side view Earphone Port Micro USB Port Scanner POGO Pin ● ●...
- Page 4 Scan Button Scan Button User-defined Button Volume Button Power Button Rear view Speaker TF Slot Knob Micro SIM Slot 1 Rear Camera & Flash Micro SIM Slot 2 Battery Connector ● ●...
- Page 5 Features Power button: Turns the display on and off. Press and hold to reset the device, power off or swap battery. Speaker: Provides audio out-put for video and music playback. Touch screen: Displays all information needed to operate Battery connector: Pull up to remove the battery Notification LED:Indicates system status while application generated notifica- tions(programmable).
- Page 6 CHARGING USING POWER ADAPTOR Connect the USB cable into the device and the power adaptor. Red LED indicates charging and Green LED indicates fully charge. USB Data Cable Power Adaptor CHARGING USING CRADLE Charging by USB Data Communication Cradle Place the device in the USB Data Communication Cradle which comes in the box Dock Slot Battery Slot...
- Page 7 FAQs 1. How to restore factory settings? Select Setting-Backup&reset-Factory date reset 2. Why can not open the PDA? If the new device does not turn on, please make sure the sticker on battery has ● been removed. Pressing the power button about 4 seconds, until the screen showing contents, ●...
- Page 8 Click here for 7 times To turn on debug mode 6. If the device cannot scan barcode, please do the following steps: Check each scan button can be used normally. ● Check the scan engine supports the bar code. ● Check the scanning length and bar code is clear and unobstructed.
