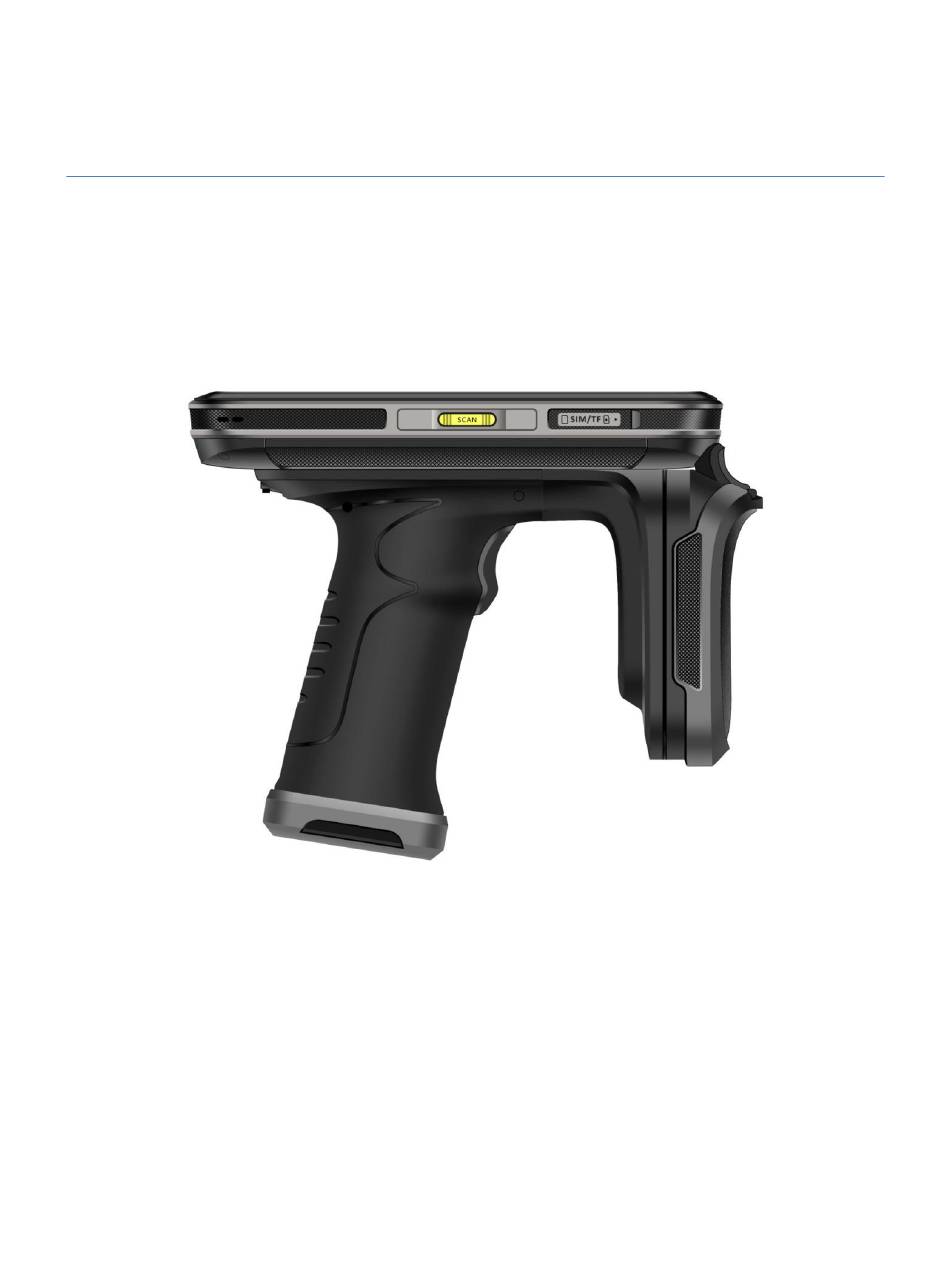

- Page 1 Mobile Data Terminal IPDA051 User Manual...
-
Page 2: Table Of Contents
Contents Chapter 1 Product Introduction....................2 1.1 Brief Introduction......................... 2 1.2 Precaution Before Using Battery..................3 1.3 Charger..........................3 1.4 Notes............................. 4 Chapter 2 Installation Instructions....................5 2.1 Appearance.......................... 5 2.2 Install Micro SD and SIM Cards..................6 2.3 Battery Charge........................6 2.4 Buttons and Function Area Display.................. -
Page 3: Chapter 1 Product Introduction
Chapter 1 Product Introduction 1.1 Brief Introduction IPDA051 device is a smart mobile PDA that integrated with various features such as wireless communication, data acquisition, wireless transmission, data processing and UHF scanning etc. It is configured with Android 6.0 OS. With a set of advanced data acquisition options, IPDA051 can be operated in various industries to acquire precise and abundant datum automatically. -
Page 4: Precaution Before Using Battery
1.2 Precaution Before Using Battery When you use IPDA051 for the first time, please make sure the insulation sticker on the battery has been removed. Do not leave battery unused for long time, no matter it is in device or inventory. -
Page 5: Notes
1.4 Notes Note: Using the incorrect type battery has danger of explosion. Please dispose the used battery according to instructions. Note: Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited. -
Page 6: Chapter 2 Installation Instructions
Chapter 2 Installation Instructions 2.1 Appearance... -
Page 7: Install Micro Sd And Sim Cards
Make sure not to use other adaptors to charge the device. 2.4 Buttons and Function Area Display IPDA051 has 4 side buttons, 4 main buttons and trigger on pistol, UHF scanning area, 2D scanning module, HD camera and flashlight locate on the top. -
Page 8: Chapter 3 Call Function
Chapter 3 Call Function 3.1 Calling Numbers 1. Click icon 2. Click number key to input phone numbers. 3. Click icon to call. 4. Click icon to end call. 3.2 Contacts 1. Click contacts to open contacts list. 2. Click icon to add new contacts. -
Page 9: Chapter 4 Barcode Reader-Writer
Chapter 4 Barcode Reader-writer 1. In App Center, to open 2D barcode scan test. 2. Press “SCAN” button or click scan key to start scanning, the parameter “Auto interval” can be adjusted. Caution: Please scan codes in correct way otherwise the scanning will be failed. -
Page 10: Chapter 5 Infrared Read-Write Function
Chapter 5 Infrared Read-write Function 1. Open infrared function in App Center. 2. Click button “Open” to start infrared scanning function. Click “LED” for infrared scanning aim assist. Depending on different application status to compile different commands to realize infrared read and write function. -
Page 11: Chapter 6 Rfid Reader
Chapter 6 RFID Reader 6.1 UHF Click App Center, open “UHF” to read and write, kill and lock UHF tag. -
Page 12: Chapter 7 Other Functions
Chapter 7 Other Functions 7.1 PING Tool 1. Open “PING” in App Center. 2. Setup PING parameter and select external/internal address. -
Page 13: Bluetooth
7.2 Bluetooth 1. Open “BT Printer” in App Center. 2. In the list of detected devices, click the device that you want to pair. 3. Select printer and click “Print” to start printing contents. -
Page 14: Gps
7.3 GPS 1. Click “GPS” in App Center to open GPS test. 2. Setup GPS parameters to access GPS information. -
Page 15: Volume Setup
7.4 Volume Setup 1. Click “Volume” in App Center. 2. Setup volume by requirements. -
Page 16: Sensor
7.5 Sensor 1. Click “Sensor” in App Center. 2. Setup the sensor by requirements. -
Page 17: Keyboard
7.6 Keyboard 1. Click “Keyboard” in App Center. 2. Setup and test the main value of the device. -
Page 18: Network
7.7 Network 1. Click “Network” in App Center. 2. Test WIFI/Mobile signal by requirements. -
Page 19: Keyboard Emulator (Optional)
7.8 Keyboard Emulator (optional) The keyboard emulator can be used in multiple operating background and output formats directly. And it includes Prefix/Suffix/Enter/TAB. Notes: For pistol grip mode (Quad-core CPU) input in KeyCode (Octa-core CPU) input in KeyCode Please check Keyboard emulator manual for more details. https://my.pcloud.com/publink/show?code=XZ0Xox7ZYJBGkKUqTd5uo9Fw50xRAXeJ0wR7 (Pistol setting in keyboardemulator APP) -
Page 20: Chapter 8 Device Characteristic
Chapter 8 Device Characteristic Physical characteristics Size 164.2mm*78.8mm*17mm Weight <654g(battery included) Display 5.2 inch，IPS FHD 1920*1080P Touch panel 4 main keyboards, 1 power button, 2 scan buttons, 1 multi- function button Battery Li-ion, rechargeable, 8000mAh Expansion Supports up to 32 GB Micro SD card Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card Audio... - Page 21 Communication 2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B1, B3, B5, B7, B8, B20, B40 2G: 850/900/1800/1900MHz 3G: 850/900/1700/1900MHz 4G: B2, B4, B7, B12, B17 2G: 900/1800MHz 3G: 900/1900/2000/2100MHz 4G: B1, B3, B5, B38, B39, B40, B41 WLAN IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna WPAN Bluetooth 4.0 Data collection...
