Windsor SENSOR SR18 Quick Start Manual

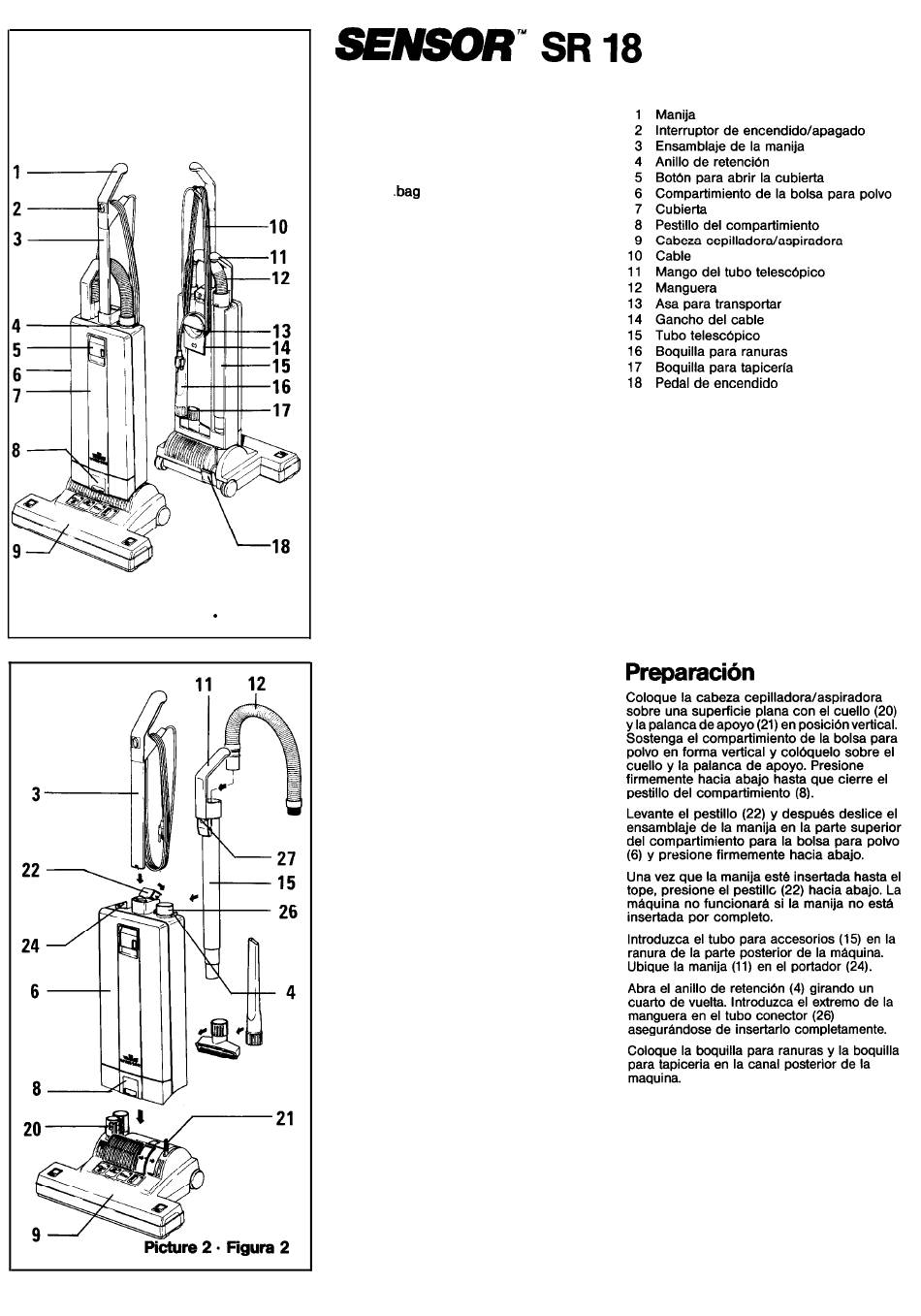

Picture 1 - Figura 1
1
Handle grip
2 On/Off switch
3
Handle assembly
4
Retaining ring
5 Cover release
6 Dust .bag housing
7 Cover
8 Housing release
9 Brush/suction Head
10 Cable
11
Telescopic handle grip
12 Hose
13 Carrying handle
14
Cable hook
15 Attachment tube
16 Crevice nozzle
17 Upholstery nozzle
18 Foot pedal

Preparation

Place the brush/suction head on a flat surface
with the neck (20) and the support lever (21)
upright. Hold the dust bag housing vertically
and place over neck and support lever. Push
firmly down so that the housing release (8)
snaps closed.
Lift the catch (22) then slot the handle
assembly into the top of the dust bag housing
(6) and push firmly down.
When the handle has been pushed down as
far as it will go press catch (22) down. If the
handle is not pushed fully down the machine
will not work.
Insert attachment tube (15) into the channel at
the back of the machine. Locate the handle
grip (11) on the holder (24).
Push the black end of the hose into the
connecting tube (26) so that it clicks into
place.
Insert crevice nozzle and upholstery nozzle
into the recesses in the back of the machine.
