Summary of Contents for Stinger SPXM1

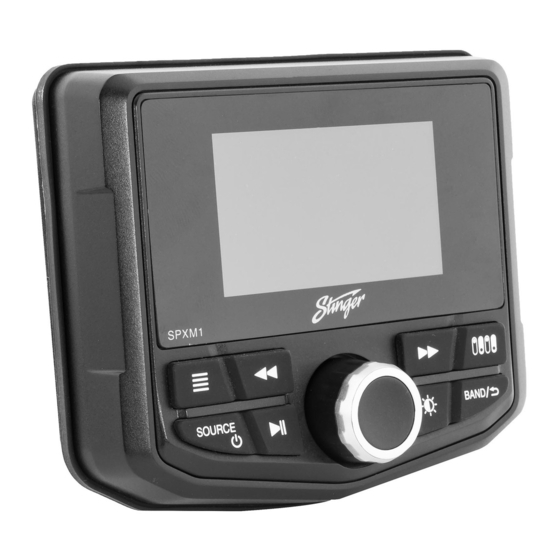

- Page 1 ® SPXM1 P O W E R S P O R T S A N D MARINE MEDIA PLAYER IPX RATED - SWITCH COMMAND USER GUIDE StingerElectronics.com...
-
Page 2: Table Of Contents
STINGER. This product is intended for off-road Settings............16 use and passenger use only. Specifications..........18 Wiring Diagram..........20 Stinger is a Power Brand of AAMP Global 15500 Lightwave Drive, Suite 202 Clearwater, Florida 33760 ©2020 Stinger Electronics StingerElectronics.com StingerElectronics.com... -
Page 3: Controls
SPXM1 ® Controls | Functions Tune/Track Down Button Tune/Track Up Button Media control: Previous, Back, REW Media control: Next, Forward, FWD Press & hold function in select sources Press & hold function in select sources Accessory Controls | Battery Voltage... -
Page 4: Selecting A Source
[BAND/BACK] button to exit. NOTE: If STINGER does not apear in the list of available devices, confirm bluetooth is turned on by pressing and holding the [MENU] button to access the global settings. ON should be Rotate [M-KNOB] to cycle Highlight the desired setting value highlighted orange under BT Pairing. -
Page 5: Am/Fm/Wb Radio
SPXM1 ® AM/FM/WB RADIO Source Stereo Indicator Local (ON) Press the [SOURCE] button and select RADIO. Band/Bank Changing Radio Bands Current Station Press the [BAND] button to cycle Station Information through radio bands and presets (FM1-FM2-FM3-AM1-AM2-WB) Station Presets Tuning Radio Stations TUNE UP/DOWN Press [... - Page 6 SPXM1 ® USB Media Player Playback Current song number Icons Number of songs Source Play Insert a USB drive with media and press the [SOURCE] button and select USB. Pause Current Track Name, If audio files are found they will...
-
Page 7: Bluetooth Music
SPXM1 ® Playback Current song number Icons Number of songs Source Bluetooth Music Play Pause When a device is Paired, it will Current Track Name, Album/Song Repeat ALL be selectable by pressing the Artist, Album Artwork [SOURCE] button and selecting Time Bar BT Music. -
Page 8: Aux Input
(Switch Command) If a audio source is connected to the auxillary input (AUX), The SPXM1 is capable of controlling up to 4 external devices when press the [SOURCE] button and select AUX. used in conjunction with the optional SwitchHUB (SPXSH440) four output solid state switcher. - Page 9 SPXM1 ® SETTINGS > TUNER REGION Settings Radio tuner can be set by region/country USA, Europe, Russia, Latin, Asia, Japan, Mideast, Australia Press & Hold the [MENU] button for 3 seconds to access SETTINGS SETTINGS > SOFTWARE (See page 7 for Navigating and Changing Settings) SOFTWARE >...
- Page 10 SPXM1 ® Specifications General AUX Input Operating Voltage: 10.5V - 16V Location: Rear Fuse: 20 AMP Input Type: Stereo RCA Display: 2.7 inch Color TFT Backlit Water Resistant Panel (IPX-6) Camera/Video Input Remote Control: Wired (Optional) Location: Rear Input Type: RCA...
- Page 11 ® Wiring Diagram ACCESSORY CONTROL WIRING The SPXM1 has 4 switchable outputs/triggers (FIG. A) that can be used to control external accessories such as lighting, audio or any other 12V accessory, when used with the optional SPXSH440 YELLOW - CAMERA / VIDEO INPUT VIDEO INPUT SwitchHub.
-
Page 12: Accessory Control
7-BAND GRAPHIC EQUALIZER WITH (8) MUSIC GENRE PRESETS SELECTABLE HIGH-PASS AND LOW-PASS CROSSOVERS ADJUSTABLE INPUT GAIN FOR EACH SOURCE MARINE SPECIALTY FEATURES: WIRED MARINE REMOTE COMPATIBLE (SOLD SEPARATELY) VOLTAGE GAUGE WITH LOW VOLTAGE ALERT UG-SPXM1 REV. 011221...
