Install Questions?
Call 888-704-3690 -or-

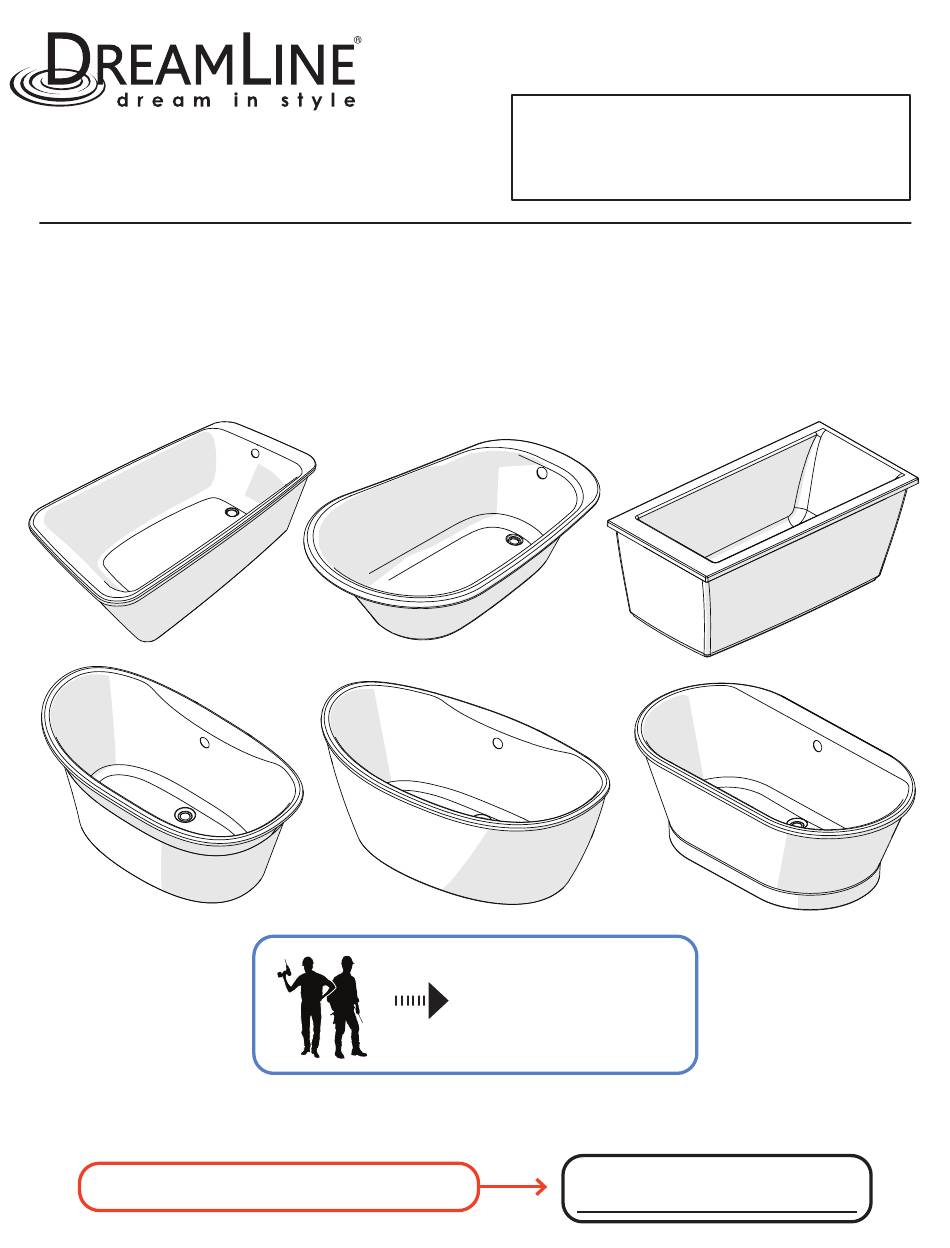

INSTALLATION INSTRUCTIONS
Email tubsupport@dreamline.com
FREESTANDING BATHTUB
MODEL
•
BTCB6041HFXXC00, BTCB6635HFXXC00 (Caribbean)
•
BTSC6032WFXXF00 (Seneca)
•
BTLV6032WFXXF00 (Levantine)
•
BTMO6032WFXXC00, BTMO6636WFXXC00 (Montego)
•
BTCA6032WFXXC00, BTCA6636WFXXC00 (Caspian)
A two person installation
is recommended
Read all instructions carefully before proceeding.
SAVE THIS GUIDE FOR FUTURE REFERENCE.
Serial Number
IMPORTANT
• Record the serial number
Advertisement
Table of Contents
Summary of Contents for Dreamline BTCB6041HFXXC00
- Page 1 Install Questions? Call 888-704-3690 -or- INSTALLATION INSTRUCTIONS Email tubsupport@dreamline.com FREESTANDING BATHTUB MODEL • BTCB6041HFXXC00, BTCB6635HFXXC00 (Caribbean) • BTSC6032WFXXF00 (Seneca) • BTLV6032WFXXF00 (Levantine) • BTMO6032WFXXC00, BTMO6636WFXXC00 (Montego) • BTCA6032WFXXC00, BTCA6636WFXXC00 (Caspian) A two person installation is recommended Read all instructions carefully before proceeding.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Tools and supplies . -
Page 3: Before You Begin
. The warranty does not cover damages or defects in the finish once the unit has been installed . DreamLine’s responsibility for shipping damages ceases upon delivery of the product in good order to the carrier . All complaints regarding damage due to transport must be made directly to the carrier . -
Page 4: Tools And Supplies
TOOLS ⅛" -drill bit Level Pencil Electric drill Safety equipment Screwdriver 30" 2 x 4 studs Utility knife Measuring tape Hole saw SUPPLIES Box of #8x1¾" Clear silicone sealant Wooden shims flathead screws Freestanding Tub Installation Manual DreamLineShowers.com... -
Page 5: Unpacking The Unit
STEP 1 | Unpacking the Unit Follow all instructions and check them off as you go. Cut the cardboard box so as to keep one side to Check me! protect the bathtub while is upside down . Turn the bathtub upside down . Unscrew the skirt from the wooden blocks . -
Page 6: Leveling Legs Adjustment
STEP 2 | Leveling Legs Adjustment ⅛" Place back the skirt in the inverted bathtub . Adjust the legs so that they exceed the top of the edge Check me! of the skirt by 1/8". You can use a 2x4 to take the measure as shown . -
Page 7: Bathtub Skirt And Drain Positioning
STEP 3 | Bathtub Skirt and Drain Positioning With the help of the bathtub apron, mark the center of the drainage line in relation with the Check me! desired position of the bathtub . See also the rough-in information for your model on our website. -
Page 8: Faucets Installation (Not Included)
STEP 4 | Installing Faucets (NOT INCLUDED) Check me! Faucet elements must be installed in the intended area . See also the rough-in information for your model on our website. Before drilling, position the faucet base to make sure they line up with the predrilled holes . Mark the location of the faucets on the unit and drill 3/16"... -
Page 9: Bathtub Preparation And Installation
STEP 5 | Bathtub Preparation and Installation Install the waste and overflow and faucets according Check me! to the manufacturer's instruction manuals . Install the valves and faucets at this stage . For models BTSC6032WFXXF00 (Seneca), BTMO6636WFXXC00, BTMO6032WF (Montego), BTCA6032WFXXC00, and BTCA6636WFXXC00 (Caspian) Standard drainpipe and overflow compatible with end-drain Standard drainpipe and overflow compatible freestanding bathtub models: BTSC6032WFXXF00 (Seneca) - Page 10 STEP 5 | Bathtub Preparation and Installation (CONTINUED) Top view Apply a silicone seal under the apron (optional) . Check me! According to bathroom flooring, use proper screws (not included) to secure the skirt to the floor. Make sure the skirt is level . Silicone Skirt Add two spacers (example 2x4) on the skirt ends...
- Page 11 STEP 5 | Bathtub Preparation and Installation (CONTINUED) Check me! Remove the spacers . Make sure all the legs are in contact with the ground, so that the bathtub is not supported by the skirt (see cut view below). The bathtub must be tested before installation is complete.
- Page 12 TROUBLESHOOTING TOUBLESHOOTING Water accumulates around the drain and the bathtub does not completely empty. • Check that the installation is leveled and that the bathtub is well supported by the legs . With the help of level, place at the bottom of the bathtub, make sure to have a slight slope towards the drain .
-
Page 13: Warranty
. DreamLine is not liable for personal injuries or death to any person or for any direct, special, incidental or consequential damage, loss of time, loss of profits, inconvenience, incidental expenses, labor or material charges, or any other costs resulting from the use of the product or equipment or pertaining to the application of the present warranty, or resulting from the removal or replacement of any product or element or part covered by this warranty . -
Page 14: Troubleshooting And Maintenance
DreamLineShowers.com CUSTOMER SUPPORT CALL 888-704-3690 -or- EMAIL tubsupport@dreamline.com © 2021 DreamLine 3-30-2021...
