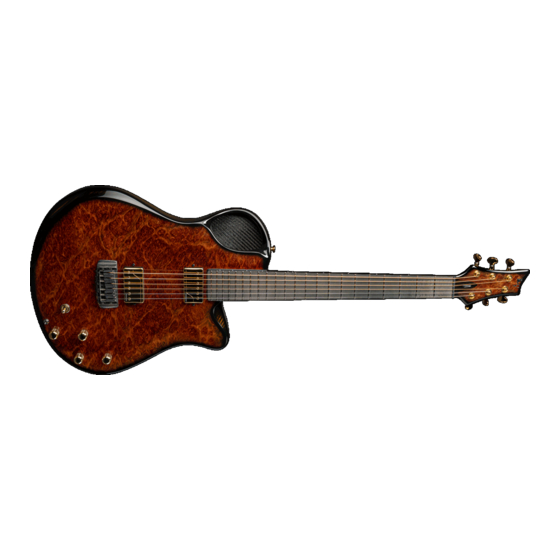

Summary of Contents for Emerald Virtuo
- Page 1 OWNER’S MANUAL CONTROL GUIDE, CABLING & SETUP CONFIGURATIONS WWW.EMERALDGUITARS.COM...
- Page 2 CONTROL GUIDE Volume Control - Graphtech Ghost Piezo Volume Control - Fishman Fluence Humbuckers + Push/Pull - Vintage or Modern Humbuckers Volume Control - Midi/Synth Tone Control - Fishman Fluence Humbuckers + Push/Pull Coil Splitting - Fishman Fluence Humbuckers 3 Way Piezo/Mix/Humbucker Selector Switch 3 Way Humbucker Selector Switch...
- Page 3 CABLING - STEREO GUITAR CABLE In order to send the signal of the Humbucker and Piezo pickups to individual sources (i.e Electric Amp and Acoustic Amp/PA), you will need a “Stereo Guitar Cable”. • The simpliest solution is to use a “Stereo to x2 Mono Cable”, with Stereo 1/4 inch Jack one end, splitting to 2 Mono 1/4 inch Jacks. •...
- Page 4 • Stereo Guitar Cable + 13 Pin Hexpander Output CONFIGURATIONS: • Route Fishman Humbuckers to a Guitar Amp SETUP A • Route Graphtech Piezo to DI or Acoustic Amp or PA • Ruute 13 Pin cable to Guitar Synth Unit (Boss SY1000 or Roland GR55) - Synth Unit to DI/Acoustic Amp/PA FISHMAN HUMBUCKERS SIGNAL...
- Page 5 • Mono Guitar Cable + 13 Pin Hexpander CONFIGURATIONS: • Route Mono cable to Guitar Amp OR DI/PA SETUP B • Route 13 Pin cable to Guitar Synth Unit (Boss SY1000 or Roland GR55) - Synth Unit to DI/Acoustic Amp/PA FISHMAN HUMBUCKERS &...
- Page 6 • Stereo Guitar Cable CONFIGURATIONS: • Route Fishman Humbuckers to a Guitar Amp SETUP C • Route Graphtech Piezo to DI or Acoustic Amp or PA • No Synth in use GRAPHTECH PIEZO SIGNAL FISHMAN HUMBUCKERS SIGNAL ELECTRIC GUITAR AMPLIFIER ACOUSTIC GUITAR AMPLIFIER GRAPHTECH...
- Page 7 • Mono Guitar cable CONFIGURATIONS: • Route Fishman Humbuckers and Graphtech Piezo to a Guitar Amp/DI/PA SETUP D • NO Synth in use FISHMAN HUMBUCKERS & GRAPHTECH PIEZO SIGNAL ELECTRIC GUITAR AMPLIFIER FISHMAN HUMBUCKERS & GRAPHTECH PIEZO SIGNAL STANDARD MONO GUITAR CABLE DI BOX SYSTEM...
- Page 8 • 13 Pin Hexpander Only CONFIGURATIONS: • Route 13 Pin Cable to GR55 Guitar Synth SETUP E • Guitar out of GR55 to Guitar Amp sends Piezo and Humbucker signals individually from Synth signal • Synth output sends synth only to DI/Acoustic Amp/PA L/MONO: MIDI SYNTH SIGNAL FISHMAN...
