Summary of Contents for Heraeus Soluva Air W

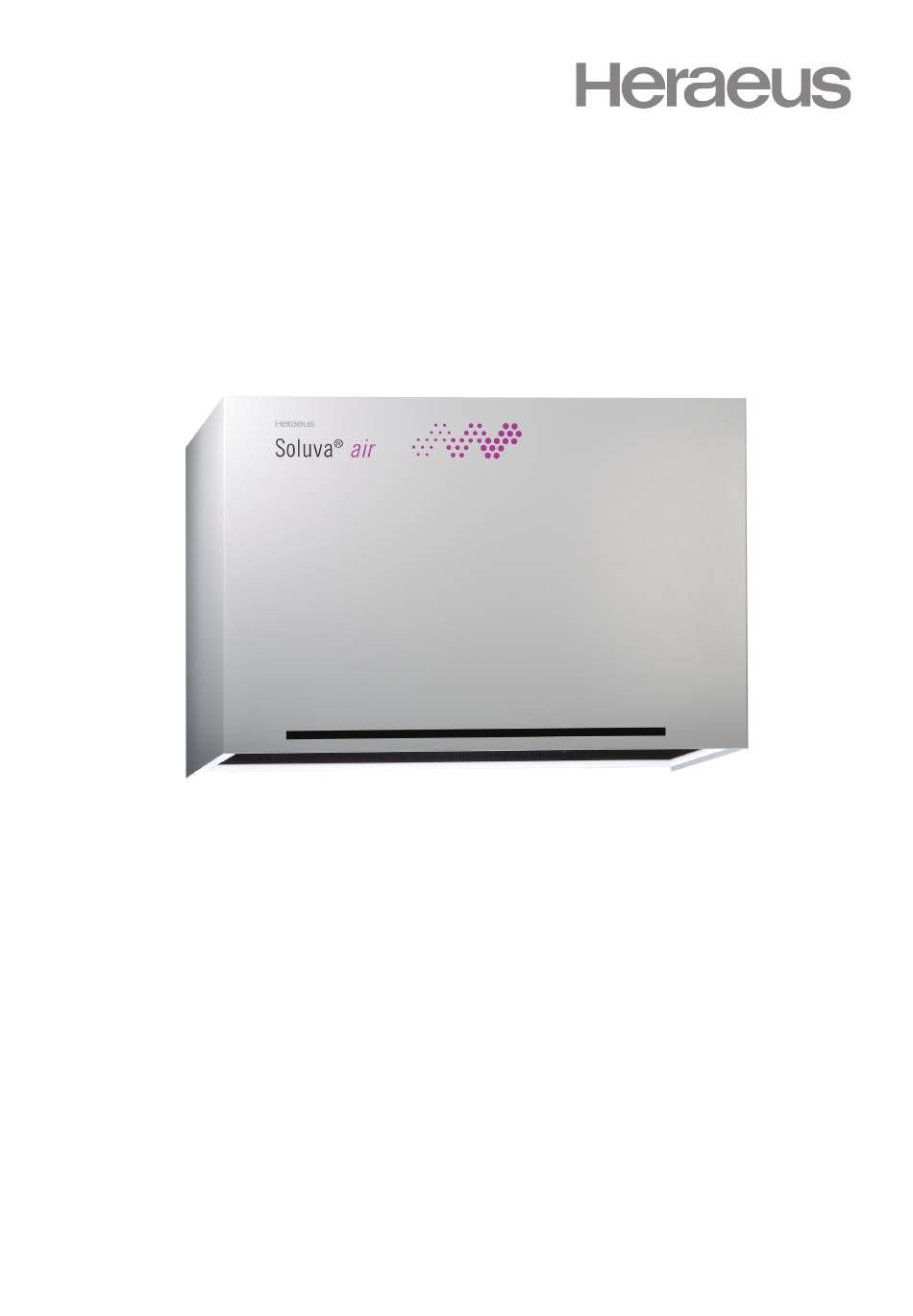

- Page 1 Heraeus Noblelight Instructions ® Soluva Air W UV-C Air Purification Unit Keep for future reference IPS_Man_20003342641 V01 en 03.21...
- Page 2 Manufacturer Heraeus Noblelight GmbH Customer Service Soluva Heraeusstraße 12-14 63450 Hanau, Germany Phone: +49 6181 35-5522 Mail: service@heraeus-soluva.com www.heraeus-noblelight.com/soluva Servicing If you have any questions regarding repair, spare parts, installation or initial operation, please contact our service team: ( +49 6181 35-5522...
- Page 3 Available language versions of the operation manual www.heraeus-noblelight.com/soluva-manuals Heraeus Noblelight GmbH retains all rights to this operation manual. The text, information and illustrations in this manual must not be reproduced, distributed or disclosed to third parties or used without authorisation for purposes of competition.
- Page 4 è Make sure the operation manual can be consulted without a problem at any time during the service life of the product. NOTICE! Heraeus Noblelight cannot be held liable for any damage or disturbance of operations caused by non-compliance with the instructions given in this opera- tion manual.
-
Page 5: Table Of Contents
Table of contents 1 Introduction....................2 Product description................. 2.1 Intended use ..................2.2 Technical data ................... 3 Safety instructions .................. 10 3.1 List of the symbols used ..............10 3.2 Personnel qualification............... 11 3.3 Basic safety instructions ..............11 4 Transport....................13 5 Installation.................... -
Page 6: Introduction
UV-C air purification unit made by Heraeus Noble- light. Heraeus Noblelight is a globally leading company today. 120 years ago, we invented a UV lamp. Our products stand for highest quality, safety and effectiveness of special light applications. Our lamps and devices have been developed and are produced in Ger- many. - Page 7 November 2020 by the interior room air hygiene commission of the German Federal En- vironmental Agency. We are convinced that the UV-C technology is the best technical solution for cleaning surfaces and air. ® Have fun with your Heraeus Soluva device. Yours faithfully, Heraeus Noblelight IPS_Man_20003342641 V01 en 03.21 Page 7 of 36...
-
Page 8: Product Description
Product description ® Soluva Air W is a product of Heraeus Noblelight for the disinfection of air in closed rooms. This product allows dry disinfection without chemicals. The UV lamps contained in this device destroy the structure of the microorganisms' DNA by using highly disinfectant UV radiation of the wavelength 254 nm (ozone-free). -
Page 9: Technical Data
DANGER Explosion hazard è Use in explosion hazard areas is prohibited. 2.2 Technical data Weight 35 kg Material Plastic, aluminium, stainless steel Colour RAL 7035 light grey (5133708) RAL 9016 traffic white (5142229) Air flow rate Min. 100 m /h; max. 400 m Noise at optimal air circulation: 39 db(A) or higher (depending on setting, meas-... -
Page 10: Safety Instructions
Ambient conditions Temperature in operation Min. 0°C; max. 35°C Relative humidity 25%-80% (non-condensing) Safety instructions è Observe the safety instructions. ð Non-observance of the safety instructions causes hazards to persons, the environment and the product. 3.1 List of the symbols used Various symbols are used in this operation manual to identify the remaining risks of the different hazard levels. -
Page 11: Personnel Qualification
Mandatory action symbols Read the instruction manual. Notes regarding optimal use. Wear hand protection. Wear safety glasses. 3.2 Personnel qualification Action Personnel qualification Electrical connection Use the connecting cable supplied. Only if a ready-made cable provided by the customer is used, electrical connection must be made by a quali- fied electrician. - Page 12 Risk of electrical shock DANGER Dangerous voltage Risk of electric shock when working on live components. Danger to life. è De-energise the product. è Secure against restarting. è Check the product is de-energised. Health hazard CAUTION Mercury The UV lamps contain mercury due to the process. The mercury may be re- leased if the UV lamps are mechanically destroyed.
-
Page 13: Transport
Danger to eyes and skin Operation of the device is absolutely safe if the instructions given in this operation manual are followed. CAUTION UV radiation The air is cleaned by means of UV lamps. UV radiation may cause damage to eyes and skin. è... -
Page 14: Installation
Installation Location within the room (top view) Correct Wrong Soluva® Air W Soluva® Air W Air outlet Air outlet Air outlet Soluva® Air W Soluva® Air W Soluva® Air W Soluva® Air W Air outlet Air outlet Air outlet Air outlet NOTICE! If possible, install the device at the long side of the room. - Page 15 ® è Position the Soluva Air W in such a way that the recommended minimum clear- ances to ceiling, floor and openings on the side will be observed. See the following pictures. Ceiling > 400 > 400 Dimensions in mm Floor Swivel area ³...
- Page 16 Suspending the device WARNING Danger of injury Secure fastening of the device is not guaranteed if it is mounted improperly. The device may fall down and cause severe injury and/or damage to property. è Precisely determine the composition of the wall and choose appropriate mounting materials.
- Page 17 u Suitable means for marking è Drill six holes for the mounting rails (diameters appropriate for the plugs used). Use the enclosed drilling template or choose spacing according to the drawing. Projected outer contour of Soluva® Air W 1000 è Clean the bore holes and insert the enclosed or other suitable plugs. Wall Rear wall of Soluva®...
- Page 18 CAUTION! Hold the device fast and secure it (press it against the wall) until it is screwed tightly to the wall. Tighten the screws. è To open the device, slightly loosen the three screws at the upper side; they remain on the device (see picture). Page 18 of 36 IPS_Man_20003342641 V01 en 03.21...
- Page 19 è Open the hood towards the front (guided). è Fasten the device to all four holders of the mounting rail, using the M8 nuts. è Close the hood. The hood must engage audibly. The oblong holes of the hood must completely surround the three screws at the device.
-
Page 20: Operation
è If an extension cable is needed, it must have the following specifications: ð 16 A ð Min. cross-section 1.5 mm è Contact the service team if you have any questions. Operation The device will reach its optimal disinfectant effect only if the doors and win- dows are closed and the device is mounted in the optimal location (as specified in chapter Mounting [} 14], Location within the room). - Page 21 ð The internal fans are switched on. ð The UV lamps are preheated. After 15 seconds, the UV lamps are active and the LEDs are lit up blue. Optimising the air circulation What is important for an optimal cleaning effect is good air circulation that provides a constant flow of air but shall also not be unpleasant.
-
Page 22: Maintenance
Status/meaning Colour Status System is switched on and ready for operation. Green System is switched on and UV is on; no error. Blue System is switched on and UV is on; end of ser- Yellow vice life near (> 15,500 hours). Collective fault System is OK and UV is on, service life expired Purple... - Page 23 WARNING Hot surface The lamp and surfaces exposed to radiation can get very hot during operation. The radiation heats the components inside the housing. Contact with the hot surface may cause burns. è Do not touch hot surfaces. è Allow the product to cool down before you open it to carry out maintenance work (approx.
- Page 24 è Provide an appropriately secured stepladder for carrying out any work at the device. è Switch the device off at the mains switch, pull the mains plug and secure against re- starting. è To open the device, slightly loosen the three screws at the upper side; they remain on the device (see picture).
- Page 25 è Disconnect the UV lamp plug connection (contacting). è Cautiously remove the UV lamp from the retainer. Installing a new UV lamp è Establish the connection of the new UV lamp. è Insert the UV lamp into the retainer without canting it. è...
- Page 26 è The device is ready for operation and can be switched on again. Service team è Contact the service team if you have any questions or are uncertain. Please provide the following information when you contact the service team: Sticker at the control unit Control unit display Firmware version All error messages...
-
Page 27: Replacement Parts
7.1 Replacement parts Fan kit 5139709 Lamp kit 5139710 Electronic power supply (EPS) Operating controls 5139752 5139751 LOGO! with software 5139753 Light protection grid top 5139754 Light protection grid bottom Light protection grid front 5139756 5139755 Lamp retainer 5139757 Connecting cable 5139758 Hood RAL 7035 light grey Base plate 5139760 5139759... -
Page 28: Logo! Error Messages
LOGO! error messages General operation Arrow Keys Display ESC Key OK Key Fig. 1: View of Siemens LOGO! Fan 1 Fan 2 Fan 3 Lamp 2 Lamp 1 LOGO! Reset Fig. 2: View of the locations of the parts on/in the product Status messages The current messages are shown on the control unit display (LOGO!). - Page 29 Status Description Ready for operation System is switched on, UV lamp preheating phase. LED colour: green Lighting mode: permanent In operation System is switched on, UV lamps are active, no er- LED colour: blue ror. Lighting mode: permanent System fails to start up Main switch is set to ON, system does not react.
- Page 30 Status Description NOTICE! Reset must be performed only after lamp exchange. No action required. Collective fault (UV lamp) Malfunction at the device, system inactive. LED colour: red The following root causes may exist: UV lamp or Lighting mode: permanent electronic power supply (EPS). Root cause/action: Both UV lamps are defective and/or the electronic power supply (EPS) is defective.
- Page 31 Status Description Fan malfunction Malfunction of a fan, UV lamps are active, two of the LED colour: red/yellow three internal fans are active. Lighting mode: flashing 2 The airflow rate is reduced. seconds Root cause/action: Fan 1, 2 or 3 has failed. è...
-
Page 32: Disposal
Status Description Disposal è Dismantle the device safely and expertly. UV lamp RoHS The product is in scope of Directive 2011/65/EU (RoHS II), as amended and except for mercury, does not contain any of the restricted substances specified in Annex II to more than the maximum concentration values tolerated in homogeneous materials. -
Page 33: Ec Declaration Of Conformity
10 EC Declaration of Conformity Heraeus Noblelight hereby declares that this product complies with the Low-voltage Dir- ective, the EMC Directive and the RoHS Directive, and other regulations. The complete EU Declaration of Conformity will be provided on request. - Page 34 LOADS DUOPOWER Highest recommended loads for a single anchor. The given loads are valid for wood screws with the specified diameter. Type DUOPOWER 5 x 25 6 x 30 6 x 50 8 x 40 8 x 65 10 x 50 10 x 80 12 x 60 14 x 70...
- Page 35 IPS_Man_20003342641 V01 en 03.21 Page 35 of 36...
- Page 36 The Heraeus logo, Heraeus, and Noblelight are trademarks or registered trademarks of Heraeus Holding GmbH or its affiliates. All rights reserved. Das Heraeus Logo, Heraeus und Noblelight sind Zeichen oder eingetragene Marken der Heraeus Holding GmbH oder mit ihr verbundener Unternehmen. Alle Rechte vorbehalten.
