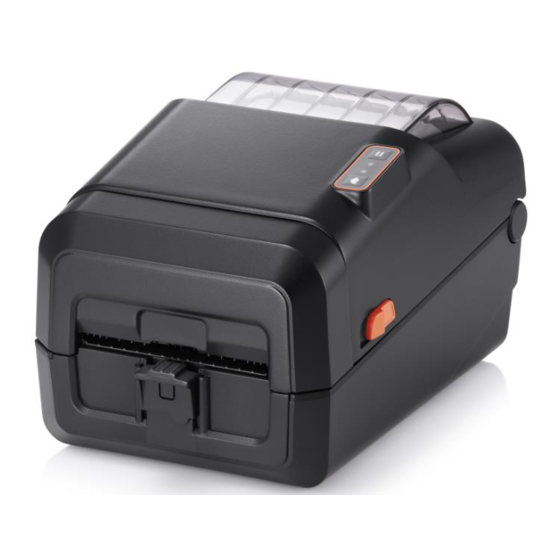

BIXOLON XL5-40CT Series Quick Start Manual

KN04-00210A (Ver.1.0)
1. After the Printer Power Switch Off at the rear of the Printer, Unplug the
Power Connector from the Power Jack.
Off
Power Switch Power Jack
2. Open the Printer, and while pressing the yellow circle on the Cover Cutter,
Disassemble the Paper Support upwards (yellow arrow).
Remove the Cover Cutter by pressing the Hook (in Red circle & arrow)
downward.
Paper Support
3. Remove one screw (in Red circle) using a screwdriver. Disassemble each
part in the order of Cover Front & Cover Taken with slightly raised upwards.
When disassembling the Cover Taken, be careful not to disconnect the
wire.
Cover Front
4. Remove two screw (in Red circle) using a screwdriver.
Disassemble the Auto Cutter forward while slightly raising it up.
Disassemble the Auto Cutter Wire from Cover Taken Connector and
Reassemble the new Auto Cutter.
Be careful to avoid tangling with other wires when shaping.
Ground Wire Auto Cutter
5. After twisting the Auto Cutter Wire (in Red square), put it in the inner space
(red circle).

How to Mount Auto Cutter

Power Connector
Cover Cutter
Cover Taken
Cover Taken Connector
Auto Cutter Wire
6. Reassemble the Cover Taken Hook(Red Circle parts) into the Printer(Yellow
Squares).
Be careful that the Wire does not get stuck.
7. Reassemble the Cover Front Hook (Red Circle parts) into the Printer (Yellow
Squares).
Be careful that the Wire does not get stuck.
8. While pressing Cover Taken & Cover Front down, reassemble (Red circle).
Be careful that the Wire does not get stuck.
9. Reassemble the Paper Support that was removed in step 2.
Reassemble the hook on the red circle of the Cover Cutter into the red
square hole.
See the User Manual for how to supply paper.
XL5-40CT Series
Cover Taken
Cover Front
Cover Taken
Cover Front
Cover Cutter
