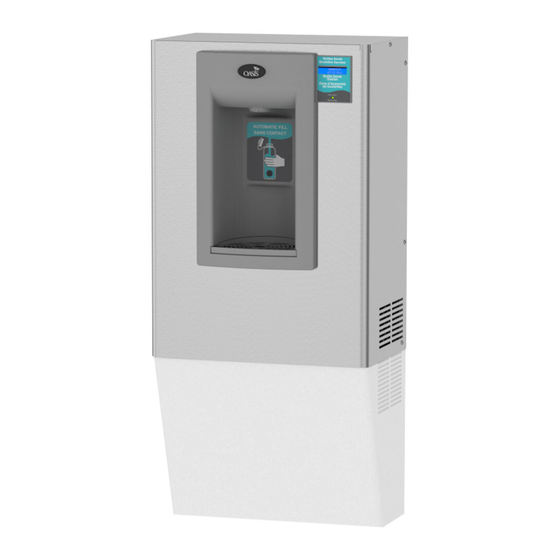

Oasis NNEBFEZ Installation Instructions Manual

Cooler to bottle filler conversion kit for single and split level elkay ez8 and lz8 water coolers
Hide thumbs

Advertisement

Quick Links

Download this manual

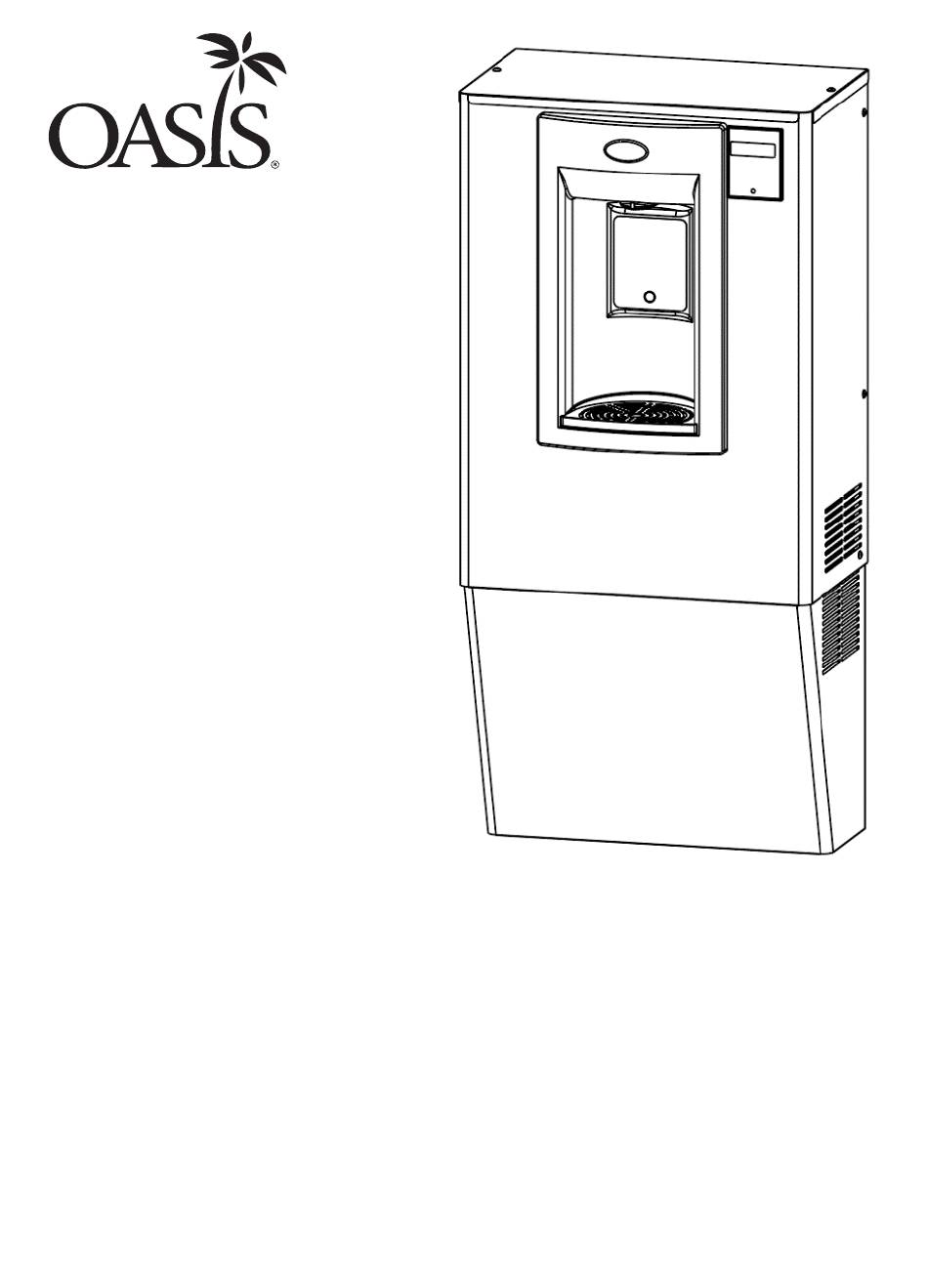

NNEBFEZ
Cooler to Bottle Filler Conversion Kit for Single and Split Level
ELKAY EZ8 and LZ8 Water Coolers
INSTALLATION INSTRUCTIONS
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the NNEBFEZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oasis NNEBFEZ

Summary of Contents for Oasis NNEBFEZ

  • Page 1 NNEBFEZ Cooler to Bottle Filler Conversion Kit for Single and Split Level ELKAY EZ8 and LZ8 Water Coolers INSTALLATION INSTRUCTIONS...

  • Page 2: Section 1: Getting Started

    Section 1: Getting Started What’s Included: ¼” Elbow 0.25” Terminals ¼” Union 10” of ¼” OD plastic tubing with 9” of tubing insulation Installation instructions Assembled NNEBFEZ Cabinet Side Mounting Strain Relief Drain Elbow Bracket Center Bracket P-Clip Drainpipe #8 Torx Screws...

  • Page 3: Section 2: Rough In Drawing

    Section 2: Rough In Drawing NNEBFEZ:...
  • Page 4 SINGLE LEVEL PREPARATION • Disassembly of ELKAY Cooler • Wiring • Water Lines...

  • Page 5: Section 3: Preparation

    Section 3: Preparation 1. Remove fountain wrapper. 2. Turn OFF water supply to the unit. Bleed any remaining pressure from the lines by activating the bubbler valve. 3. Disconnect power by UNPLUGGING the unit from the wall socket. Remove 4x #10 Hex Screws 4.
  • Page 6 Section 3A: Preparation 5. Remove fountain nose assembly. Tool Needed: T20 Torx bit A. Remove 4x #10 Torx screws from the fountain. B. Disconnect ONLY the nose assembly wires from the cold control and solenoid valve. Leave all other wires connected to the cold control and solenoid valve. For non- refrigerated models, unplug the unit.
  • Page 7 Section 3A: Preparation 6. After the nose assembly has been removed, cover the two bare terminals with the insulated female spade terminals (provided) for safety. NOTE: The image shown may differ from some models but the instructions will still apply. Cold Control Solenoid Valve...
  • Page 8 Section 3A: Preparation 7. Locate the solenoid valve on the Elkay unit. Disconnect both water lines from the solenoid valve. Join the two water lines together using a ¼” elbow fitting (provided) (Fig. 7A). Allow the cooling tank water outlet line to extend freely upward (Fig. 7B). Fig.

  • Page 9: Single Level Installation

    SINGLE LEVEL INSTALLATION • Assembly of NNEBFEZ Cabinet • Wiring • Plumbing...

  • Page 10: Section 4: Installation

    Section 4: Installation 1. The NNEBFEZ comes partially assembled for shipping. Remove the kit from the packaging and separate it into the assemblies and components shown below. Be sure not to misplace the provided mounting screws and insulated terminals. Tool Needed: T15 Torx bit...
  • Page 11 Section 4: Installation 2. Without taking the cooler off the wall, place the retrofit frame against the wall and set it onto the top flange of the cooler frame. Use the two windows at the bottom of the frame to position it so that the amount of the cooler frame showing is equidistant on both sides.
  • Page 12 Section 4: Installation 4. Assemble the center bracket to the holes in each of the cooler struts. Bracket Orientation #10 Hex Screws Struts - or - #10, T20 Torx Screws (original to fountain unit) 5. Assemble the two side brackets to the cooler frame using the slotted holes on the bottom with two #10 screws for each bracket.
  • Page 13 Section 4: Installation 6. Install the drip tray support bracket (keep drip tray pre-assembled) to the center bracket and frame using 4x, #8 Torx screws which are provided in the kit. Put BEHIND center bracket #8, T15 Torx Screws 7. Attach the filter guard bracket with 2x, #8 Torx screws to the frame and drip tray support bracket.
  • Page 14 Section 4: Installation 8. Attach one of the drain elbows to the drip tray stem. Insert the drainpipe provided into the elbow and then attach another elbow onto the pipe. Use the remaining drainpipe and connect the drip tray drainage system to the installed P-trap. NOTE: Drainpipes will need to be positioned and cut to length as needed.
  • Page 15 Section 4: Installation 9. Assemble NNEBFEZ wrapper to the installed frame. Rest the alcove on the drip tray and ensure the wrapper walls rest OUTSIDE of the frame and side brackets. NOTE: The drip tray will hold the weight of the wrapper but it is recommended to keep a hold on the unit during installation for safety.
  • Page 16 Section 4: Installation 10. If the outer edge of the drip tray is not properly aligned, loosen the screws on the back of the drip tray support bracket and slide the bracket forward or backward as needed. Then retighten the screws. Slotted Holes 11.
  • Page 17 Section 4: Installation 12. Attach the ¼” union fitting to the Cooling Tank water line out (Fig 12A). 13. Attach one end of the provided ¼” water line with insulation tubing to the solenoid valve located on the alcove, and the other end to the ¼” union fitting. Cut provided water line and insulation tubing as needed.
  • Page 18 Section 4: Installation 14. Guide the power cord down to the lower portion of the cooler. Ensure that the power cord does not become entangled with other components and ensure that the IEC connector is firmly installed into the power brick. Ensure this connection is secure...
  • Page 19 Section 4: Installation 15. Install the provided strain relief P-Clip to the power cord roughly 36” from the grounded plug. Attach it to the back side flange of the fountain frame with a #8 Torx screw. (Figure 14a) 16. Attach the ring terminal to the ground screw on the left side of the fountain strut through the lower flared hole using the provided #8 thread cutting hex Screw.
  • Page 20 Section 4: Installation 17. Turn on water supply and check for any leaks. 18. Ensure that nothing is obstructing the fan blade. 19. Plug the Elkay power cord into the wall outlet. 20. Test the contactless bottle filler by placing a water bottle into the alcove of the bottle filler.
  • Page 21 SPLIT LEVEL INSTALLATION • Assembly of Split Level NNEBFEZ Cabinet • Wiring • Plumbing...
  • Page 22 Section 5: Rough In Drawing NNEBFEZ Split Level: Left Side or Right Side High REQUIRES 2X NNEBFEZ UNITS NOTES: 1. * DIMENSIONS ARE REFERENCE ONLY. 2. ALL DIMENSIONS ARE IN INCHES. DIMENSIONS IN BRACKETS [ ] ARE IN MILLIMETERS.
  • Page 23 Section 6: Split Level Preparation 1. Remove the fountain wrappers and noses from each unit as shown on pages 5-6 to prepare the units for the NNEBFEZ installation. Unplug BOTH units and shut off their water source. Cover any bare terminals. Refer to page 7.
  • Page 24 4. The final result should have the water line from the cold tank water outlet connect to the tee and split off to the dummy unit and up to the top of the refrigerated unit. NNEBFEZ CONFIGURATION Tee Fitting Dummy Unit...
  • Page 25 Section 6: Split Level Preparation 5. Set the frame from the second NNEBFEZ kit onto the top of the dummy unit frame and mark the location for each all anchor. PRE-DRILL the holes for your chosen anchors (not included).
  • Page 26 6. Remove the dummy unit from the wall hanger and place it out of the way. Completely assemble a NNEBFEZ to the refrigerated side first (Refer to pages 10-17). Follow all steps on page 14 with the provided drain supplies, but do not connect to the P-trap or other existing pipes.
  • Page 27 Section 6: Installation 7. Take the second NNEBFEZ out of the carton and prepare the unit as shown on page 10. Assemble the side brackets and center bracket to the dummy unit. Refer to page 8. Lay the dummy unit on the floor and position the frame so that it sits on the top flange of the fountain frame, then assemble the drip tray assembly bracket to the unit.
  • Page 28 Section 6: Installation 10. Assemble the supplied P-Clip roughly 36” from the grounded plug on the supplied power cord, then secure the P-Clip to the inside surface of the horizontal strut of the fountain frame with a #8 Torx screw. NOTE: Only one of the two power cords from the kits will be used.
  • Page 29 Section 6: Installation 12. Disconnect the IEC connector from the power brick located behind the alcove. Set aside but do not discard the supplied power cord. Do not remove the power brick. IEC Connector 13. Secure the wrapper assembly to the unit by inserting the 6, #8 Torx screws into the frame and side brackets.
  • Page 30 Section 6: Installation 14. Pick up the assembly by taking hold of both the fountain frame and NNEBFEZ cabinet, then hang the fountain on the wall hanging bracket. NOTE: Ensure that the NNEBFEZ frame sits on top of the fountain frame.
  • Page 31 Section 6: Installation 16. After the NNEBFEZ has been hung, the fountain frame may not properly sit back on the wall. Loosen the side screws so that the fountain may rest against the wall, then re- tighten the side screws.
  • Page 32 19. Turn on the water supply and check for leaks. 20. Plug in the power cords for the refrigerated unit and the cord for the NNEBFEZ units. DO NOT plug in the dummy unit power cord. Check for any malfunctions.
  • Page 33 Section 6: Set-Up Guide For OASIS ® Hands-Free Bottle Filler Electronics •Factory default program settings are: • Bottle Count = 0.5L (1 Bottle) • Units - Gallons • Flow Rate = 1.2 GPM • Unfiltered unit • 20 second maximum dispense time •...

  • Page 34: Section 5: Parts Breakdown

    030152-009-SP Tube, PE White 7.5" 036010-013 Waste, Tube 11.63" 038030-002 Solenoid Valve 12VDC A020967 1 1/2" Elbow, W/Nuts, 1 1/4" 031434-014 Nameplate, OASIS 028605-101 FTG, PP Union 1/4"OD 038026-002 Electronics ASSY, IR/LCD 028481-101 FTG, PP Union Elbow WHT 0.25 026824-026...
  • Page 36 THIS PAGE IS INTENTIONALLY LEFT BLANK...

  • Page 37: Installation Instructions

    The ELKAY trademark is registered and owned by Elkay Manufacturing Columbus, OH 43235 Company. OASIS International is not affiliated with Elkay Manufacturing 614-861-1350 Company in any way. No OASIS International Products are associated or www.oasiscoolers.com affiliated with, sponsored or endorsed by the Elkay Manufacturing Company.
