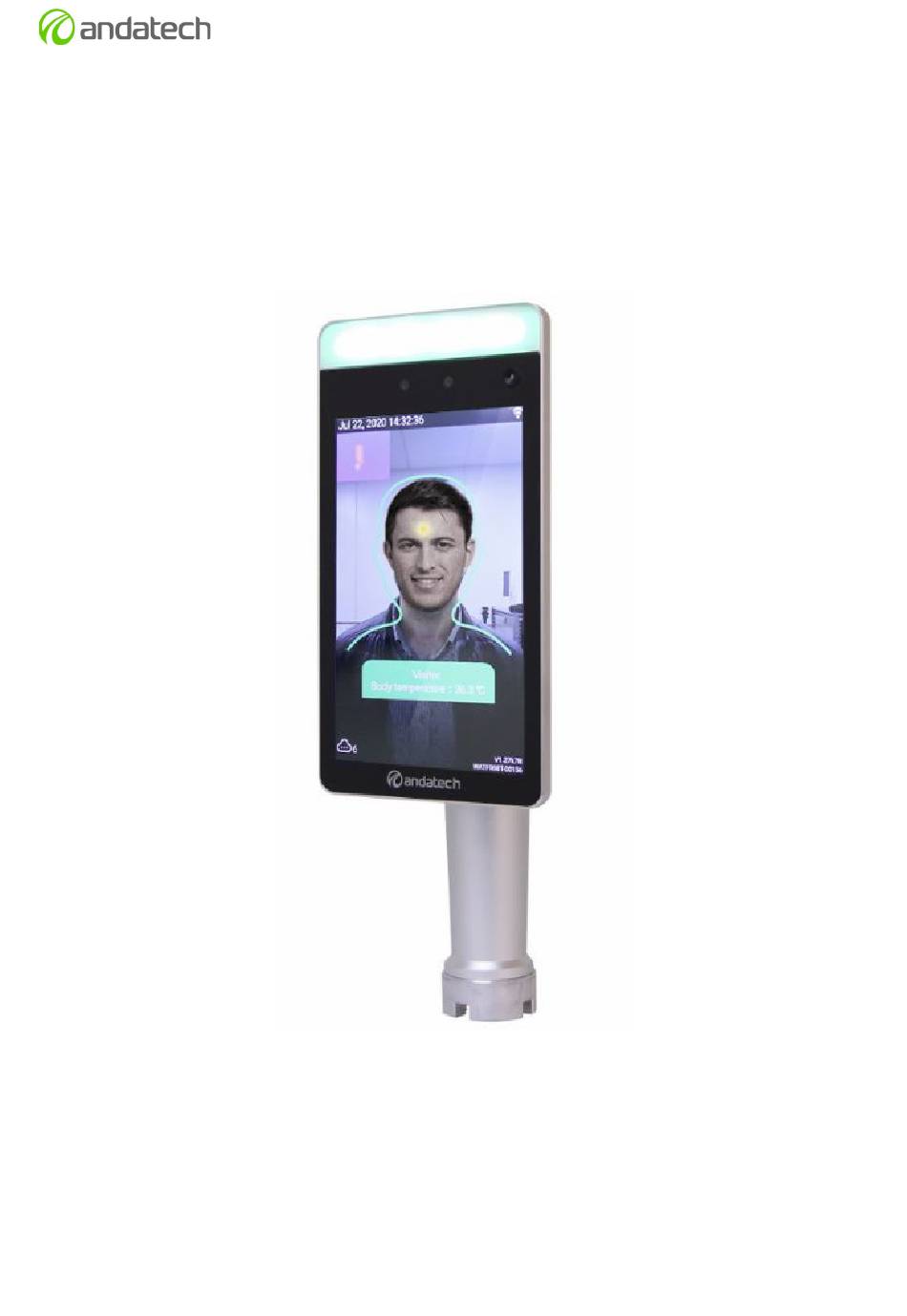

- Page 1 Andatech ACCESSPOINT FRX Facial Recognition Access Control System with Temperature Screening User Manual Version 1.1. Updated September 2020.
-
Page 2: Table Of Contents
We hope you enjoy owning your Andatech ® AccessPoint FRX breathalyser. If you have any questions regarding the unit or want to speak with us further, please visit andatech.com.au or call 1300 800 200 (between 9am and 5.30pm Monday to Friday). CONTENTS... - Page 3 MANUAL TEMPERATURE CALIBRATION CALIBRATION OPERATORS AMBIENT TEMPERATURE CALIBRATION OPERATING INSTRUCTIONS DEVICE SETTINGS Network Language Records Voice Advanced Setting (a) Temperature (b) Recognition / Card Scan (c) Test Delay Temperature Calibration Calibration by ambient temperature (suitable when the device is in a fixed position) Calibration by body temperature within calibration interval Manual calibration TROUBLESHOOTING / WARNING DISPLAY...
-
Page 4: Device Features
DEVICE FEATURES Optional Accessories for Cradle Stand Version: ● Simple base ● Smart base (includes wiring and output ports) -
Page 5: Lcd Screen
LCD SCREEN... -
Page 6: Specifications
SPECIFICATIONS Body Temperature 32 to 42.5°C Network WIFI, 4G (optional), Ethernet Detection Accuracy ±0.3°C Extension 1 USB, 1 RS232, 1 TTL, 1 Ports switch signal, can connect to electric lock and access gates Display 8 inch TFT LCD Cortex - A53 Octa-Core 1.4GHz Camera 2 Mega Pixel with visible... -
Page 7: Device Installation
DEVICE INSTALLATION GUIDELINES ● Install the device only indoors, in a covered environment. ● Install the device in a location with sufficient lighting ● Do not use the facial recognition feature under a strong light. ● Do not expose the device to the sun for a prolonged period of time. ●... -
Page 8: Mounting The Device
MOUNTING THE DEVICE WALL-MOUNT INSTALLATION If you have purchased the wall-mounted version, the wall mount bracket would have come pre-installed onto the device. To mount on the wall, use the appropriate screws (4) and wall anchors (4) for the type of wall material you are mounting the device to (screws and wall anchors not provided). -
Page 9: Cradle Stand Installation
6. Hang the device onto the bracket by sliding it up or down onto the bracket (image E). 7. With a screwdriver, tighten the two screws on the sides of the brackets to secure the device into place (image A). CRADLE STAND INSTALLATION 1. -
Page 10: Andalink
The AccessPoint FRX can also be used with visitor or guest mode, perfect for conducting temperature screening and automating entrypoint access in public places and high traffic areas such as hospitals, government buildings, tourist attractions and schools. -
Page 11: About Temperature Calibration
AccessPoint FRX's temperature measurements. TEMPERATURE CALIBRATION PROCEDURE To perform a Temperature Calibration, a calibration operator stands in front of the AccessPoint FRX and faces the camera. The device will then take their temperature and use that as the guideline for 'normal body temperature'. -
Page 12: Calibration Operators
To do this, connect a mouse to the device and enter the Device Settings Menu > Temperature Calibration and click on 'Start Manual Calibration'. Then, follow the steps under 'Temperature Calibration Procedure'. CALIBRATION OPERATORS By default, only an Admin user (set in Andalink) can conduct the Interval and Manual Temperature Calibration. -
Page 13: Operating Instructions
OPERATING INSTRUCTIONS Follow the device's instructions shown in the Notification Area when taking a test. 1. 'Face camera. Keep face inside the frame' Stand in front of the device, face the camera and position face within the Facial Recognition Frame shown on the LCD display. Note: Be sure to follow the ... -
Page 14: Device Settings
DEVICE SETTINGS To access the Device Settings Menu, plug in a USB mouse into the device and long press (click + hold) the icon on the bottom left of the screen. Network There are 3 methods of connection: Ethernet, Wifi, and 4G (additional module) Ethernet Wifi Plug in ethernet cable to... -
Page 15: Language
Language Set device language preferences here. Select the preferred language from the drop down menu then click to save. -
Page 16: Records
Records 20,000 test records can be stored along with the photo of the users. Click on to scroll or to search for a record. Click on a record to view details of the test record. Click on to print the test record (compatible printer must be connected) or click return to view test records. -
Page 17: Voice
Voice Control the voice and audio alert volume here. Voice recorded alerts Controls the voice recorded alerts such as 'Visitor / Temperature Reading / Pass'. Drag the red dot on the bar to adjust the volume level. To mute or disable all voice alerts on the device, click on the icon. -
Page 18: Advanced Setting
Advanced Setting Requires a password to access either (a) T emperature, ( b) R ecognition / Card Scan or (c) Test Delay a dvanced settings. (a) Temperature Enter the password 978166 ● Body Temperature - ○ Tick to enable temperature scanning for all users ○... -
Page 19: (B) Recognition / Card Scan
(b) Recognition / Card Scan Enter the password 978165 ● Enable Facial Recognition ○ Untick this to enable the device's facial recognition feature (default setting). ○ Tick this to disable the device's facial recognition feature ● Visitors Allowed - ○... - Page 20 ● Enable / Disable Fill Light ○ Select ‘enable’ to switch on the LED fill light on top of the device. This can assist in making facial features clearer so that the facial recognition camera can function properly, especially if the device is in a low light environment. ○...
-
Page 21: (C) Test Delay
(c) Test Delay Enter the password 119119 ● Test success delay - E nter the time delay (in seconds) required after a successful test before the start of the next facial recognition test. This interval time is especially important when the device is connected to an access gate system to allow enough time for the door to open and close after a test. -
Page 22: Temperature Calibration
Temperature Calibration The Temperature Calibration is required to evaluate and adjust the precision and accuracy of the AccessPoint FRX's temperature measurements. This can be done in two ways - with ambient temperature or with body temperature (requires calibration operator). Please read 'About Temperature Calibration' for more information. -
Page 23: Troubleshooting / Warning Display
TROUBLESHOOTING / WARNING DISPLAY Issue / Warning Display Possible Cause(s) Solution(s) Fail! User is not registered as staff and Register user as staff in Andalink or ‘Visitors Allowed’ is disabled. enable ‘Visitors Allowed’ under ‘Advanced Settings (Recognition / Card Scan)’. Please contact The device requires Temperature Perform a temperature calibration... - Page 24 (Recognition / Card Scan)’. Users are being User was recently registered in Ensure device is connected to the detected as Visitor / Andalink but not yet synced to internet. Wait 10 minutes or Force Sync Guest although already device. to sync user to device. registered as staff in Andalink Facial Recognition was disabled.
-
Page 25: Facial Recognition Guidelines
FACIAL RECOGNITION GUIDELINES... -
Page 26: Faqs
3. What will happen if the Wi-Fi or internet is down in my location? The AccessPoint FRX will continue to operate and save test results offline. Once it is connected to the internet or Wi-Fi network again, it will sync the results to the Andalink. -
Page 27: Warranty Details
● The product if it is located outside of Australia. ● Any damage caused by improper power input or improper cable connection. Andatech Pty. Ltd. PO Box 3038, Nunawading VIC 3131, Australia. Email: Phone: 1300 800 200 Fax: 1300 883 802...
