Hochiki FIREscape lite Installation Instructions Manual

HOCHIKI FIRESCAPE LITE INSTALLATION
INSTRUCTIONS
General information
FIREscape lite® is a highly cost-
effective and environmentally friendly
range of self-contained emergency
lighting luminaires and exit signs,
utilising the latest LED technology and
featuring a uniquely designed 'step-
down' transformer, which allows them to
be mains-powered. The integral back-
up battery provides enough power to
illuminate the standard units for over
three hours exceeding both UK and
European standard requirements.
FIREscape lite® units may be fitted at
any location where a permanent live
feed connection to the lighting circuit
can be made. The luminaire range
Party verified, ICEL
provides 3 rd
compliant levels of illumination for
escape routes, points of emphasis,
open areas and final exits with the high-
power models able to perform at heights

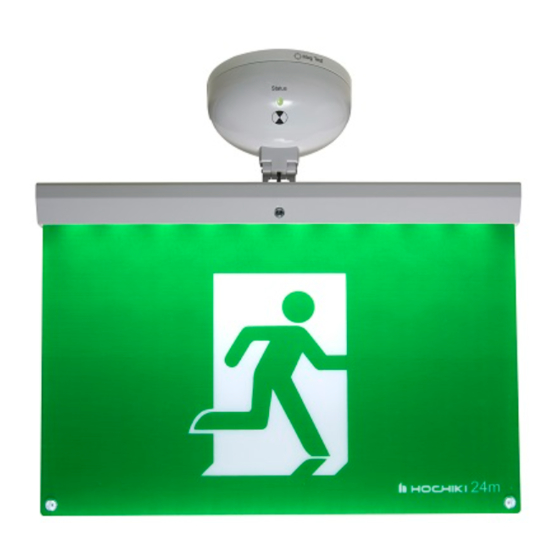

of 9 metres plus. The exit sign range
provides ISO7010 compliant, easy-to-
read signage in a variety of direction
formats.
The internal electronics of each device
provide continual self-diagnosing of the
charging circuit, back-up battery and the
main LED. The integral bi-coloured
status LED instantly indicates if there is
a problem with the performance of any
element, ensuring the device will always
perform to its optimum. With these
features FIREscape lite® provides the
ultimate in emergency lighting safety for
your building and its occupants.
*SURFACE MOUNT ONLY, WILL NOT SECURE TO BESA BOX
www.acornfiresecurity.com
www.acornfiresecurity.com
Components

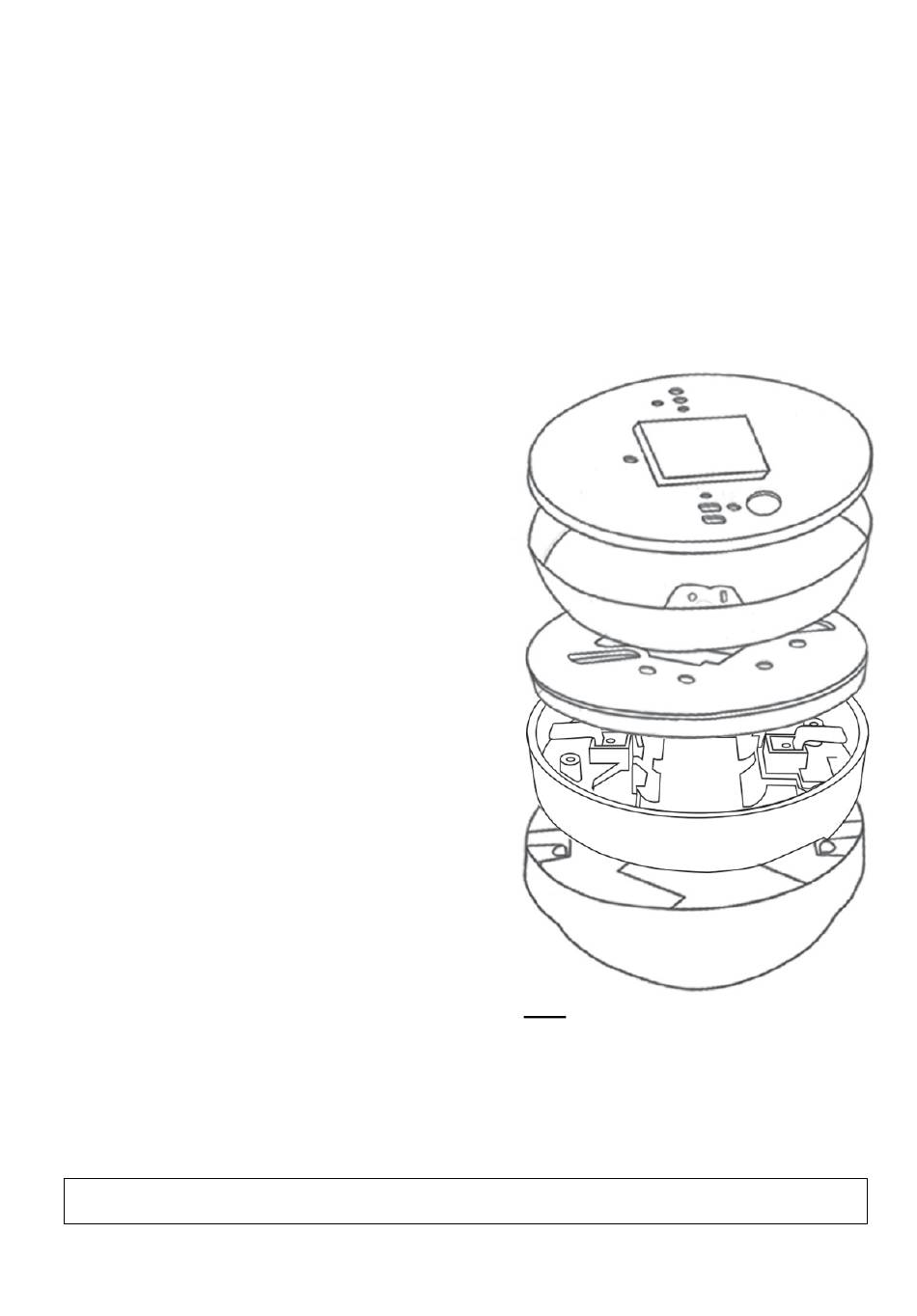

The standalone lighting unit is installed
in the following sequence (see below).
1.
2.
3.
*
4.
KEY
1. NFW-SDT Transformer
2. YBD-RA Spacer
3. YBN-R/3 Mounting Base
* NF89 Spacer (if required)
4.
Luminaire / Exit Sign
2-3-0-2294/ISS1/JAN17
1
