MIST
MAX
TM
MODEL MM600
Installation and Operation Manual
Important:
This manual contains specifi c cautionary statements relative to worker safety. Read this manual thoroughly and
follow as directed. It is impossible to list all the hazards of oil mist control equipment. All persons involved with
the equipment or systems should be instructed how to operate in a safe manner.
Advertisement
Table of Contents
Summary of Contents for MICRO-AIR MISTMAX MM600

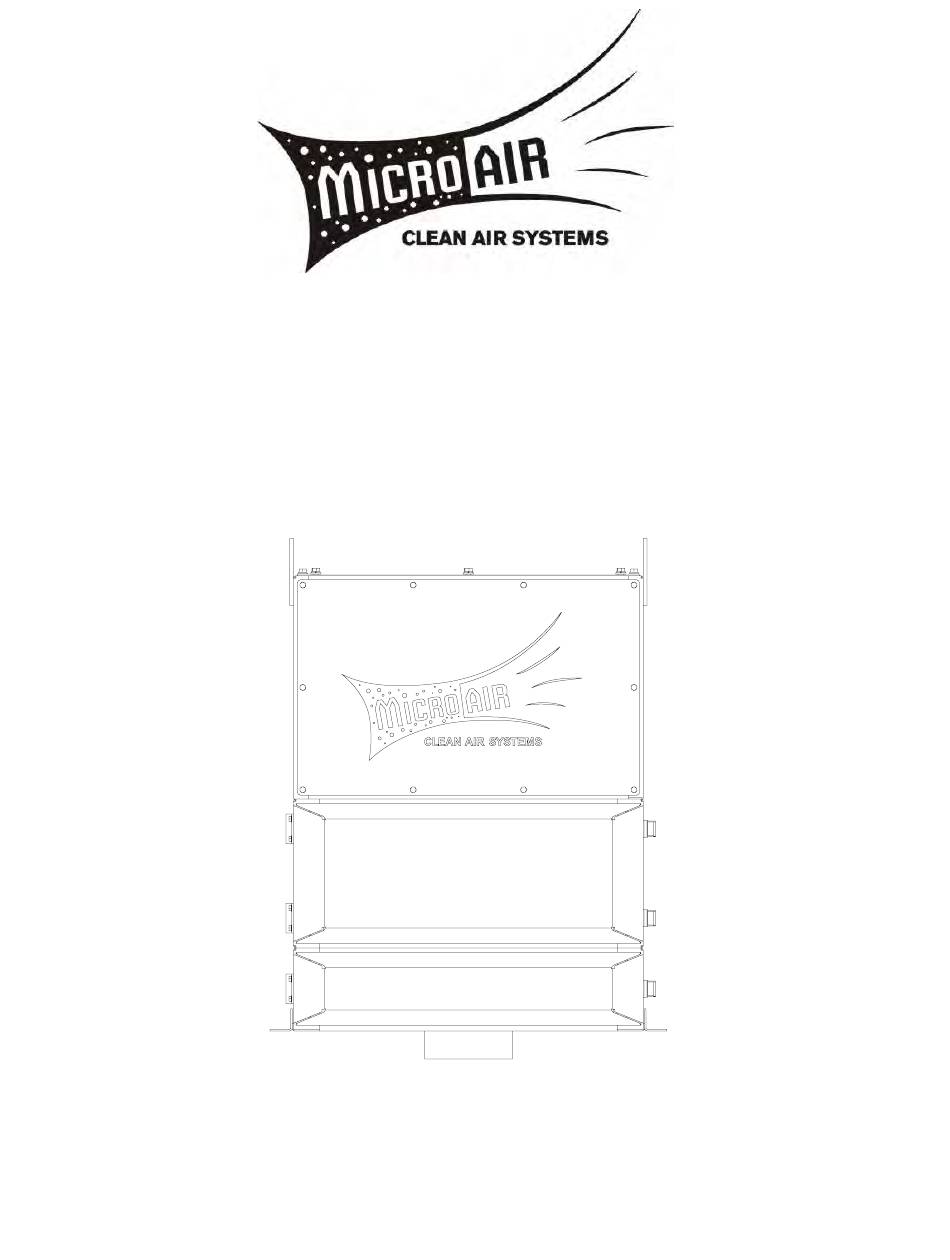

- Page 1 MIST MODEL MM600 Installation and Operation Manual Important: This manual contains specifi c cautionary statements relative to worker safety. Read this manual thoroughly and follow as directed. It is impossible to list all the hazards of oil mist control equipment. All persons involved with the equipment or systems should be instructed how to operate in a safe manner.
- Page 2 MICRO AIR MM600 ® CLEAN AIR SYSTEMS MODEL MM600 SPECIFICATIONS Carefully place the air cleaner into it’s location. Use strong braided wire or chain to attach the INPUT VOLTAGE: air cleaner at the provided hanging brackets to 208-230V / 460V 60Hz 3 Phase structrual supports (Fig 1).
- Page 3 MM600 MICRO AIR ® CLEAN AIR SYSTEMS ELECTRICAL INSTALLATION: All Electrical work must be done by a qualifi ed electrician according to local, state and national codes. CAUTION: Installation can cause exposure to live components. Disconnect electrical power befor proceeding with Figure 3 installation.
- Page 4 MICRO AIR MM600 ® CLEAN AIR SYSTEMS 208/230/460 Volt Wiring Diagram...
- Page 5 MM600 MICRO AIR ® CLEAN AIR SYSTEMS MM600 PARTS LIST ITEM PART NO. DESCRIPTION P2320 2 HP Motor 38785-03 Motor Mounting Plate P2302 Blower Wheel, Housing and Inlet Plate P7321 Square Mist Max Filter P7292 / P1828 & P7309 Mist-X Pre-Filter / Baffl e & Mesh Pre-Filter Not Shown P2221 0-5”...
