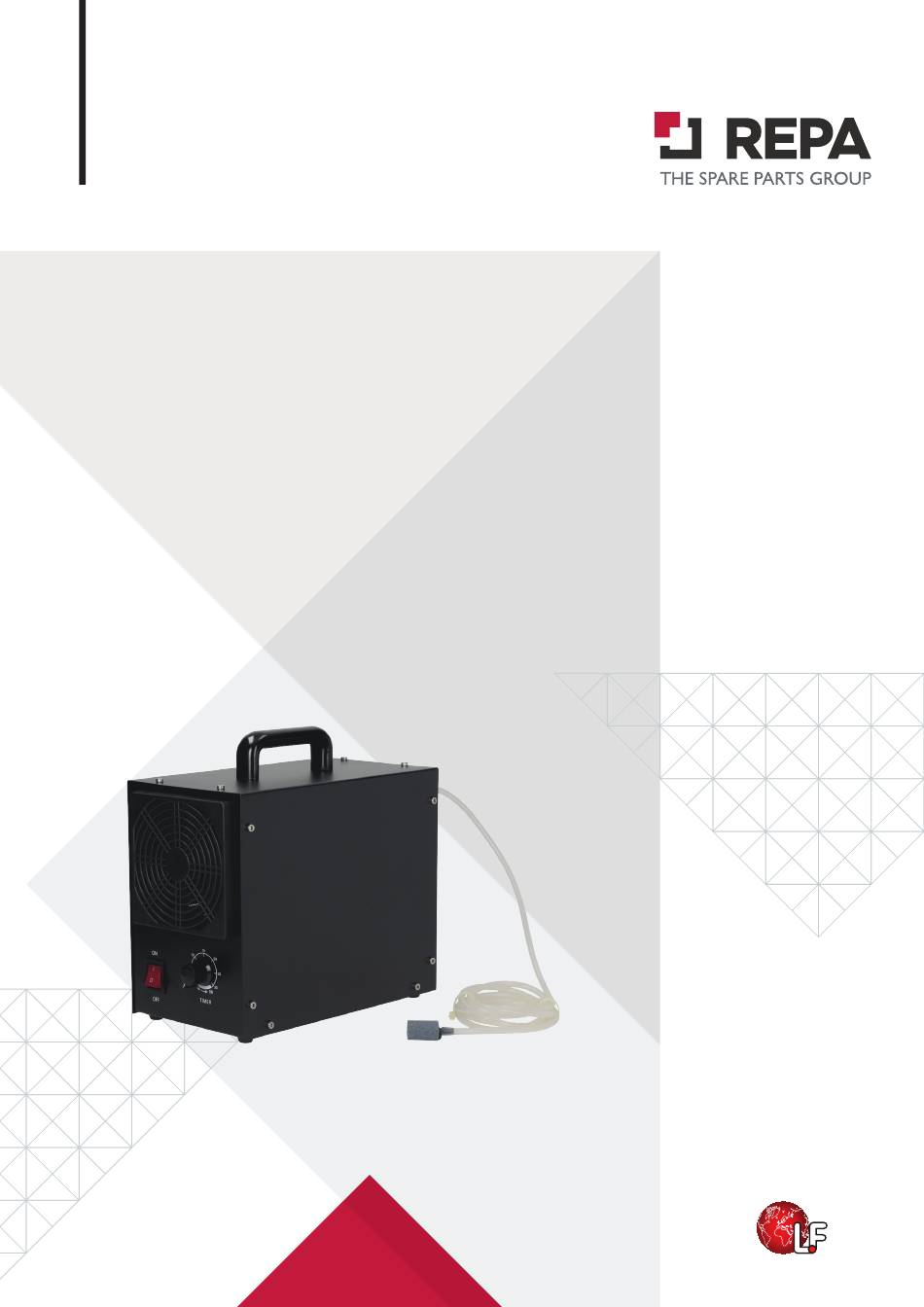

- Page 1 PORTABLE OZONIZER Instruction manual...
-
Page 2: Table Of Contents
PORTABLE OZONIZER CH-KTA/CH-KTB/CH-KTM CH-BP/CH-BT/CH-BS/CH-ZTW/CH-DP INSTRUCTION MANUAL VERSION:1.2 ISSUED DATE: 04-09-2014 CATALOGUE DEVICE CONFIGURATION FUNCTION GENERAL OPERATING INSTRUCTIONS BP SERIES INSTRUCTION ZTW SERIES INSTRUCTION DP SERIES INSTRUCTION APPLICATIONS AFTER-SALES SERVICE PACKING LIST APPENDIX PORTABLE OZONIZER PARAMETERS Please read the instruction manual carefully before using the machine. Please keep it in a safe place for future reference. -
Page 3: Device Configuration Function
DEVICE CONFIGURATION FUNCTION Chuanghuan portable ozonizer is widely used to sterilize, disinfect and eradicate odours from places such as households, businesses, offices, hotels, food processing stations, etc. Operating the device is simple and practical. Stable ozone output is a necessary condition for the machine to operate. The various models of portable ozonizer feature the following functional configurations: ZTW* MODELS... -
Page 4: General Operating Instructions
GENERAL OPERATING INSTRUCTIONS TO CONSIDER BEFORE PROCEEDING Make sure this device is placed more than 10 cm from walls and/or other equipment. Do not use block or cover the ventilation system or the other openings of the equipment. Doing so may cause internal overheating, damage the equipment or prevent it from producing ozone. -
Page 5: Bp Series Instruction
Check on the plate the type of power source required to use the device to prevent fire, electric shock or mechanical failure. If you cannot determine the type of power available, consult your local power company. * Based on the country of the purchased products, the shape of the socket and plug may be different. -
Page 6: Ztw Series Instruction
BP SERIES OPERATION INSTRUCTIONS 2-1 Front panel 2-2 Rear panel 1. Handle 8. Ozone on/off 2. Box 9. Gas source on/off 3. Timer 10. Dustproof filter 4. Ozone adjustor 11. Power Line 5. Power indicator 12. Gas outlet 6. Ozone indicator 13. -
Page 7: Dp Series Instruction
2. In a device under normal operating conditions, oxygen is not interrupted or stopped when the oxygen source is used. The design and operation of the safety standards must comply strictly with safety regulations. In case of using oxygen, what is in the oxygen cylinder is considered as the gas source. - Page 8 DP SERIES MANUAL Panel Operation Instruction: 1. “MODE” 3 kinds of working model. F1, F2-1 and F2-2. Mode F1 = set a limit work time Mode F2-1 = work - downtime cycle Mode F2-2= downtime-work cycle 2. “Time”Show the running time of each working mode. 3.
-
Page 9: Applications
WORKING MODE OPTION AND SETTING 1. Working mode option Briefly press the “SET” key to cycle through three working modes. Eg: the system default working mode is F1 (working limited): 1) Briefly press “SET key to switch to F2-1 2) Briefly press “SET” key to switch to F2-2 3) Briefly press “SET”... -
Page 10: After-Sales Service
Note: 1 .When using aeration stone for water sterilization, put aeration stone sink to the bottom, moving the stone make water aeration uniform. 2. For meat, vegetable or fruit to the water sterilization, the items should be placed in the aeration zone. 3. -
Page 11: Appendix
Portable ozonizer parameter Gas flow Ozone Output gas Power Fuse Voltage External Size Model rate output tube V/Hz L/mim CH-KTA ø 6 220/50 320x175x265 5. 3 CH-KTB ø 6 220/50 320x160x275 4. 8 CH-KTM ø 6 220/50 320x170x270 5. 5 CH-DP ø... - Page 12 GEV Großküchen-Ersatzteil-Vertrieb GmbH Commercial Catering Spares Ltd. Gadastr. 4 Block C - Axis Point Hill Top Road 85232 Bergkirchen - Germany Heywood - Lancashire - OL10 2RQ - UK T +49 8142 6522-50 T +44 1706 621 155 info@gev-online.com info@ccspares.co.uk www.gev-online.com www.ccspares.co.uk LF S.p.A.
