IQ DISPLAY MODULE SERIES 2
(IQDM SERIES 2) OWNER'S MANUAL

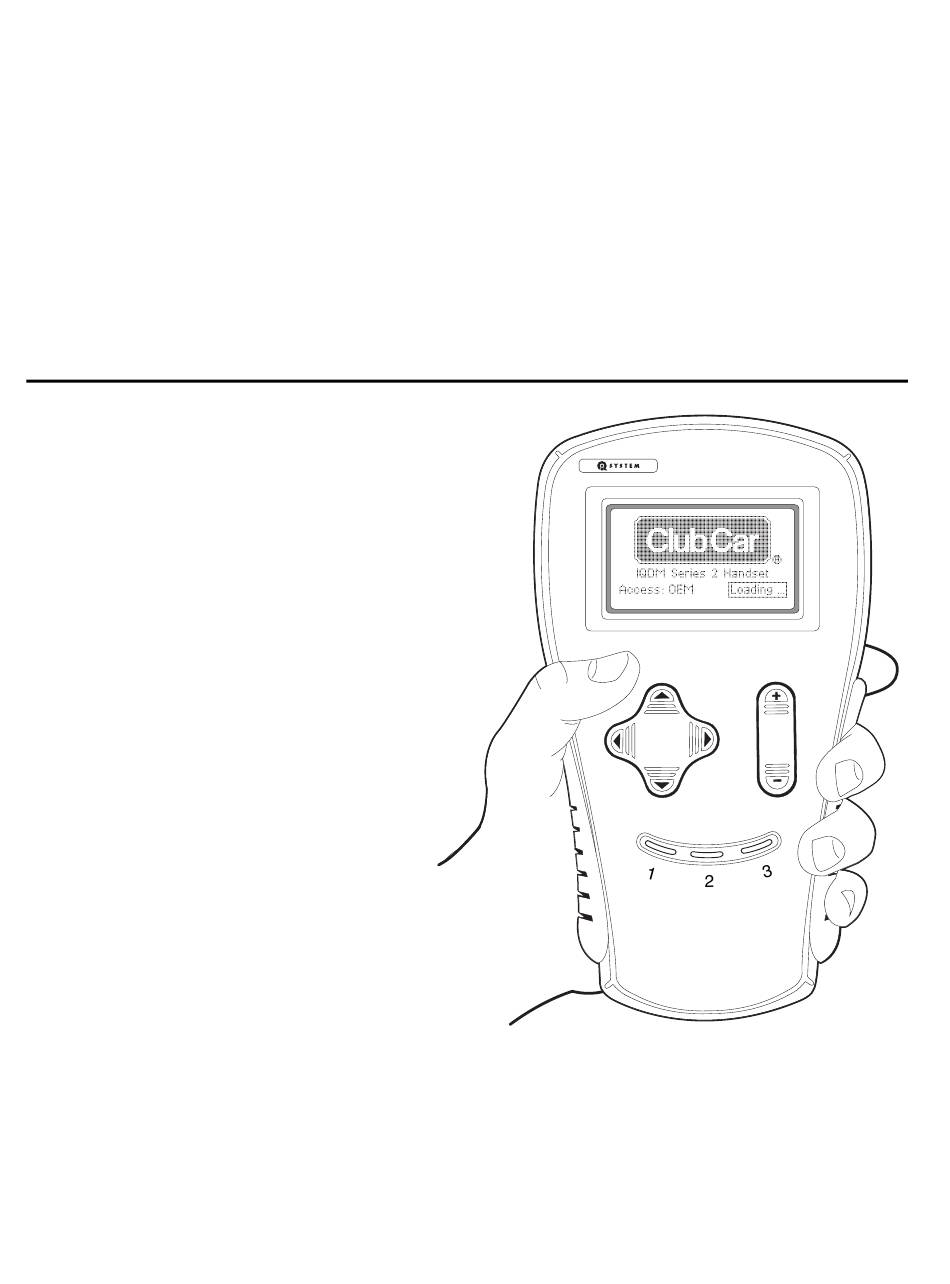

The IQDM Series 2 is a handheld programming
and diagnostic tool for use with Club Car IQ Sys-
tem vehicles. This owner's manual includes all
information required to operate the IQDM
Series 2 with Club Car IQ System and IQ Plus
vehicles, but does not contain detailed informa-
tion for troubleshooting the vehicle. Refer to the
vehicle maintenance and service manual and
supplement for detailed vehicle troubleshooting
and service procedures. For vehicle operation
information, refer to the vehicle owner's manual
supplied with the vehicle. If you do not have a
vehicle owner's manual or a vehicle maintenance
and service manual and supplement, they may
be obtained from your Club Car dealer or distrib-
utor.
Manual No. 102249203
For use with Kit No. 102248803
Edition Code 0603C1006B
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Club Car IQDM 2 Series
- Page 1 IQ DISPLAY MODULE SERIES 2 (IQDM SERIES 2) OWNER’S MANUAL The IQDM Series 2 is a handheld programming and diagnostic tool for use with Club Car IQ Sys- tem vehicles. This owner’s manual includes all information required to operate the IQDM...
- Page 2 Club Car, Inc. Club Car is not liable for errors in this manual or for incidental or consequential damages that result from the use of the material in this manual.
-
Page 3: Safety Details
Safety Details SAFETY DETAILS ý DANGER • Battery – Explosive gases! Do not smoke. Keep sparks and flames away from the vehicle and service area. Ventilate when charging or using in an enclosed space. Wear a full face shield and rubber gloves when working on or near batteries. •... -
Page 4: Parts Included In Kit
Parts Included in Kit CAUT ION • Do not expose the handset to direct, bright sunlight for long periods of time. Failure to heed this caution could result in damage or failure of the IQDM Series 2. PARTS INCLUDED IN KIT The IQDM Series 2 kit should include the items shown (Figure 1). - Page 5 Plugging the Handset into the Vehicle Figure 2 Vehicle Connection (IQ System, IQ Plus, and Figure 3 Vehicle Connection Under Dash (Precedent DS Vehicles with Data Port on F&R Switch Vehicles and 2007 and later IQ Plus Vehicles) as Shown Here) Note: Seat shown in illustration may not match all models.
- Page 6 Introductory Display INTRODUCTORY DISPLAY Immediately after the handset is connected to the vehicle, it begins loading the vehicle speed controller infor- mation (Figure 5). After a few seconds, the screen displays the following menu items (Figure 5): • Monitor • Faults •...
- Page 7 Menu Navigation MENU NAVIGATION The NAVIGATION BUTTON is the four-arrow button located on the left side of the handset (Figure 7). This button is used to navigate through and select menus. Pressing the up or down arrows allows the user to scroll through the menu items.
- Page 8 Menu Navigation The following menus are accessible on the IQDM Series 2 handset: Monitor The monitor menu displays values for certain parameters to facilitate speed controller troubleshooting. See IQ Display Module Series 2 (IQDM Series 2) Diagnostics in the appropriate maintenance and service manual.
-
Page 9: Programmer Setup
Programmer Setup PROGRAMMER SETUP The programmer setup menu selection allows the user to set the LCD display contrast, records the fault his- tory of the handset, and displays information pertaining to the handset. PROGRAM This menu allows the user to adjust the contrast on the display screen. After selecting the LCD–Contrast menu, use the change value buttons to adjust the contrast for the best readability.
