Summary of Contents for Antrax IT Total Mirror

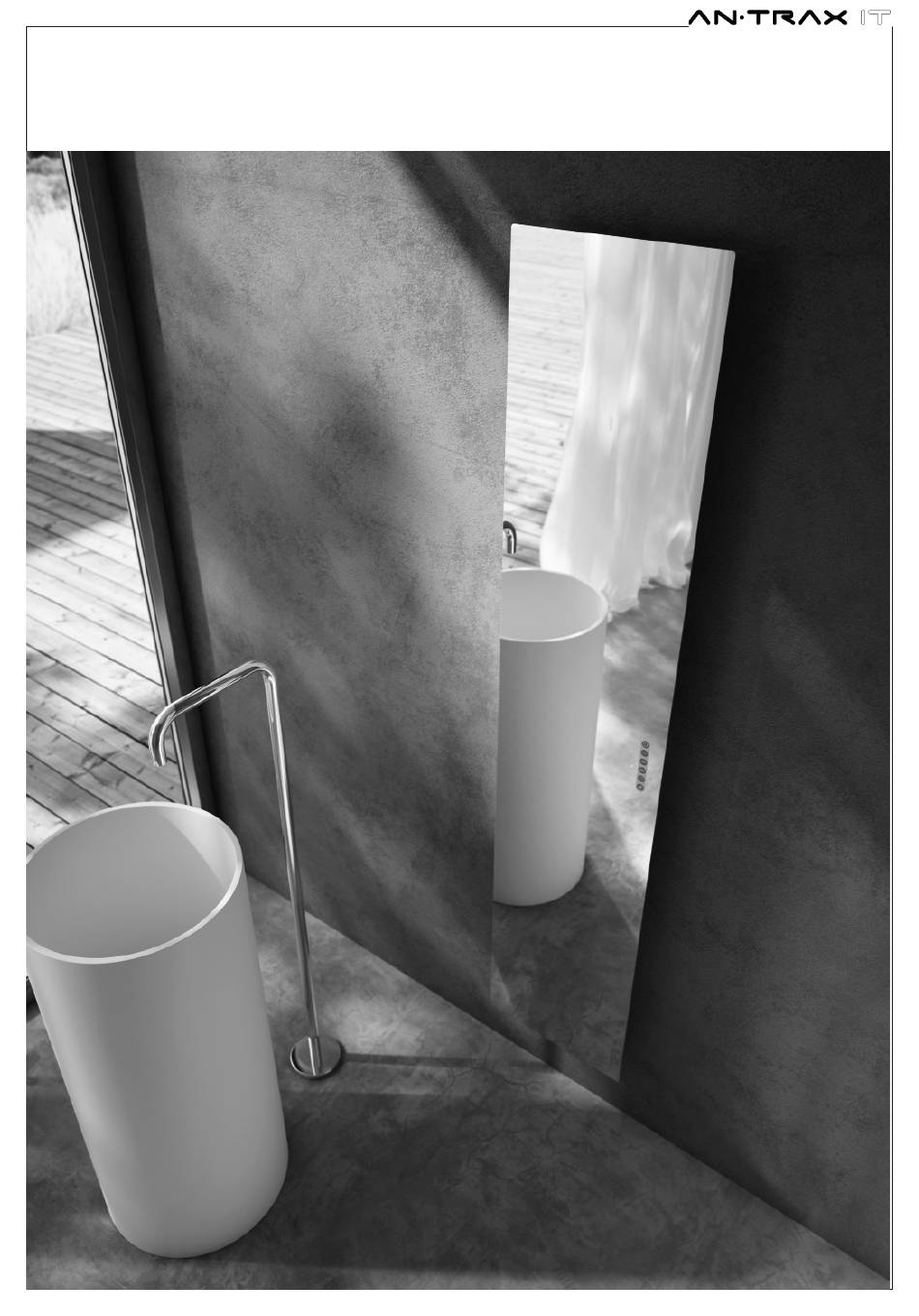

- Page 1 Total Mirror INSTRUCTION...
- Page 2 This radiator complies to European directives: 2004/108/CE relating to electromagnetic compatibility 2006/95/CE relating to electrical equipment designed for use within certain voltage limits 2002/95/CE relating to the restriction of the use of certain hazardous substances in electrical and electronic equipment Technical characteristics of the radiator: - 230 V 50 Hz - II Class...
-
Page 3: General Information
2. General information: Unpack the radiator and place it on the polystyrene protection or on a carpet In the package you will find: Total Mirror radiator Remote control Wall brackets kit Instruction leaflet Keep this instruction leaflet with care and read it carefully before using the radiator. You will so obtain the best performance with the highest safety. -
Page 4: Installation
3. Installation: Total mirror is an household device. The radiator has to be secured to a wall as drawings show. The radiator can be fitted horizontally or vertically. In case of vertical positioning, you need to keep the keyboard on the right while if you fit the radiator in a horizontal position, the keyboard has to be kept at the bottom. -
Page 5: Wall Fastening
3.1. Wall fastening Make sure that the provided wall plugs and screws are suitable for the wall on which the ra- diator will be installed. If you have any doubts, please contact a qualified professional installer. -
Page 6: Wiring Diagramm
Fil-Pilote wire (used just for French market). If Total Mirror is installed in a bathroom, the power grid has to be provided by a residual current device (30 In moist rooms it is very important that the electrical connection is a more than 25 cm from the floor. - Page 7 4. warnings: Keep out of reach of the children under 3 years old The device can be used by children aged between 3 and 8 years old and by people with reduced physical or mental capabilities, but they have to be guarded; or they have to receive the instructions about the safety use of the device and must be aware about the possible dangers.
- Page 8 4.1 Touch-screen keyboard Icons and functions (Fig. 7) STAND-BY..................L1 Heating at low temperature (40° ca)..........L2 Heating at middle temperature (50°ca)..........…L3 Heating at maximum temperature (70°ca) .........L4 2h Boost at maximum temperature............L5 Child-proof keyboard lock..............L6 The red light indicates that the radiator is heating The radiator is connected to the electricity supply infrared sensor for remote control...
-
Page 9: Remote Control
Total mirror radiators have an advanced system control with a touch-screen keyboard and with some indica- tor lights (LED lights) which show the set mode. Any change in the settings is pointed out by some acoustic sounds. When the radiator is connected to electricity, all LEDs light up for 2 seconds and you hear a long acoustic sound, then L1 and L8 keep lighting up. -
Page 10: General Description
5.2. GENERAL DESCRIPTION 1. communication with double infrared, one at the top and the other at the bottom 2. seven keys 3. maximum distance of communication from the radiator: 7 m 4. 2 batteries AAA_LRo3 1.5V hrono inus 2h K on / s tanD... -
Page 11: Open Window
ICON MODE DESCRIPTION OF THE FUNCTION Comfort the temperature of the radiator is controlled by comfort mode settings Night the temperature of the radiator is controlled by night mode settings Anti freeze the temperature of the radiator is controlled by Anti-freeze mode settings Fil-Pilote the temperature of the radiator is controlled by Fil-Pilote (this... - Page 12 When you have set data/hour/minute and when you are in stand-by mode, you need to press stand-by key to go to comfort mode From Comfort mode you go in night mode by pressing mode key again. In the same way, if you press again mode key, you can see: comfort mode, night mode, anti-freeze mode, chrono mode, fil-pilote mode, comfort mode*** Comfort and Night mode: temperature setting (see fig.1) Enter in comfort mode or night mode to set the temperature using plus and minus keys.
- Page 13 Chrono mode (see fig.1) Chrono mode (see fig.1) In chrono mode you see the temperature, day, hour of daily program. Fil-Pilote mode (see fig.1) Fil-Pilote mode (see fig.1) Enter in Fil-Pilote mode, the device will identify the commands received by Fil-Pilote (comfort/night/An- ti-freeze/ECO/Stand-by) (just for French market) 2hr timer 2hr timer...
- Page 14 Eco mode Eco mode Eco mode can be used to reduce energy consumption when room is empty for a long period. By pressing eco key, the icon appears on the display and then it will disappear when you press again the bot- tom.
- Page 15 Key lock Key lock Press together Mode and Plus keys for more than 3 sec. to lock the keyboard. The icon appears on the di- splay and no more keys will work. In order to disable the function you need to press again the same keys for more than 3 seconds.
- Page 16 14,7 Cable position Position du câble Kabel Ausgang Posición del cable Cable position Position du câble Kabel Ausgang Posición del cable Antrax IT srl Via Boscalto 40 31023 Resana TV Tel. +39 0423 7174 Fax. +39 0423 717474 antrax@antrax.it...
