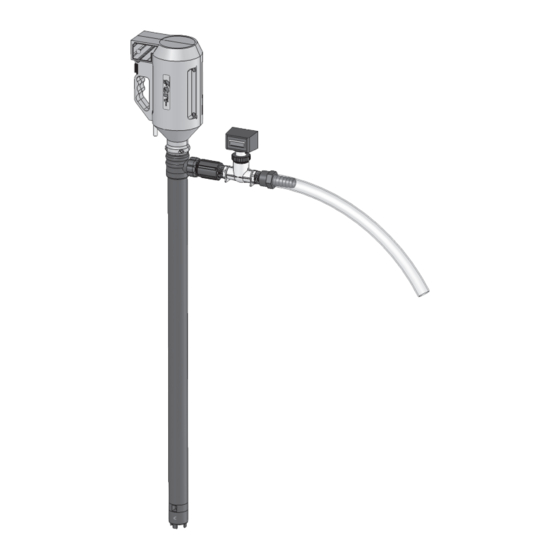

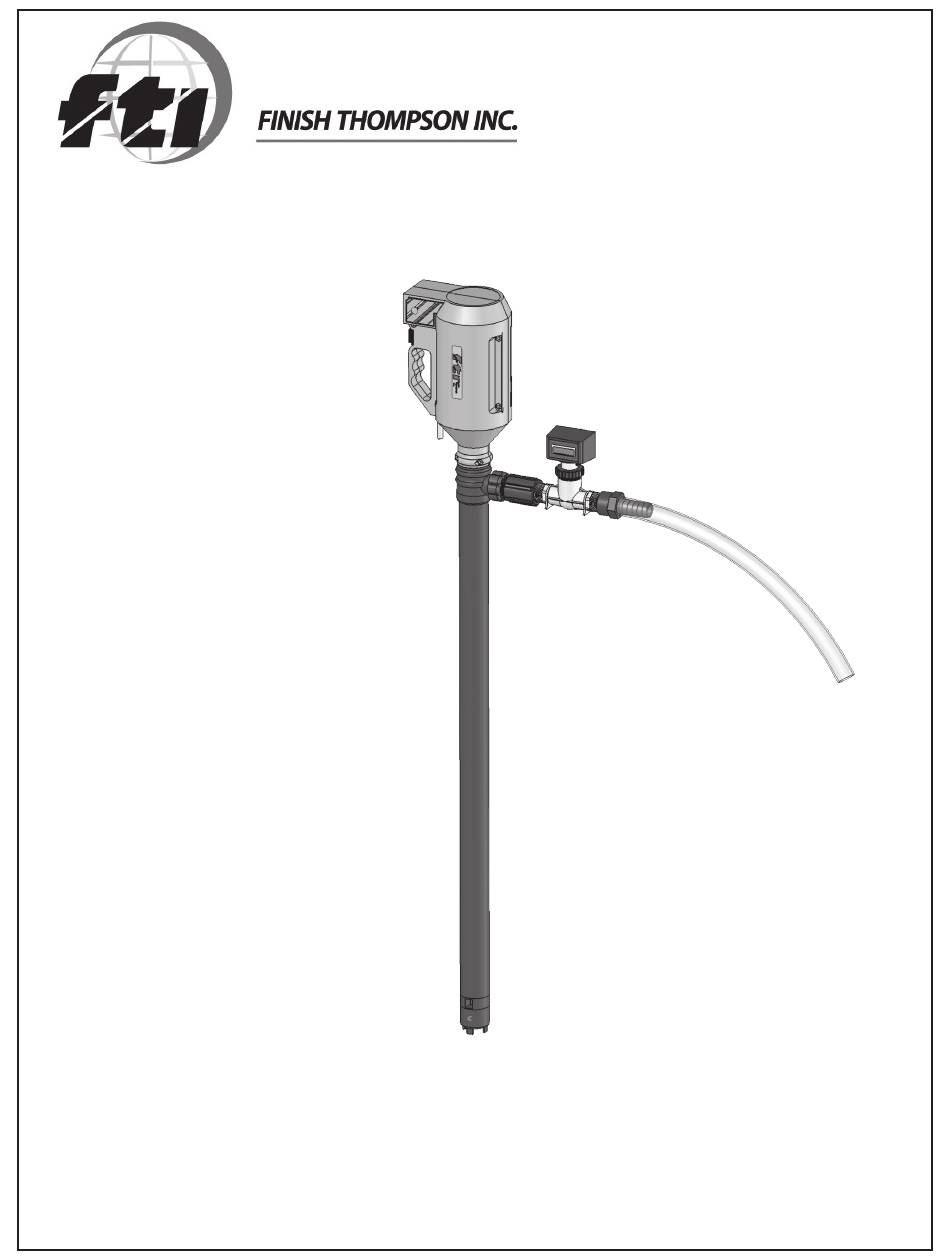

- Page 1 Drum Pump Flow Meter Model FM1000 Series Operating Instructions P/N 106606 R3...
- Page 2 Table of Contents Safety ..................................3 Introduction ................................3 Specifications ................................3 Features ..................................3 Section 1 - Installation ..............................4 Section 2 - Operation ..............................4 Section 3 - Accuracy ..............................5 Section 4 - Maintenance ............................5 Section 5 - Warranty ..............................5 Section 6 - Spare Parts ..............................
- Page 3 Safety ALWAYS wear protective clothing, eye protection and follow standard safety procedures when handling corrosive or personally harmful materials. NEVER use this flow meter with flammable or combustible liquids. NEVER use this flow meter in a hazardous environment. ALWAYS verify chemical compatibility with the flow meter and pump materials of construction before operation. ALWAYS make sure the pump and hose are properly supported.
- Page 4 Section 1 - Installation NOTE: Avoid exposing the LCD for prolonged periods to direct sunlight or the life of the LCD may be reduced. NOTE: Item numbers below reference illustration on page 3. 1. Determine which direction the flow meter display is to face. It is bi-directional and can face either to the right or left but must be kept in the upright position.
- Page 5 Section 3 - Accuracy The accuracy of these flow meters is published as Full Scale Accuracy. This means the amount of error is relevant to the Full Scale, which is 50 gpm for the FM1000. For example, if the flow meter is displaying 5 gpm, and you measure the actual flow to be 5.4 gpm, then your full scale accuracy is calculated as (Measured-Actual) / Full Scale...or 5 minus 5.4 divided by 50 which equals .008 or .8%.
- Page 6 Section 5 - Spare Parts Item Qty. Description PF Series Part SF Series Part Number Number Number Flow Meter Hose Barb Adapter-PP-1”FNPT x 1”Barb 106601 106601 Hose Barb Adapter-PVDF-1”FNPT x 1”Barb 106601-1 106601-1 Coupling-PP-1”FNPT x 1”FNPT 106600 106600 Coupling-PVDF-1”FNPT x 1”FNPT 106610 106610 Flow Meter Discharge Nut-PP...
