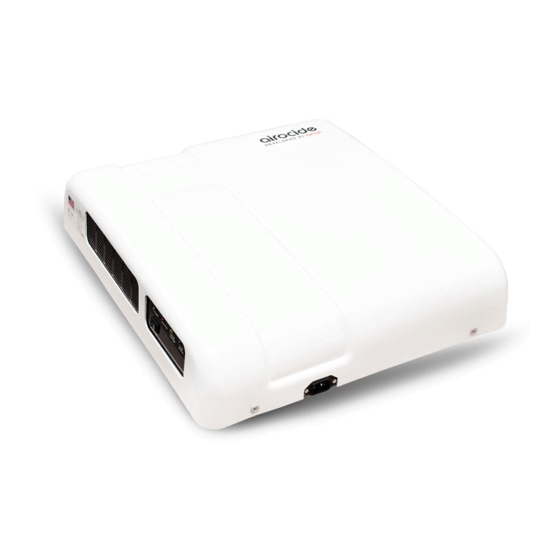

Photocatalytic Air Purification System
{ Operational Manual }
APS-1000XL Model
www.airocide.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APS-1000XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AIROCIDE APS-1000XL

Summary of Contents for AIROCIDE APS-1000XL

  • Page 1 Photocatalytic Air Purification System { Operational Manual } APS-1000XL Model www.airocide.com...
  • Page 5 Any organic matter, no matter how small, that contacts these HO- radi- cals is instantly destroyed. Airocide is listed by the FDA as a Class II medical device and has been shown by independent Air Quality Labs to be free of any ozone emission.

  • Page 6: Table Of Contents

    Contents Reaction Chamber Access Door 16 Operating Parameters for System Status Indicator Lights Power Management Technology 19 Airocide® System Placement & Installation 20 Mounting Hardware Determining Location of the Airocide® System Orientation of the Airocide® System Installing the Airocide® System...
  • Page 7 Airocide® System Initial Start Up Operation of the Airocide® System Maintenance & Care Annual Maintenance Requirements Lamp Replacement Large Particulate Screen Replacement Cleaning & Care Trouble Diagnosis Guide Limited Warranty Product Specifications & Declaration of Conformity...

  • Page 8: Safety Instructions

    Your Airocide® Air Purification System utilizes patented NASA developed technology. The heart of this system is the reaction chamber. Never attempt to operate your Airocide® system without the outer cover in place. Do not attempt to operate the Airocide® System with the reaction chamber cover removed.

  • Page 9: Electrical Safety

    The Airocide unit, like all electrical appliances, presents the risk of fire, WARNING: electric shock, and the potential for serious injury or death if improperly used. Always follow these precautions: Electrical Safety When using any electrical device, basic safety precautions should always be observed. To reduce the risk of electrical shock, fire, and personal injury: •...
  • Page 10 Votre système de purification d’air Airocide® utilise une technologie brevetée et développée par NASA. Le cœur du système est une chambre à réaction. Ne jamais opérer votre système Airocide® sans le recouvrement extérieur. Ne pas essayer d’opérer votre système Airocide® sans le recouvrement de la chambre à...
  • Page 11 L’unité Airocide®, comme tous les appareils électriques, représente un WARNING: risque d’incendie, d’électrocution et la possibilité de blessures sérieuses même la mort avec une utilisation inappropriée. Veuillez toujours suivre les précautions suivantes Sécurité électrique Lors de l’utilisation d’un appareil électrique, il est recommandé de suivre les précautions de base. Pour réduire les risques d’électrocution, d’incendie ou de blessure personnelle:...

  • Page 12: Registration Plate

    Registration Plate The Airocide® System registration plate certifies that this is an authentic Airocide® product. This plate contains the model number, serial number, regulatory certification and electrical information for your unit. In order to validate your warranty, please register your Airocide System at www.

  • Page 13: Air Purification System Features

    Air Purification System Features Operating Parameters Airocide® Air Purification Systems are designed for continual operation, 24 hours a day, 7 days a week. For maximum effectiveness, once you start your system, do not turn it off. Ambient Environmental Temperature Airocide® Systems are engineered to function within an ambient air temperature range of 34°F to 95°F (1°C - 35°C).

  • Page 14: User Interface Panel

    Overheat (Red) – This LED indicates an overheating issue with the unit. • Off – When this LED is off, the Airocide® System is operating within the normal temperature range. • Flashing – If the Airocide® System has exceeded the normal operating temperature range for an extended period of time, this LED will flash and the unit will shut down.
  • Page 15 • Flashing – When this LED flashes, it is necessary to change the Airocide® System’s reaction chamber lamp set. Refer to the Maintenance and Care section for details. Unit Status (Blue) – This LED indicates the operating status of the unit with the following conditions: •...

  • Page 16: Air Outlet Port

    Air Outlet Port Air that has been processed by the Airocide® System will exit the unit through the air outlet port, located on the left side of the unit, adjacent to the User Interface Panel. When choosing where to place your unit, make certain that there is at least 3 feet (1 meter) of unobstructed space around the Air Outlet Port.

  • Page 17: Air Inlet System

    Air Inlet System The Airocide® System processes contaminated air by drawing it into the air inlet system, consisting of the Air Inlet Port and Large Particulate Collection Screen.
  • Page 18 Air Inlet Port The Air Inlet Port for the Airocide® System contains a large particulate collector to prevent large inorganic particulate from entering the fan and the reaction chamber. To open the air inlet door, turn the two access knobs and fold the door down.

  • Page 19: Outer Cover

    Outer Cover Airocide® Systems are protected by a primary outer cover. This cover should only be removed when it is necessary to change the Airocide® System’s lamps. Refer to the Maintenance and Care section for details on changing the lamps.

  • Page 20: Reaction Chamber Access Door

    When the outer cover is removed, the Reaction Chamber Access Door may be opened. This access panel allows for quick and easy replacement of the Airocide® System’s lamps. For safety purposes, there are screws that secure the chamber panel. These must be removed in order to open the reaction chamber access door.
  • Page 21 A lamp replacement reset button is located on the back of the User Interface Panel. This button should be pressed each time a lamp change occurs to allow the Airocide® System’s software to calibrate the new lamps. Do not depress this button unless new lamps have been installed. Refer to...

  • Page 22: Operating Parameters For System Status Indicator Lights

    Operating Parameters for System Status Indicator Lights The following table will provide a quick reference as to the operating status of your Airocide® System based on the indicator lights on the user interface panel. Light Indicators AiroCide System Operating Status...

  • Page 23: Power Management Technology

    Power Management Technology In order to protect the electronic systems within your Airocide® unit, advanced power management software is utilized. This software is constantly monitoring the incoming voltage to your Airocide® System. In the event the voltage falls below or exceeds the normal operating range, the software will shut off the critical systems.

  • Page 24: Airocide® System Placement & Installation

    Airocide® System Placement and Installation The following table will provide a quick reference as to the operating status of your Airocide® System based on the indicator lights on the user interface panel. Read this entire manual carefully before beginning installation.

  • Page 25: Determining Location

    Placement Guidance Airocide® Systems are designed to be mounted to a wall. For certain applications, it may be desirable to mount the unit to a ceiling. In all instances consult an engineer or certified/licensed contractor to determine the suitability of the desired mounting surface to sustain the weight of the Airocide®...

  • Page 26: Orientation Of The Airocide® System

    Other than during installation and replacement of lamps, the outer cover should remain securely in place. • Airocide® System Chassis – This is the base plate to which all of the Airocide® System’s components are mounted. • Mounting Bracket – When properly secured to a wall or ceiling, this bracket will support the weight of the Airocide®...
  • Page 27 Airocide® chassis and slide the unit to the right until the chassis clears the locking slots on the bottom bracket. 7. Lift the Airocide® system up at an angle, from the bottom of the chassis until the unit is clear of the bottom brackets. Then, lift the unit off of the upper bracket hooks and place the unit next to the mounting bracket.
  • Page 28 Depending on the mounting surface construction, a minimum of 4 screws or bolts should be used for the APS-1000XL. A selection of mounting hardware has been included with the unit. Due to the variety of surfaces, consult an experienced contractor or contact your Airocide®...
  • Page 29 Attaching Airocide® System to Mounting Bracket Once the mounting bracket is securely fastened to the wall or ceiling, the Airocide® System is ready to be attached. Make certain the power cord is unplugged during this procedure. Perform the following steps to attach the unit to the mounting bracket: 1.

  • Page 30: Airocide® System Initial Start Up

    Initial Start Up of the Airocide® System To start up the system, from the User Interface Panel, turn the On/Off switch to the “On” position. The Airocide® System will start, with all 4 LED lights illuminating for approximately 2 seconds, then only the green power light and blue system light should remain on.

  • Page 31: Operation Of The Airocide® System

    Failure to do so may cause irreparable harm to electronic components and void the warranty. • Power Quality – The Airocide® System is designed to operate within an electrically clean 100-240VAC single phase electrical environment.

  • Page 32: Maintenance & Care

    Maintenance Kits, containing the required number of lamps for your particular model. Contact your Airocide® dealer to purchase a kit. To change the lamps in your Airocide® System you will need an Airocide® Annual Maintenance Kit conforming to your Airocide® model and a Phillips...
  • Page 33 Once you have these items, perform the following steps to replace the lamps: 1. Turn the On/Off switch to Off position. 2. Unplug the power cord to the Airocide Unit. 3. Using a Phillips (cross-head) screwdriver, carefully remove the screws securing the outer cover to the unit chassis.
  • Page 34 Once this occurs the lamp replacement timer has been reset. If for some reason, the yellow LED remains on and/or flashing, contact an Airocide service technician or the dealer from which you purchased the unit. 13. Turn unit switch to the off position and unplug power cord.
  • Page 35 To replace the screen, perform the following steps: 1. Turn off the power to your Airocide® System. 2. Open the Air Inlet Port door by turning the two latches on either side of the door panel to reveal the large particulate screen.

  • Page 36: Large Particulate Screen

    Periodic cleaning is recommended as outlined below. Outer Cover The Airocide® cover is designed to minimize accumulation of dirt and dust. In order to clean the outer cover, use a damp cloth and wipe down the unit surfaces. If necessary, a mild detergent may be used. Do not use bleach or solvents on the cover, or you may damage the finish.

  • Page 37: Trouble Diagnosis Guide

    Trouble Diagnosis Guide Trouble Diagnosis In the event you experience problems with the operation of your Airocide® System, refer to the following guides: Problem Solution AiroCide System Will Not Power On - Make certain power cord is plugged in - No lights on User Interface Panel - Make certain Power switch is in the “On”...

  • Page 38: Limited Warranty

    Company. 4. In order to repair the Airocide® unit and restore it to a fully operational condition, the Company or its Authorized Representative may alter the...
  • Page 39 Airocide can be contacted by mail, telephone, or through the internet. Phone calls need to be made between the hours of 8 AM and 10:00 PM ET Monday through Friday.
  • Page 40 Authorized Representative, between the hours of 9:00 AM and 5:00 PM (EST) Monday through Friday, at: Tel: (904) 223-1008 The cost of the transportation of the Airocide® unit to and from the Company service center, or that of an Authorized Representative shall be borne by the Purchaser, unless Company and the Purchaser agree otherwise, in writing.
  • Page 41 Disclaimer of Implied Warranties and Other Liabilities: Please read the following disclaimers and limitations carefully. There are no warranties that extend beyond the description on the face hereof. The seller undertakes no responsibility for the quality of the goods except as otherwise provided herein. The seller assumes no responsibility that the goods will be fit for any particular purpose for which you may be buying these goods, except as otherwise provided herein.
  • Page 42 (Subpart B, Class B), ICES-003 and the California Air Resources Board (CARB) requirements. Airocide APS-1000XL This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 43 ARB Certified by the California Environmental Protection Agency’s Air with the federal ozone emissions limit. Resource Board. ARB CERTIFIED Airocide® Systems - Product Specifications APS-1000XL Dimensions (lenth x width x depth) 19” x 21” x 5” (49cm x 53.4cm x 12.5 cm) Weight 19.03 lbs (8.63 kg)
