- Page 1 2.4GHz Digital Wireless Video Door Phone User Manual...
-
Page 2: Table Of Contents
Contents Introduction ................2 Features ..................2 Packing list ................2 Outdoor camera ................ 4 Indoor monitor ................4 6. Installation instructions .............. 5 7. E-lock installation............... 7 8. Operation ................... 9 9. Working environment .............. 13 10. Notices ................... 13 11. -
Page 3: Introduction

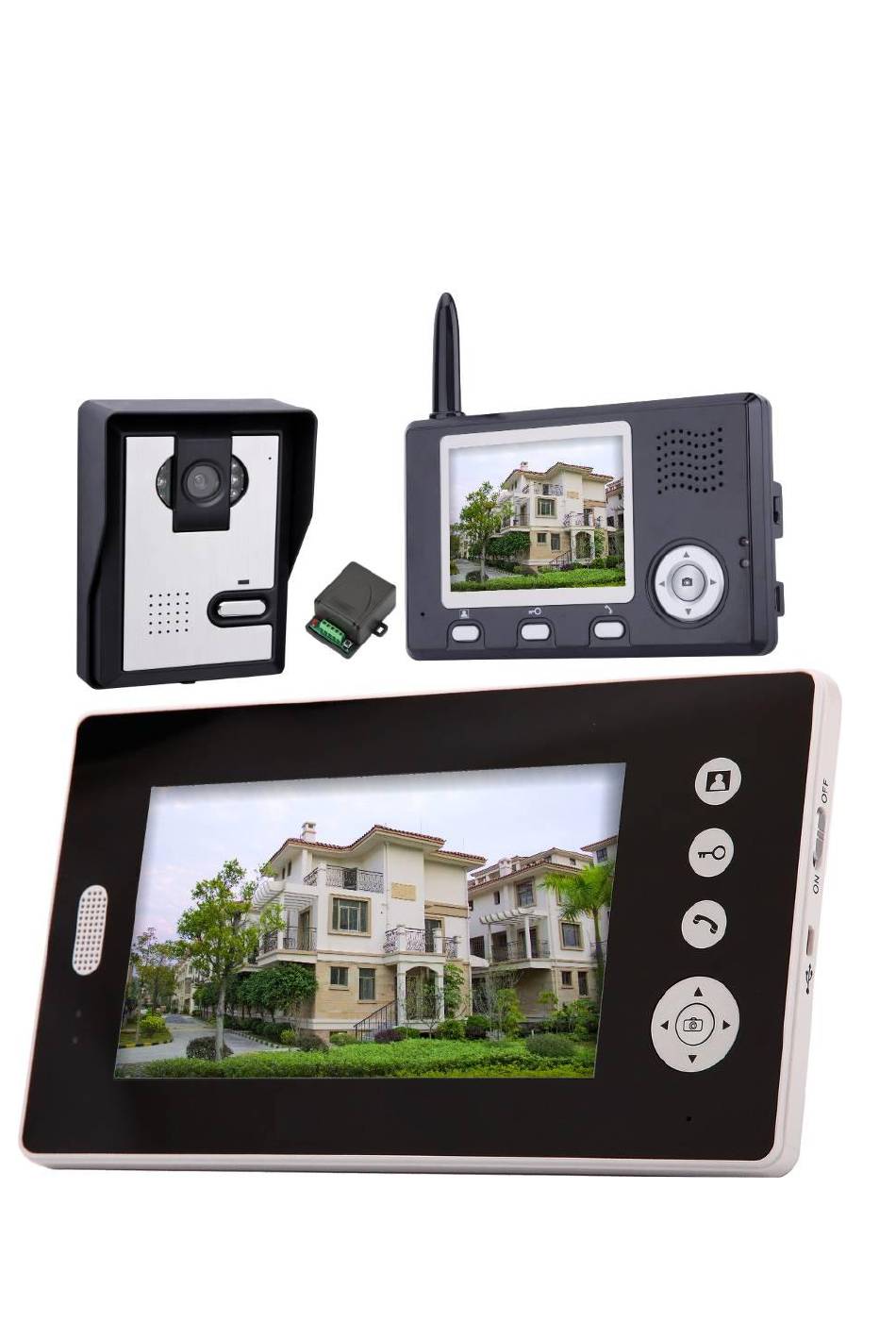

1. Introduction The product is applicable in office, house, apartment, hotel, building and so on. The outdoor camera is easy to install. Indoor monitor is portable. It can be hung on the wall, or be placed on the desk. 2. Features 2.4GHz digital frequency hopping and encryption technology, transmission distance up to 200 meters in free field, robust anti-interference (2) Clear night vision can capture image in low-illumination environment... - Page 4 (3) DC cable (4) BL-5J battery (optional) (5) Wireless unlock control (6) Remote control (optional) (7) Screws and stoppers (8) double-sided tape Indoor monitor part (9) 3.5” indoor monitor 7 indoor monitor (10) USB power adaptor; Input: 100-240V 50/60Hz Output: 5V/1A (12) Fixed iron for 7”...
-
Page 5: Outdoor Camera
4. Outdoor camera (1) Microphone (2) Camera lens (3) Rain shield (4) Infrared light (5) Indicating light, show green if press ‘pair’ or ‘call’ button, show red if low voltage (6) Indicating light for recharge (7) ‘Call’ button (8) Speaker (9) Adaptor interface (+5V, GND) (10) ‘Pair’... -
Page 6: Installation Instructions
(B) 7” indoor monitor (1) Speaker (2) TFT screen (3) Antenna (4) Microphone ‘Monitor’ button ’Unlock’ button (7) ’Talk’ button ▼ Left Down (10) Right (11) charging light ▲ ‘Take picture ’ button (14) (12) Working light (13) (15) USB interface (16) Power switch (17) Fixed slot (18) Battery lid (19) Bracket... - Page 7 install the outdoor camera to get the best position. If wiring needs to go through wall, the plug should be firstly wrapped with tape so as to avoid the sand or dirt going into the plug thus resulting in malfunction. Use double-sided tape fix outdoor camera on the wall or door as the following diagram.
-
Page 8: E-Lock Installation
7. E-lock installation E-lock and power of e-lock are not included in this product. Wireless unlock control connects the e-lock, shares 12V power adaptor with e-lock when it works. Notes: The distance between wireless unlock control and outdoor camera should be within 10 meters so that the wireless unlock control is able to receive unlock command. - Page 9 Schematic diagram The system can work together with intelligent lock, Intelligent lock uses 4pcs AA batteries.
-
Page 10: Operation
8. Operation Note: When the system is in working condition, if there is no blocking wall between indoor monitor and outdoor camera, you must keep them at least 6 meters apart to avoid the ‘whistle’ sound. A Setting (1) Date and time When indoor monitor is in non-talk mode, press button for 3 seconds, there will be a "T"... - Page 11 press ▲, ▼ to adjust brightness. Adjust level: 0-7. Operation Indoor monitor turn on/off Turn on : Turn the power switch to “ON”, working light display red and rings the melody. Turn off : Turn the power switch to “OFF”, working light off。 Maximum Com-sign is level 6.
- Page 12 standby mode automatically after 30 seconds. B. If do not want to let the visitor go in after seeing the video, no operation or press the button to turn off the screen and then enter into standby mode. Indoor monitor enters into the standby mode after 30 seconds if no any operation. Note: if you use multiple indoor monitors, please keep distance among indoor monitors to avoid affecting talk effect.
- Page 13 seconds. When take a new picture, it will replace the first picture if no memory is available. (2) Browse pictures In the non-talk mode, press button to browse the stored pictures, then press button or after 10 seconds to quit browse mode. (3) Delete pictures Firstly turn off the indoor monitor, then press button together, turn...
-
Page 14: Working Environment
button of indoor monitor at the same time, the screen will show “ver4 4v1 pairing”, if pairing succeeds, the video will be shown in the screen of indoor monitor. Secondly, repeat the above operation as soon as possible until finish all pairing. Thirdly, check whether pairing is successful, let system power on again, and then press ‘monitor’... -
Page 15: Specifications
(3) Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. 11. Specifications Camera Indoor monitor Input：AC 100-240V Light Source 6 LED lights USB Power 50/60Hz Output：DC 5V/1A 3.5”TFT 320×240 CMOS 300K Camera... -
Page 16: Failure Diagnosis
12. Failure diagnosis Malfunction Checking Debug If turn the switch to the "ON"? Turn the switch to the ON Fail to start the If the power of Li-on battery is product Charge the Li-on battery not enough? If the plug of power adaptor Re-connect indoor monitor correctly plug into miniUSB? with power adaptor...
