orfit AIO SOLUTION AC-SC Instructions For Use Manual

THE AIO SOLUTION
ACCESSORIES
STORAGE CABINET
AIO SOLUTION® code: AC-SC
Article No. : 29100
A. GENERAL PRODUCT INFORMATION
The product referred to in these instructions is a
storage system for the AIO Solution
device used for patient positioning and
immobilisation in radiation therapy.
B. PRODUCT DESCRIPTION

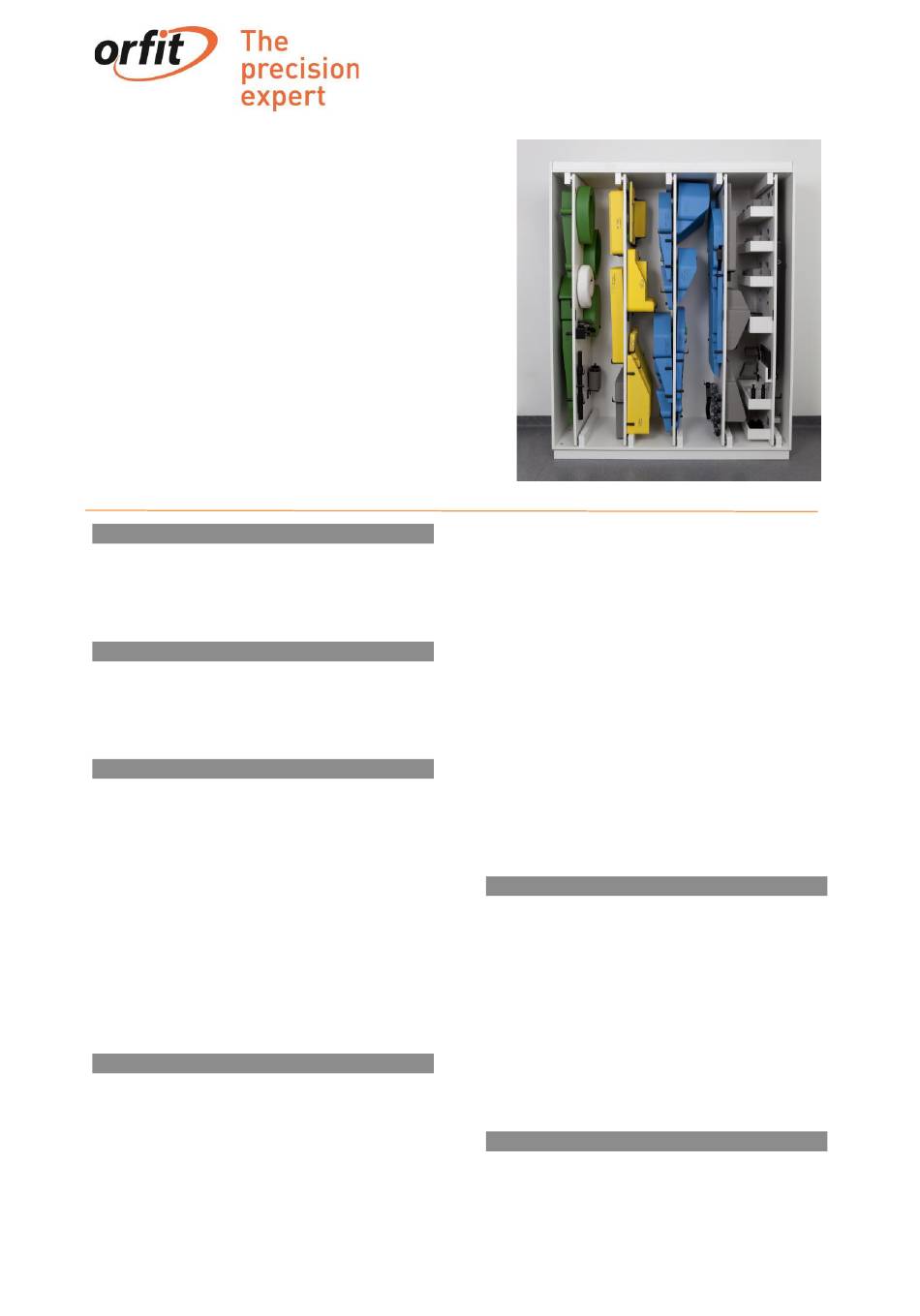

This AIO cabinet is a storage system for "THE
®
TOTAL AIO SOLUTION PACKAGE". It features
retractable panels with dedicated spaces for all the
items contained in the AIO Solution
C. PRECAUTIONS FOR USE
Always use the correct tools for screwing, gluing
and cutting. Wear working gloves when handling
the fibre wood plates to avoid injuries. Wear eye
protection and working gloves whenever using
power tools.
The cabinet will tip over if all five panels are slid
out at the same time! Therefore it is highly
recommended to fix the cabinet to the wall
(fixation elements included in the package).
Do not place the AIO HPL base plate in the cabinet
as the hooks cannot carry the weight!
D. WEIGHTS AND DIMENSIONS
D.1. AIO CABINET
The AIO cabinet is made of fibre wood panels with
melamine white finish.
®
Overall dimensions:
®
, a medical
Weight: 200 kg
D.2. CASE
The case is made of fibre wood panels which are
screwed together.
Overall dimensions:
®
package.
Weight of packaging: 91 kg
Total weight cabinet + case: 291 kg
E. ASSEMBLY INSTRUCTIONS
The AIO cabinet must be assembled by two
persons.
Place the assembled AIO cabinet with the back
against the wall. Keep ± 20 cm (± 7,9") of free
space on both sides and ± 120 cm (± 47,2") of free
space at the front to slide out the panels.
The AIO cabinet requires at least an area of 1605 x
695 mm (63.2" x 27.4").
Minimum height = 1985 mm (78.1").
F.
- Power tool with crosshead bit PZ2 (Pozidrive)
- Rubber hammer
- Gloves, protective glasses
Page 1 of 9
INSTRUCTIONS FOR USE
Width 1600 mm (63")
Height 1980 mm (78")
Depth 690 mm (27.2")
Length 1950 mm (76.8")
Width 1000 mm (39.4")
Height 780 mm (30.7")
REQUIRED TOOLS
