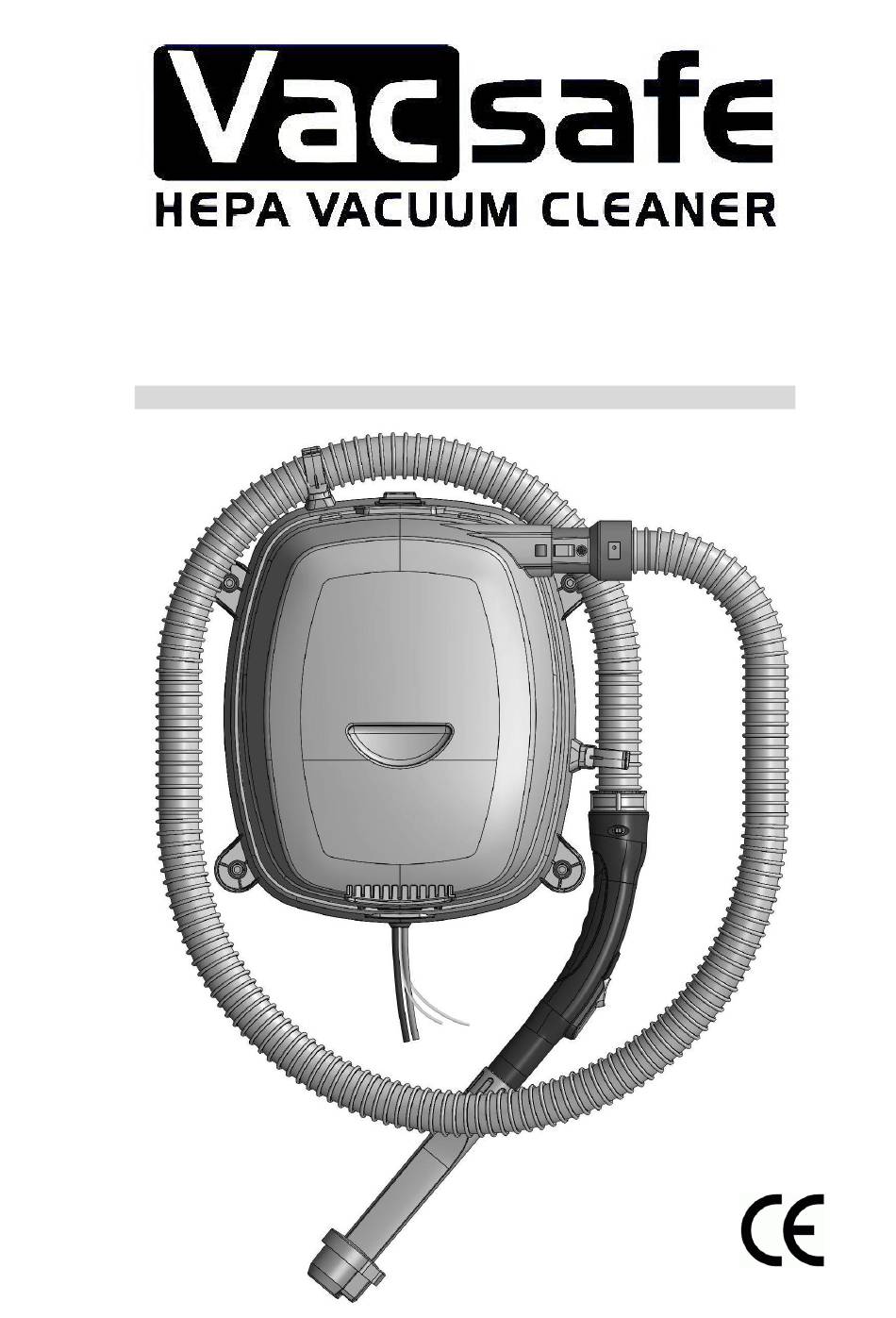

- Page 1 INSTRUCTION MANUAL MODEL NO: TV4 / TV4X / TV2409 PLEASE READ THE INSTRUCTION MANUAL BEFORE OPERATION...
- Page 2 TV4 PART NAMES Hose clip HEPA filter cartridge Power Switch Filter sealing Plug Motor base Hose Connector Power cord Filter release button Bend connector Air adjuster Hose set Accessories: Description Q'ty Hose set Extension pipe Crevice tool Upholstery nozzle...
- Page 3 TV4X PART NAMES Hose clip HEPA filter cartridge Cover Filter sealing Plug Motor base Hose Connector Power cord Filter release button Bend connector Air adjuster Hose set Accessories: Description Q'ty Hose set Extension pipe Crevice tool Upholstery nozzle...
- Page 4 TV2409 PART NAMES Hose clip HEPA filter cartridge Power Switch Filter sealing Plug Motor base Hose Connector Power cord Filter release button Bend connector Air adjuster Hose set Accessories: Description Hose set Extension pipe Crevice tool Upholstery nozzle...
- Page 5 How to install the HEPA filter cartridge: Installation of HEPA filter cartridge: Removal of HEPA filter cartridge: 1. Please align the two holes in the HEPA 1. Remove hose & install filter sealing plug. filter cartridge with the two tabs on the (Item 4 New one supplied with new filter).
- Page 6 How to assemble or modify the accessories: Hose installation and release: Release [Release] [Installation] Press button down of connector to release Remove filter cartridge sealing plug and connect hose. hose into the suction hole. - * Save the plug How to change connector of hose Disconnection (as A part): 1.
- Page 7 Air adjuster function: If you would like to increase or decrease suction, you can alter the airflow adjuster by the above operation showing. Closing the adjuster off will give you full airflow. (max capacity). Purposes of nozzles: Upholstery nozzle Crevice tool Purpose: for a small area, such as a seat, Purpose: for window, narrow groove, corner, window, under a desk, etc.
- Page 8 1. Check the nozzle, flexible hose, extension pipes if they are blocked or need cleaning. 2. If clear, then replace the filter cartridge. 3. Please note that HEPA filters cannot be cleaned. To dispose of the old filter, install the sealing plug & dispose of it safely.
- Page 9 Installation of vacuum cleaner: 295 mm 281 mm...
