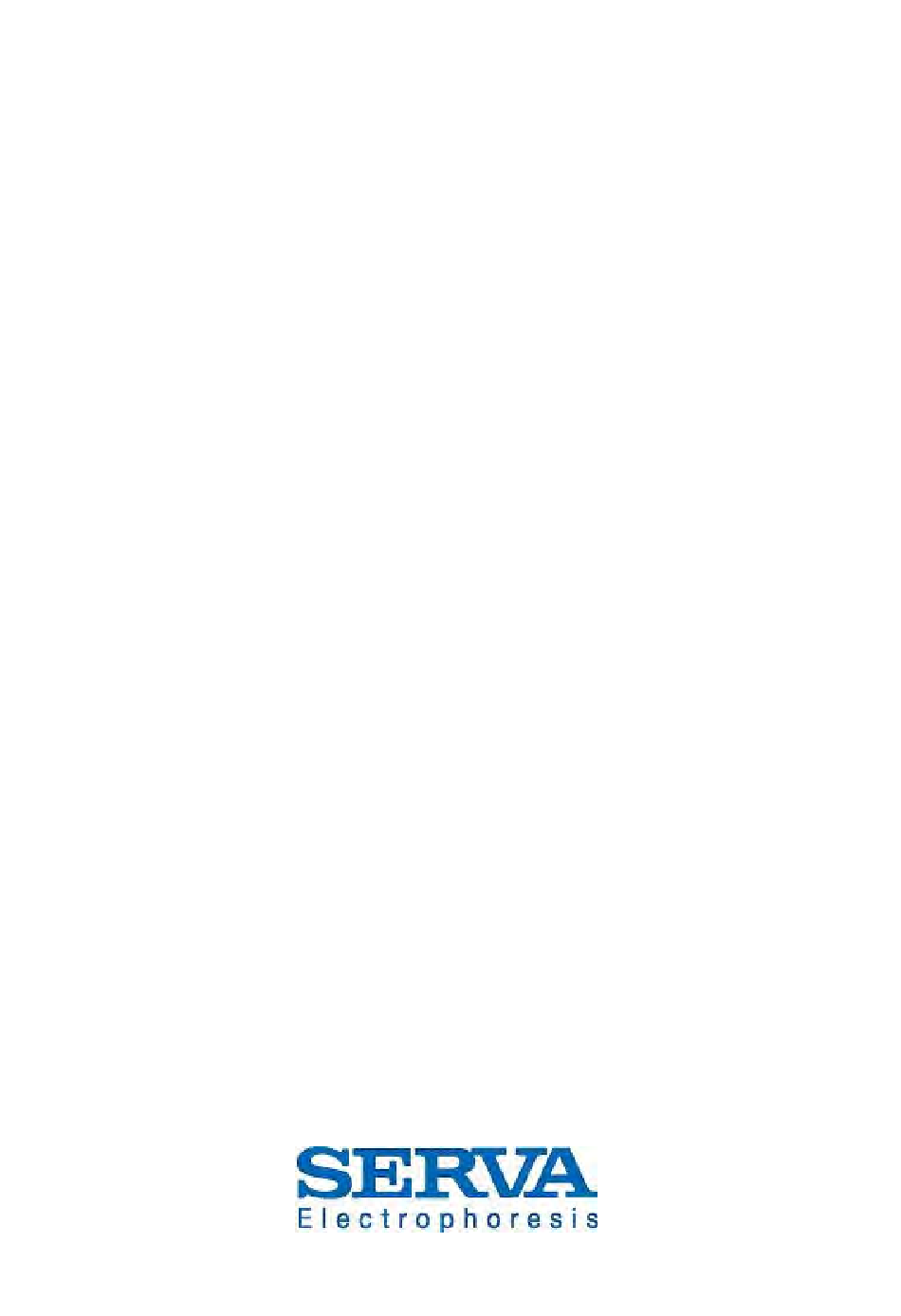

BlueLine
Instruments for Electrophoresis
I
M
NSTRUCTION
ANUAL
___________________________________________________________________
BlueSpin Cryo
(Cat. No. BSD-CRYO)
SERVA Electrophoresis GmbH - Carl-Benz-Str. 7 - D-69115 Heidelberg
Phone +49-6221-138400, Fax +49-6221-1384010
e-mail: info@serva.de - http://www.serva.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlueLine BlueSpin Cryo and is the answer not in the manual?

Questions and answers

Summary of Contents for serva BlueLine BlueSpin Cryo

  • Page 1 BlueLine Instruments for Electrophoresis NSTRUCTION ANUAL ___________________________________________________________________ BlueSpin Cryo (Cat. No. BSD-CRYO) SERVA Electrophoresis GmbH - Carl-Benz-Str. 7 - D-69115 Heidelberg Phone +49-6221-138400, Fax +49-6221-1384010 e-mail: info@serva.de - http://www.serva.de...

  • Page 2: Table Of Contents

    Index Meanings of Symbols & Safety Precautions ............2 Symbols on the device .................. 2 Safety Precautions ..................2 Packing List & Technical Specifications ............... 4 Packing List ....................4 Technical Specifications ................4 Installation ......................5 Operation ......................8 Control panel ....................

  • Page 3: Meanings Of Symbols & Safety Precautions

    1 Meanings of Symbols & Safety Precautions Symbols on the device Symbol Meaning Symbol Meaning Indicate a hole for Attention and manual door warning for opening in case electric shock of emergency Attention and Attention and warning for door warning for rotor opening and coupling.
  • Page 4 • Unapproved rotors and associated accessories should not be used. • Before operating the instrument, check if the rotor and the rotor lid are securely fastened. • The instrument should be operated with a rotor properly installed and secured to the motor shaft. •...

  • Page 5: Packing List & Technical Specifications

    2 Packing List & Technical Specifications Packing List • Microcentrifuge • 6 mm Wrench • Rotor Locking Tool • Emergency Open Tool • Power cord • Manual Technical Specifications Max. RPM / RCF 17,000 rpm / 27,237 xg Max. capacity 30 x 2.0 ml tubes 8 x 8-tube PCR strips Temp.

  • Page 6: Installation

    3 Installation 1. Connect the AC Power cord to the power socket on the back of the instrument. 2. Turn on the instrument by pressing the switch on the back of the instrument. 3. For opening the door, press the [DOOR] button. 4.
  • Page 7 7. Mount a proper rotor into the motor shaft. 8. Grasp the rotor with one hand, and place Rotor Locking Tool at the center hole of the rotor. To assemble the rotor: Rotate the Rotor Locking Tool clockwise until tightly assembled. To disassemble the rotor: Rotate the Rotor Locking Tool counterclockwise 9.
  • Page 8 Correct Ways of Sample Balancing & Tube usage:...

  • Page 9: Operation

    4 Operation Control panel Button Function RPM / For automatic conversion of RPM / RCF and to set the speed TIME Use to set time, available range up to 99 min 59 sec (00:00: continuous) Temp Use to set temperature (-20 °C ~ 40 °C) Use to set the acceleration &...

  • Page 10: Setting Rpm / Rcf

    Setting RPM / RCF 4.2.1 Setting RPM 1. Speed setting unit: 10 rpm or 100 rpm RPM MODE is generated by pressing the [RPM / RCF] button once. RPM LED is flickering on the display window. 2. Press the [▲▼] buttons to change input value. After 5 seconds from touching the [▲▼] buttons, the unit of setting value is changed from 10 rpm to 100 rpm.

  • Page 11: Setting Time

    Setting Time 1. Speed setting unit: 1 min or 10 min / 1 sec or 10 sec Time is down-counted after starting centrifugation. Press the [TIME] button once. MIN LED is flickering. 2. Press the [▲▼] buttons to change the minute value. After keeping holding finger on the [▲▼] buttons for 5 seconds, the unit of setting value is changed from 1 min to 10 min.

  • Page 12: Fast Cool

    4.4.2 Fast Cool 1. Set the temperature as described in the chapter: “Setting temperature” 2. Touch the [Fast Cool] buttons for fast cooling. “Fast Cool” on LED is turned on. The display shows a message as follows: “Searching Rotor” >> “recognition OK!”...

  • Page 13: Program Saving & Recalling

    Program Saving & Recalling 4.6.1 Saving 1. Set parameters. 2. Touch the [PROG] button longer than 3 seconds. 3. Touch the [▲▼] buttons to change input Program number. If you do not touch the [▲▼] button for 5 second, the setting mode is cleared. Save up to 100 programs.

  • Page 14: Pulse

    Pulse 1. If you press the [Pulse] button and release at the point you want to stop, the centrifuge decelerates immediately. Emergency Door Open 1. The door can be unlocked manually using the Emergency Door Open Tool through the emergency opening hole.

  • Page 15: Maintenance

    5 Maintenance Outer part of Instrument • Clean the outside of the instrument with dry soft cloth. If necessary, dip the cloth in neutral detergent and clean contaminated area. Keep completely dry after cleaning. • Do not use any volatile chemicals such as alcohol and benzene, etc. •...

  • Page 16: Trouble Shooting

    6 Trouble Shooting Check List Symptom Check list Connect the AC Power cord and make sure that the line is Power failure completely connected between the instrument and power outlet. Check the power switch is turned on. If the door is not closed completely, the instrument can’t run.

  • Page 17: Error Code

    Error code If the instrument shows the error code with beeping sound, press [STOP] button to stop the beeping sound and press [Enter] button to release of the error status and make the instrument go to the default setting again. Error Possible Causes Actions...
  • Page 18 • If the function of rotor recognition is failed, this message is appeared. Rotor ID or RPM • This message will be cleared by coupling an Error 9 Sensor appropriate rotor. • If the error code shows continuously, please contact your distributor. •...

  • Page 19: Rotors And Accessories

    7 Rotors and Accessories Product Cat. No. A Fixed Angle Microtube Rotor with aluminum lid for 24 BS-MRR24 microtubes A Fixed Angle Microtube Rotor with aluminum lid for 30 BS-MRR30 microtubes A Fixed Angle PCR-tube Rotor for 8 rows of PCR strips, no lid BS-MRP64 0.2 ml Adaptor of microtube rotors BS-A02...
  • Page 20 This declaration is no longer valid if the This declaration is no longer valid if the machine is modified without machine is modified without our consent. Authorized representative: SERVA Electrophoresis GmbH SERVA Electrophoresis GmbH Carl-Benz-Str. 7 D-69115 Heidelberg Tel: +49-6221-13840-0...
  • Page 21 To place orders Carl-Benz-Str. 7 Phone: 06221 13840-0 Please contact your local D-69115 Heidelberg Fax: 06221 13840-10 Distributor Germany (please visit www.serva.de) SERVA Electrophoresis Customer Care Customer Care GmbH Phone: 06221 13840-46 Phone: +49 6221 13840-47 Pinnauallee 4 Fax: 06221 13840-10...
