Summary of Contents for Guinaz R3680

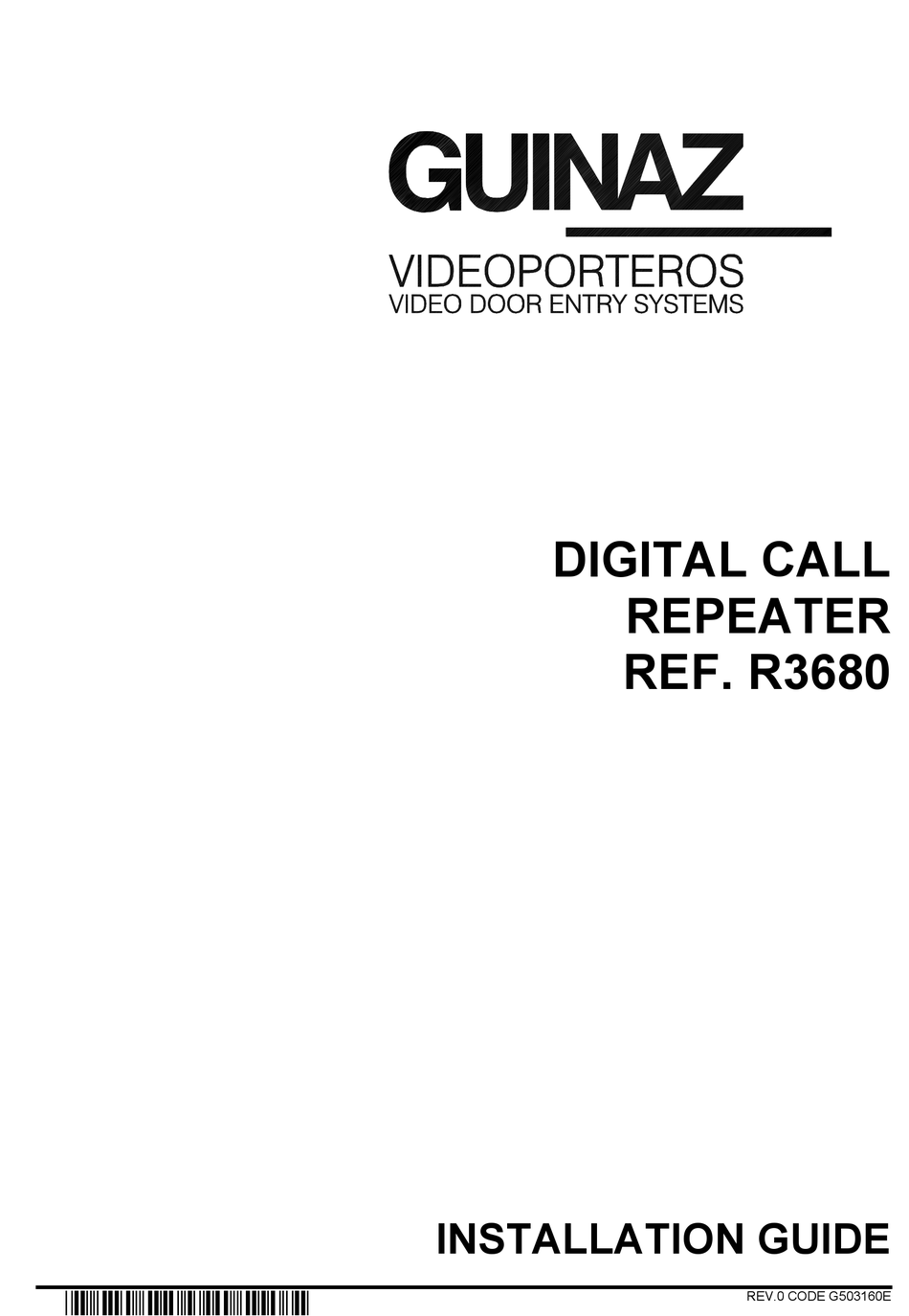

- Page 1 DIGITAL CALL REPEATER REF. R3680 INSTALLATION GUIDE REV.0 CODE G503160E *G503160E*...
- Page 2 1. OPERATION AND CONFIGURATION When a call is made from the street panel to the house, the R3680 repeater sounds a tone simultaneously with the house telephone or monitor. This requires that the eight micro switches in the repeater be set to the same number as the house telephone or monitor.
- Page 3 TO INSERT CABLES 4. STANDARDS FOR USE This device must be used only in Guinaz door and video door opening systems. It must be installed as described in this guide, complying with the current regulations. Only specialised personnel must carry out internal work to it, always with the power supply disconnected.
- Page 4 Guinaz SL, P El Escopar P2, 31350 Peralta, Navarra, Spain T +34 948 713 182 F +34 948 750 659 comercial@guinaz.com www.guinaz.com PAGE 4 REV.0 CODE G503160E...
