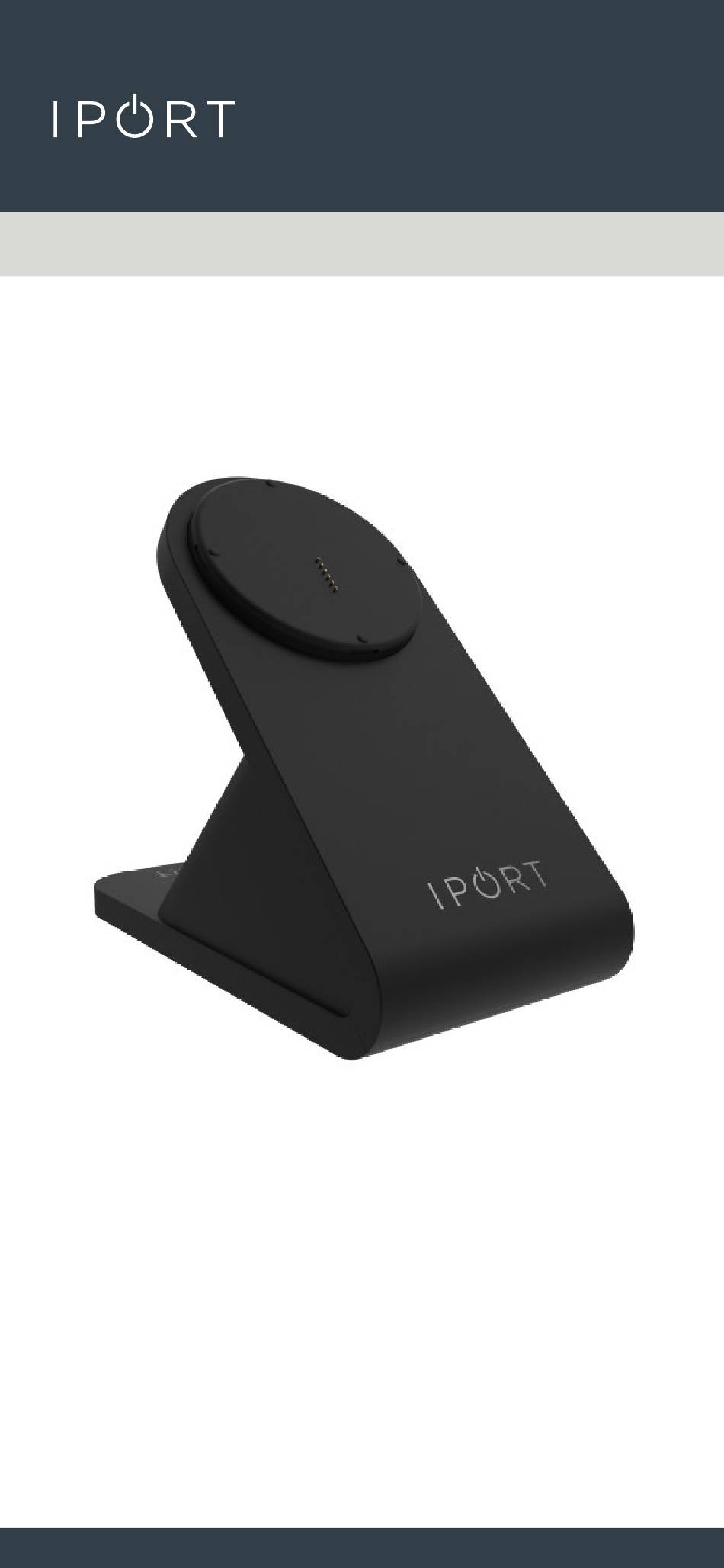

- Page 1 CONNECT B AS E STAT IO N 72352 - BaseStation - Black 72353 - BaseStation - White...
- Page 2 - IPORT Team Whats in box: 1 - IPORT CONNECT BaseStation 1 - IPORT Power Supply - 25V 1.5A DC. 2.1 mm x 5.5 mm connector. 4 - Mounting Screws 1 - IPORT Security Tool 1 - Info Card Product Info Page - www.iportproducts.com/cpbase...
- Page 3 CONNECT B AS E STAT IO N Using the Provided DC Power Adapter Remove BaseStation and Power Supply from the box and place on a table. Insert the DC barrel plug into the bottom of the Base Station.
- Page 4 CONNECT B AS E STAT IO N Rotate the Cable retention clip over the DC cable.
- Page 5 CONNECT B AS E STAT IO N Plug in the IPORT DC Power Adapter into the wall. Place the BaseStation in the desired location and attach the IPORT Connect Pro Case onto the BaseStation to charge in portrait or landscape.
- Page 6 B AS E STAT IO N Upgrading the BaseStation to PoE Remove PoE+ Upgrade from the box and place on a table. Insert the IPORT Security Tool into the small holes in the back of the BaseStation foot. Rotate the tool counterclockwise until it stops.
- Page 7 CONNECT B AS E STAT IO N Tilt the BaseStation forward to allow the BaseStation Weight to come out of the bottom of the BaseStation. Use Caution as the BaseStation Weight is very heavy.
- Page 8 CONNECT B AS E STAT IO N Disconnect the DC Barrel cable if installed and pop out the BaseStation Cable Housing cover.
- Page 9 CONNECT B AS E STAT IO N Remove the DC Barrel cable from the BaseStation Cable Housing and Disconnect the cable from the IPORT DC Adapter.
- Page 10 CONNECT B AS E STAT IO N Attached the IPORT Connect PoE+ Upgrade Adapter to the IPORT DC Adapter as shown:...
- Page 11 CONNECT B AS E STAT IO N 7. Run a Cat 5 Cable through the cable housing and attach to the PoE + Splitter.
- Page 12 CONNECT B AS E STAT IO N Run the Cat 5 cable in the Cable Retention Channel and rotate the Cable Retention clip over the Cat 5 Cable.
- Page 13 B AS E STAT IO N Reassemble the BaseStation back onto the BaseStation Weight and tighten the Security Screws rotating clockwise. Connect the other end of the Cat 5 Cable to a PoE+ Switch or an IPORT PoE Injector 72106 (Sold Separate).
- Page 14 BaseStation Security Features - Securing the Base to a Table. Remove BaseStation from the box and place on a table. Insert the IPORT Security Tool into the small holes in the back of the BaseStation foot. Rotate the tool counterclockwise until it stops.
- Page 15 CONNECT B AS E STAT IO N Tilt the BaseStation forward to allow the BaseStation Weight to come out of the bottom of the BaseStation. Use Caution as the BaseStation Weight is very heavy.
- Page 16 CONNECT B AS E STAT IO N Place the BaseStation Weight in the desired location for securing the BaseStation. Use a pencil to mark the four mounting locations. Make sure the rectangle notch is facing where the back of the BaseStation will be positioned.
- Page 17 CONNECT B AS E STAT IO N Use the four provided screws to secure the BaseStation Weight to the desired surface.
- Page 18 CONNECT B AS E STAT IO N Reinstall the BaseStation by hooking the front of the BaseStation foot the to front of the BaseStation Weight and then placing the back of the BaseStation down on the Weight.
- Page 19 CONNECT B AS E STAT IO N Insert the IPORT Security Tool into the small holes in the back of the BaseStation foot. Rotate the tool Clockwise until it stops. Repeat for the second hole.
- Page 20 CONNECT B AS E STAT IO N BaseStation Security Features - Securing the Case to the BaseStation. Place the Case onto the BaseStation in the final orientation desired (Portrait or Landscape) NOTE the case can not be rotated once it is locked in place.
- Page 21 CONNECT B AS E STAT IO N To lock the Case to the BaseStation, insert the IPORT Security tool into the back of the BaseStation and Rotate the tool clockwise with the red indicator facing the Lock icon.
- Page 22 CONNECT B AS E STAT IO N To unlock the Case from the BaseStation, insert the IPORT Security tool into the back of the BaseStation and Rotate the tool counterclockwise with the red indicator facing the Unlock icon.
