SI.NO
1
Propeller Type Water Current Meter
2
Direct Water Velocity Logger
3
Pygmy Water Current Meter
4
Universal Water Current Meter
5
Cup Type Water Current Meter
6
Digital Water Velocity Indicator
7
Pygmy Type Propeller Water Current Meter
IMPORTERS & EXPORTERS OF HIGH PRECISION INSTRUMENTS
789, Avinashi Road, Opp.
Regional Passport Office,
COIMBATORE - 641 018.
E-Mail : nunescbe@gmail.com
Mob : +91 93456 45640, +91 93452 26022
WATER CURRENT METER
PRODUCT NAME
11A, Sundar Street, 2nd Cross, Opp. Lala Mahal
Rathinapuri,
E-Mail : info@nunesinstruments.com,
INDEX
COIMBATORE - 641 027.
+91 93632 26022
P .NO
6-13
14-18
Ahinsa Khand-ii, Indirapuram,
Ghaziabad - 201 014. DELHI - NCR
E-Mail : instrumentsdelhi@gmail.com
website : www.instrumentsdelhi.com
www.theinstrumentation.com
2
3
4
5
19
11
Advertisement
Related Manuals for V-tech Nunes Instruments Propeller Type Water Current Meter
Summary of Contents for V-tech Nunes Instruments Propeller Type Water Current Meter
- Page 1 WATER CURRENT METER INDEX SI.NO PRODUCT NAME P .NO Propeller Type Water Current Meter Direct Water Velocity Logger Pygmy Water Current Meter Universal Water Current Meter Cup Type Water Current Meter 6-13 Digital Water Velocity Indicator 14-18 Pygmy Type Propeller Water Current Meter IMPORTERS &...

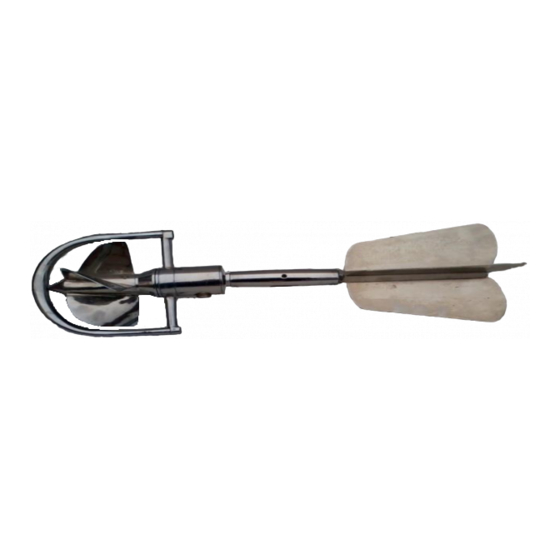

- Page 2 WATER CURRENT METER Propeller Type Water Current Meter Propeller Type Water Current Meter with a hoop to protected the current meter from floating debris and having permanent magnet mounted on its shaft conforming to I.S. 3910 1966 Standard duly calibrated from a Government - Recognized Institute having range 0.3 m/sec to 3.5 m/sec with multiple propellers.
- Page 3 WATER CURRENT METER DIRECT WATER VELOCITY LOGGER Mode of opera on : 1. Velocity mode : Date, Time, Velocity (m/s) 2. Time – Revolu on mode : Date, Time, Revolu on & dura on. Facility : stored measured data interfacing with PC Output data at PC in M.S.
- Page 4 WATER CURRENT METER Pygmy Water Current Meter Introduc on The pygmy water current meter is used for measuring the flow velocity of water in rivers open drainage system and small canals. Design The meter body design is of cylindrical shape and made up off brass. Signalsare generated virtually without any power by an impulse device actuated by magnet which is mounted on the sleeve od the propeller The encapsula on of the impulse device is completely water ght and pressure ght thus allowing reliable measurements to be obtained even in waters chemically...
- Page 5 WATER CURRENT METER UNIVERSAL WATER CURRENT METER Specifica on : Measuring Velocity : 0.04 m/s to 10 m/s Propeller Diameter : 125 mm Material Body : Non – corrosive high quality Calibra on : Provided by Govt. Agency. Ù...
- Page 6 INSTRUCTION MANUAL CUP TYPE WATER CURRENT METER Introduc on: Cup Type water current meter along with Micro-controller based Digital Water Velocity Indicator hasbeen designed to measure the Velocity of water in a flowingstream or open Canal. It comprises a Cup Type Water Current Meter & Microcontroller based Digital Water Velocity Indicator.
- Page 7 WATER CURRENT METER readings. This instrument is portable, hand-held easyto use, Ba ery status indica on, User Friendly Menu drivenprogrammable func ons. This instrument has a Cup type current meters are scaled two fi hs as large as thestandard type current meter, it does not have a tailing assemblyand is used with the wading rod.
-
Page 8: How To Assemble
WATER CURRENT METER How to Assemble Cup Type Water Current meter Sensor Accessories Fish Weight Hanging Plate Digital Water Current meter Velocity Indicator Sensor coupler Sensor Cable Ù... - Page 9 WATER CURRENT METER Wading Rod Base Plate First of all place the wading rod at the center of base plate & insert by screwing the wading rod as shown below.A er fixing wading rod (as per the depth requirement) to base plate place it on the floor.
- Page 10 WATER CURRENT METER Now a ach the sensor coupler to the sensor by screwing in clockwise direc on as shown below Ù...
- Page 11 WATER CURRENT METER Now Insert the sensor coupler to the wading rod, ghten side bolt to make it gripped perfectly with wading rod as shown below. Ù...
- Page 12 WATER CURRENT METER Now connect sensor cable to sensor terminals as shown below. Now connect other of sensor cable to Digital Water Velocity Indicator as shown below Now your configure the Digital Water Velocity Indicator as per instruc on provided below in Ù...
- Page 13 WATER CURRENT METER How to Change Batteries Changing Batteries of D ig ital Water velocity Indicator is very simp le process. First of all unscrew all t he four side screw with the help of screwdriver as shown below Now open the front panel by pulling the panel in upward direction. Here you will find batteries installed in the instrument motherboard.
- Page 14 WATER CURRENT METER Digital Water Velocity Indicator Details: Sensor Inputs Water Velocity Indicator Display 16 x 2 Func. / ve / Enter n / Off Features: · Micro controller based. · Storage for 56 readings. · Stored in EEprom (Remains intact even if ba ery removed). ·...
- Page 15 WATER CURRENT METER Opera onal Details For Indicator: Push the Power On/Off switch. The system performs a display test by glowing all display segments of LCD & displays the name of the company. The display then performs a self-check process and displays the Velocity ....m/sec with ba ery status and instrument is ready to take observa ons.
- Page 16 WATER CURRENT METER If you want to save any reading just press “SAVE” key. It will save data in the instrument memory and display the loca on number. V=00.00 Mtrs/Sec SAVED AT LOC. 01 If you want to retrieve previous save data just press “FUNC” and “DOWN” keys. It will display previous saved with loca on number.
- Page 17 WATER CURRENT METER First of all insert the fish weight hanging plate to the fish weight & insert the bolt followed by screwing nut to fix it . Now insert water current meter to the hanging plate & insert the bolt followed by screwing nut to fix it Ù...
- Page 18 WATER CURRENT METER Now attach hanging wire to the fish weight hanging plate insert the bolt followed by screwing nut to fix it as shown below Now fish -weight assembly is ready to lower to the river stream for measurement. Ù...
- Page 19 WATER CURRENT METER Pygmy Type Propeller Water Current Meter Introduc on The pygmy type propeller water current meter is used for measuring the flow velocity of water in rivers open drainage system and small canals. Design The meter body design is of cylindrical shape and made up off brass. Signalsare generated virtually without any power by an impulse device actuated by magnet which is mounted on the sleeve od the propeller The encapsula on of the impulse device is completely water ght and pressure...
