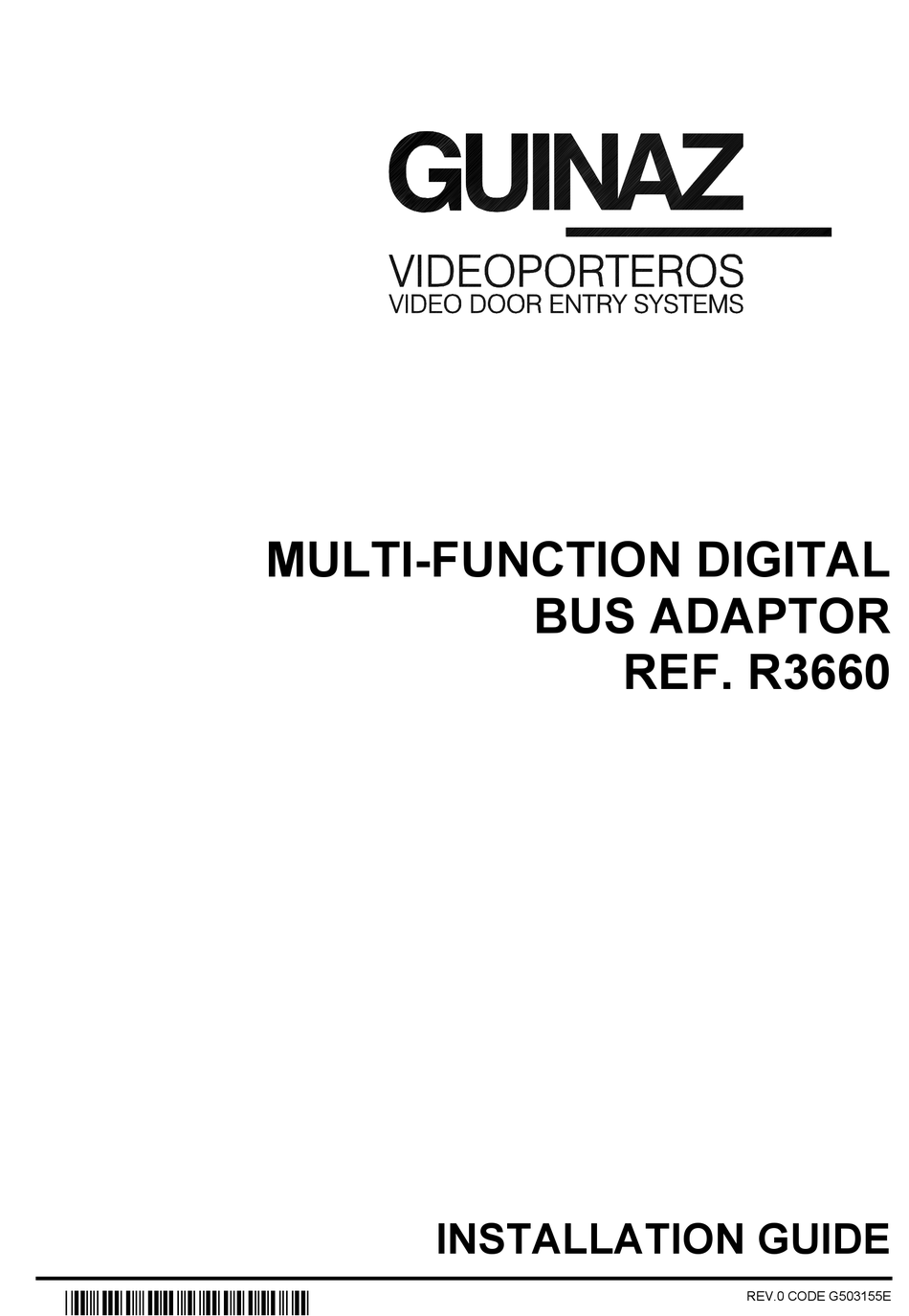

- Page 1 MULTI-FUNCTION DIGITAL BUS ADAPTOR REF. R3660 INSTALLATION GUIDE REV.0 CODE G503155E *G503155E*...
- Page 2 4.9 Immediate door opening on receiving a call from a dwelling. 4.10 Adjustable electronic timer. 4.11 Remote operation of the relay in a second R3660 adaptor. Alarm and panic button applications. 5. SETTING THE R3660 ADAPTOR ACTIVATION TIME 6.
-
Page 3: Functional Specifications
1. INTRODUCTION The R3660 multi-function digital bus adaptor is used to provide additional functions in Guinaz digital system installations. These additional functions are used-configurable. Both the event that produces the activation and the way of responding to the event can be configured as well as the manner of returning the device to its rest state. -
Page 4: Operating Modes
In this configuration any external element can be activated, such as a camera, a lift call, auxiliary lighting, a siren, etc, when a call is made from the street panel to any dwelling. The R3660 will activate the output relay when it detects a call being made from the street panel defined in the configuration. - Page 5 FIGURE 1: Connections schematic for the operating modes explained in sections 4.1, 4.2, 4.3 and 4.4. DIGITAL BUS 2M 3M MONITOR OR TELEPHONE Auxiliary light, RELAY siren, etc. CONTACTS 220Vac R3660 (Configure switches according to operation mode) 1M 2M 3M STREET PANEL DIGITAL BUS REV.0 CODE G503155E PAGE 5...
- Page 6 TV or computer screen. A pushbutton or the output from any electrical/electronic device must be connected to the input of the R3660 adaptor.
- Page 7 FIGURE 2: Connections schematic for the operating modes explained in sections 4.5, 4.6, 4.7 and 4.8. DIGITAL BUS 2M 3M MONITOR OR TELEPHONE EXTERNAL PUSHBUTTON/CONTACT R3660 (Configure switches according to operation mode) 1M 2M 3M STREET PANEL DIGITAL BUS REV.0 CODE G503155E PAGE 7...
- Page 8 This function can be cancelled by short circuiting with the EXT. INPUT switch on the R3660 adaptor, for example, so that the adaptor is inactive outside office hours. For this operating mode, the switches must be set as follows:...
- Page 9 BUTTON APPLICATIONS This type of configuration is used so that one R3660 adaptor receives an event or activation and orders a second R3660 adaptor to activate its output relay. Various adaptors can be installed to form a network, all configured with the same number (switch A), some operating in transmitter mode (sending the relay activation order) and others as receivers (activating their relays).
- Page 10 FIGURE 5: This figure shows the connections schematic for the operation mode explained in section 4.11. DIGITAL BUS 2M 3M RELAY CONTACTS R3660 (TRANSMITTER) (Configure switches according to operation mode) EXTERNAL PUSHBUTTON Auxiliary light, RELAY bell, etc.
- Page 11 OFF position. range set) 6. R3660 ADAPTOR CONFIGURATION - GENERAL This section provides a general description of the use of the three sets of switches to set the various R3660 operating modes. SWITCH A = 91 The eight switches are used to set the device number.
-
Page 12: Installation Standards
7. OPENING AND CLOSING THE R3660 ADAPTOR In those installations in which cables must be connected to the outputs of the internal relay in the R3660 adaptor, the device must be opened by removing the two side screws. The cables are inserted through the slot in the inner plastic protector and are connected to the terminals.
