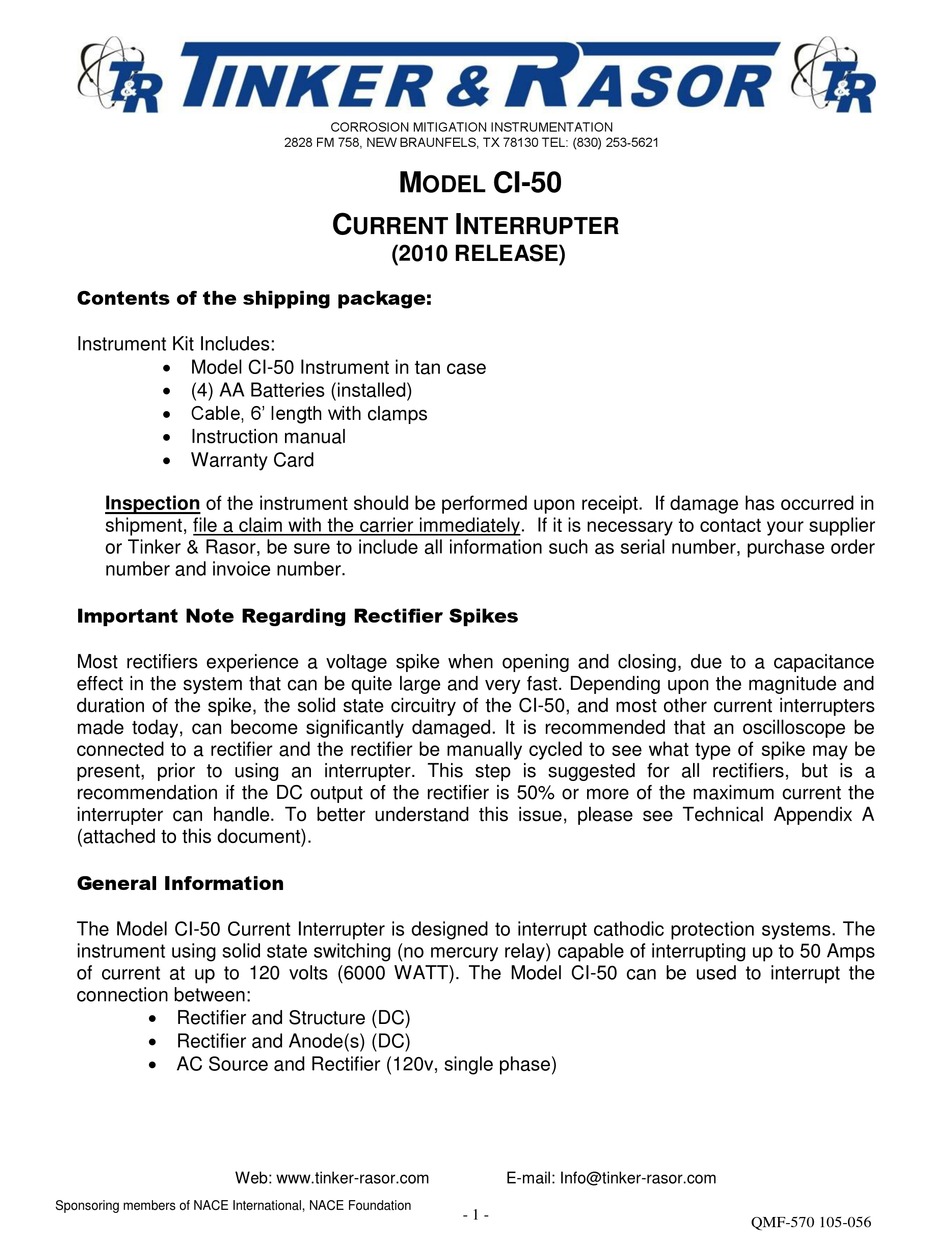

Contents of the shipping package:

Instrument Kit Includes:

 Model CI-50 Instrument in tan case

 (4) AA Batteries (installed)

 Cable, 6' length with clamps

 Instruction manual

 Warranty Card

Inspection of the instrument should be performed upon receipt. If damage has occurred in

shipment, file a claim with the carrier immediately. If it is necessary to contact your supplier

or Tinker & Rasor, be sure to include all information such as serial number, purchase order

number and invoice number.

Important Note Regarding Rectifier Spikes

Most rectifiers experience a voltage spike when opening and closing, due to a capacitance

effect in the system that can be quite large and very fast. Depending upon the magnitude and

duration of the spike, the solid state circuitry of the CI-50, and most other current interrupters

made today, can become significantly damaged. It is recommended that an oscilloscope be

connected to a rectifier and the rectifier be manually cycled to see what type of spike may be

present, prior to using an interrupter. This step is suggested for all rectifiers, but is a

recommendation if the DC output of the rectifier is 50% or more of the maximum current the

interrupter can handle. To better understand this issue, please see Technical Appendix A

(attached to this document).

General Information

The Model CI-50 Current Interrupter is designed to interrupt cathodic protection systems. The

instrument using solid state switching (no mercury relay) capable of interrupting up to 50 Amps

of current at up to 120 volts (6000 WATT). The Model CI-50 can be used to interrupt the

connection between:

 Rectifier and Structure (DC)

 Rectifier and Anode(s) (DC)

 AC Source and Rectifier (120v, single phase)
