Summary of Contents for Horizont E Series

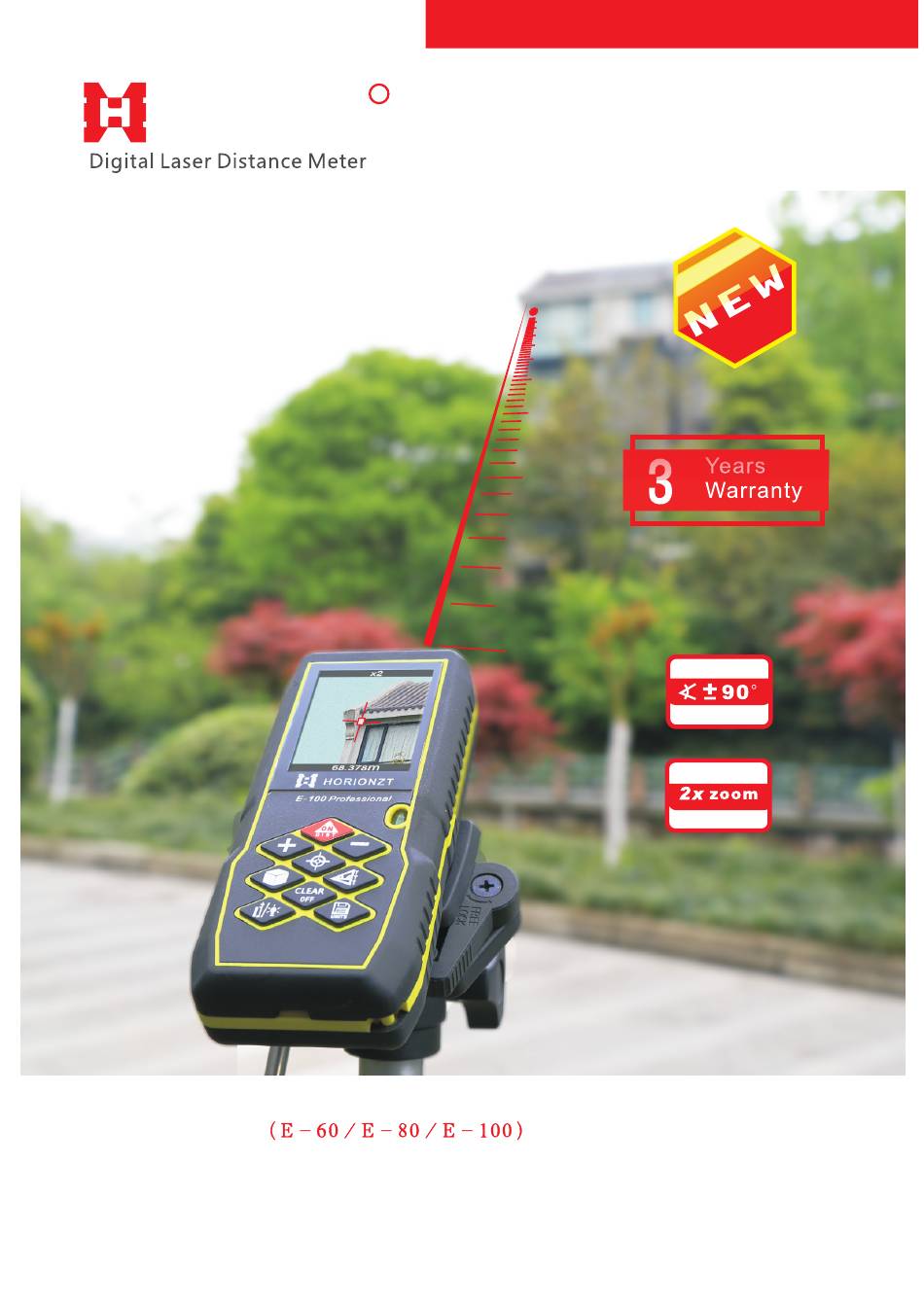

- Page 1 HORIZONT E- Professional English...
- Page 2 User Manual Version 1.2 English Thanks for your purchase E series (60/80/100m) digital laser distance meter. The safety instructions alone with the user manual should read carefully before initial operation. Helpful Hint:The first and last page including the pictures should look first,whilst reading through the manual.Letters and Numbers in braces {} refer to the illustrations.
- Page 3 Keypad Keypad function: ”key： 1、“ Short press: Single distance Measuring； Long press: Minimum/Maximum Measuring. ”key： 2、“ Short press: Addition measurement.(Under measuring mode)； Positive check the last 20 displays in the storage. (Under navigating data in the storage) ”key： 3、“ Short press: Addition measurement.(Under measuring mode)； Negative check the last 20 displays in the storage.
- Page 4 ” Digital pointfinder key: 9、“ The device has an integral digital pointfinder, which shows the target directly on the display. The displayed crosshairs allow precise measu-rements to be made even though the laser beam is not visible. Short press: Enter the digital targeting interface (zoom step 1x). Chang zoom step 1x-2x.
- Page 5 In this case you should rely on the actual laser dot for targeting the object 1． E series provide up to national standard lithium charger kit.When the lowest charge button show in the display,the product needs to be charged.
-
Page 6: Selecting Units
Selecting Units Long press key to change unit.Possible units： Distance Area Volume 0.000 m 0.000 m 0.000 m 0.000 ft 0.000 ft 0.000 ft 0.000 in 0.000 in 0.000 in Operation Simple operation 1、Open /Close system Open: Long press Close: Long press Note: The device will automatically turn off after 3 minutes of inactivity. - Page 7 6、Minimum/Maximum Measuring This function allows the user to measure the minimum/maximum distance from a fixed measuring point. It is commonly used to measure diagonal distances (maximum values) or horizontal distances (minimum values). Long press key until you hear a beep, indicating the device is in a continuous measuring mode.
- Page 8 Short press key once，The corresponding symbol “ ” appears in the display. Aim at the upper point (1) and trigger the measurement. After the first measurement the value is adopted. Keep the instrument as horizontal as possible. Aim at the point (2) and trigger the measurement, the partial results in Intermediate line 1 and line 2, and the result (the red line) will be displayed in the main.
- Page 9 the partial results in Intermediate line 1 ~ line 3, and the result (the red line) will be displayed in the main. 10、Historical storage Short press key to push the display data into storage. “ c” expressed store of success, and the last 180 data and 45 combined data displays are showed in reverse order.
-
Page 10: Message Codes
12、Stake out function Two different distances (a and b) can be entered into the instrument and can then be used to mark off defined measured lengths. Press this button six times and the stake out function symbol a b b appears in the display.by using ,you can adjust the values (first a and then b) to suit the desired stake out distances. - Page 11 Range Measuring accuracy ±1.5mm Smallest unit displayed Single distance 0.4-4s measuring time Unit m/inch/ft Laser class Class 2M Laser power ＜1mW Laser type 635nm Continue measurement Area measurement Volume measurement Addition/Subtraction Indirect measurement Minimum/Maximum Reference setting Historical storage Grade 6 Grade 6 Light intensity Grade 6...
-
Page 12: Measuring Conditions
Measuring Conditions digital laser distance meter is used indoor and outdoor. At night, at dusk and when the target is shadowed the measuring range without target plate is increased up .Use a target plate to increase the measurement range during daylight or if the target has a bad reflection. For distances over 50m –... -
Page 13: Prohibited Use
Prohibited use · Using the instrument without instruction. · Using outside the stated limits. · Deactivation of safety systems and removal of explanatory and hazard labels. · Opening of the equipment by using tools(screwdrivers, etc.), as far as not specifically permitted for certain cases. ·... -
Page 14: Hazards In Use
· To inform original manufacturer immediately if the equipment becomes unsafe. Hazards in use CAUTION: Watch out for erroneous distance measurements if the instrument is defective or if it has been dropped or has been misused or modified. Precautions: Carry out periodic test measurements. Particularly after the instrument has been subject to abnormal use, and before, during and after important measurements. -
Page 15: Laser Classification
radiation and electrostatic discharges are present, and without causing electromagnetic interference to other equipment. WARNING： E-series Professional conforms to the most stringent requirements of the relevant standards and regulations, Yet, the possibility of it causing interference in other devices cannot be totally excluded. WARNING：... - Page 16 Do not look directly into the beam with optical aids. CAUTION: Looking into the laser beam may be hazardous to the eyes . Precautions: Do not look into the laser beam .make sure the laser is aimed above or below eye level.
