Ozotech IQ20 Operation & Installation Manual

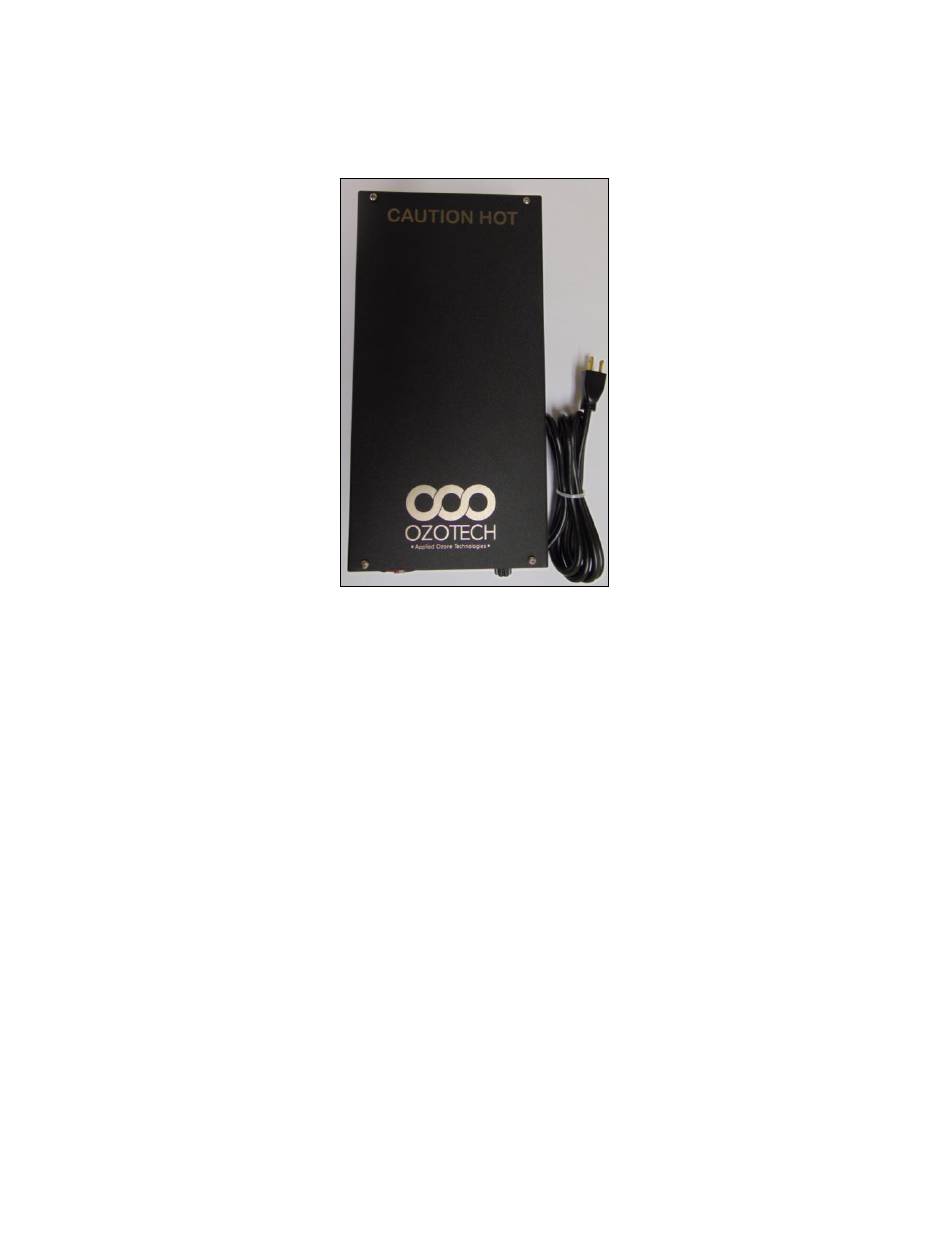

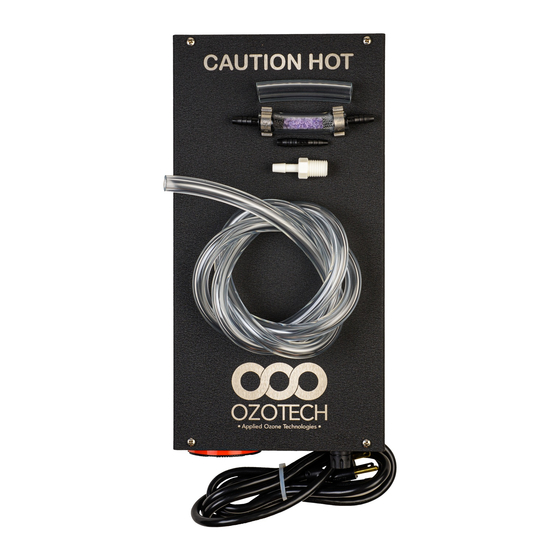

IQ20 DESICCANT AIR DRYER
This model of air dryer has ONE (1) vertical chamber of a new design, which will regenerate all
of the desiccant material, even when operated at an excessive flow rate.
Warranty:

SPECIFICATIONS:

• A vacuum source is required to draw air through the dryer.
• 5 to 20 SCFH, at -50 F dew point, 25% to 100% R.H.
• Regeneration time: 2 hours min. to 3 hours max. heating, plus 1 hour cooling.
(Factory Pre-set)
• Automatic heating with built-in timer. Easy to set time of day and regeneration time.
• 120VAC/230VAC 60 Hz, 85VA.
• Finish: Black, non-gloss powder coat, baked on.
• All hardware is stainless steel and aluminum.
• 12" high x 6.635"wide x 3.625" deep.
• 8.8 pounds (4.0 Kgs.) shipping weight.
NOTICE: IT IS IMPORTANT THAT THE FOLLOWING INSTRUCTIONS ARE
FOLLOWED WHEN FIRST USING THIS MODEL IQ20 DRYER.
M43-31339 REV B
Operation & Installation Manual
See Warranty Statement attached.
