Instruction for Drive Tension Device 22-CT70
WARNING: It is imperative that the drive tension device for bead chain/cord loop be properly secured to the wall
or window frame to reduce a child's access to the bead chain/cord loop. Young children can wrap bead chain/cord
loops around their necks and strangle. Always keep loops secured and out of the reach of children.
Note to Manufacturer or Fabricator: The shade will not operate properly unless the drive tension device is
secured to comply with ANSI/WCMA standard section 6.5.2.

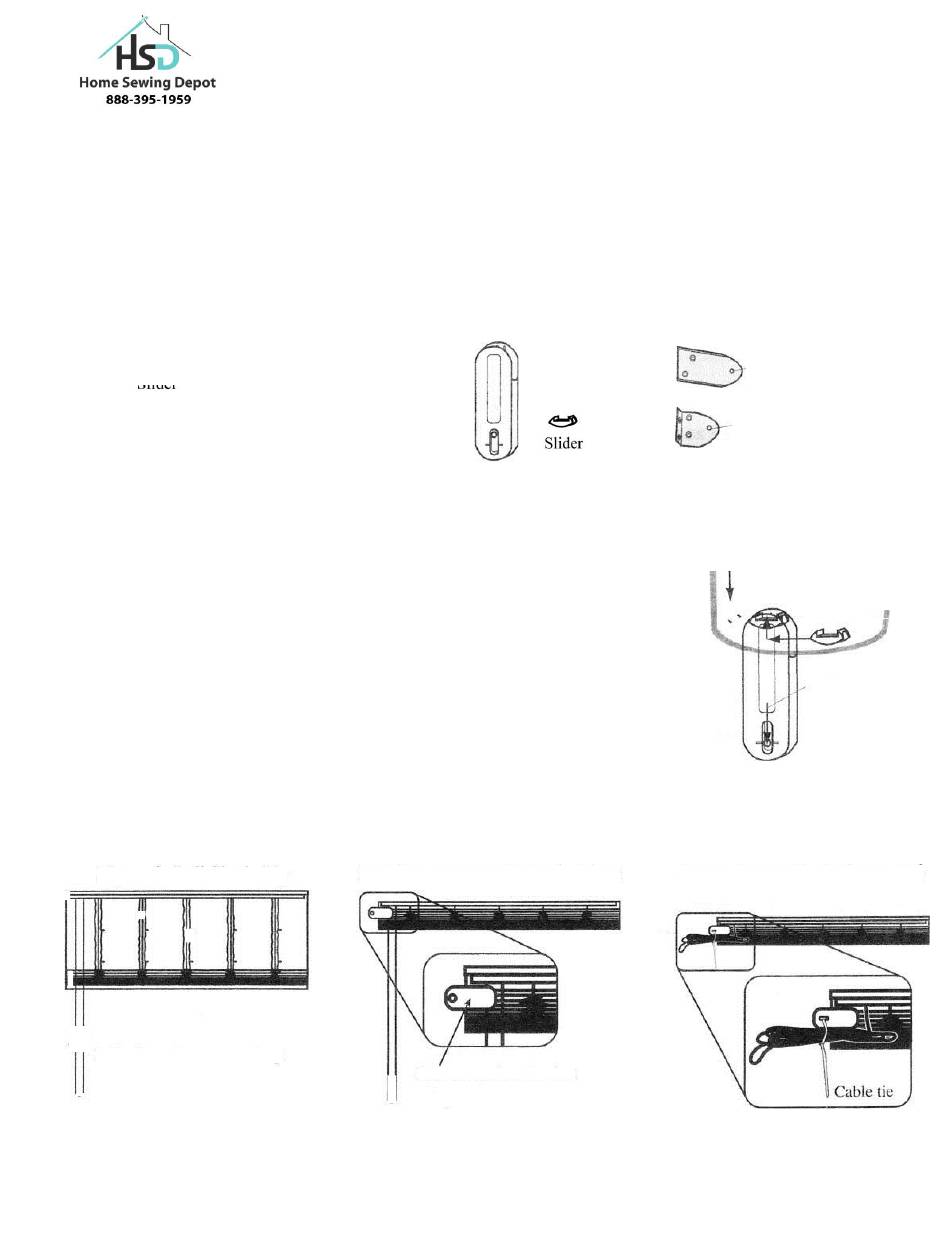

Part List (see Figure 1)

1. one assembled device
2. one slider
3. two brackets: one for inside
mount and one for outside mount
4. one 1/2 inch long #4 wood screw and
two 1 1/2 inch long #6 wood screws
5. one cable tie (not show)
6. instructions

Attach Device to Bead Chain or Cord Loop (see Figure 2)

Drop the bead chain or cord loop in the device. While pulling the screw
hole part down, insert the slider from the side into the center of device and
push up, into place. Now the device is attached to the loop. The device can
easily move along the loop by pulling down the screw hole.
Note to Shade Fabricators to Comply with ANSI/WCMA Standard,
Section .6.5.1.
Pull either side of the drive loop as shown in Figure 3 until the shade is
lifted completely up to the headrail. Using the specific side of the drive
loop that was pulled to raise the shade, attach the device as described
above. While pulling down on the screw hole of the device, slide the
device up as close as possible to the headrail as shown in Figure 4. Route a
cable tie through the oval shaped hole on the device and completely around
the bundled up drive chain or cord loop, and tighten the cable tie securely
as shown in Fiugre 5.
Figure 3. Pull Shade Up
S
V I
, •
i i i
1 1
Pull either side of drive loop
• • •
11/24/10
Drive Tension
Device
Figure 4. Put the Device in Place
L
Drive tension device
1/2
Figure 1. Parts
—Nub
Inside Mount Bracket
- Nub
Outside Mount Bracket
Figure 2. Attach Device to Loop
Drop the loop into
the device
Put the
slider in
Pulling down
the screw hole
part
Figure 5. Bundle the Loop and
the Device with a Cable Tie
#4 wood screw
#6 wood screw
Patent Pending
